Bluetooth Optical Probe
Product ID: TP-BT-PLUS
The TP-BT-PLUS Bluetooth optical probe is a Tespro device created to be easy to use and convenient to speak with the meter, as well as communicate with the meter in both Classic and Bluetooth Low Energy. Constructed using a low-power Chip set, it also has a high battery performance and is quick to charge through a Type-C connection.
-
Baud rate
300-115200bps
-
Bluetooth
BLE and SPP dual-mode
-
Time
~60 Hours Working、~1 Year Standby
-
Charging
30 mins-2C PD Fast Charge
Get Free Quote Now
Datasheet Download
TP-BT-Plus Bluetooth Optical Probe Video
Features
Product Introduction
The TP-BT-PLUS Bluetooth optical probe by Tespro is created to efficiently and extensively communicate with meters, and uses both Classic Bluetooth and Bluetooth Low Energy. It is based on a low-power Chip set and has a long battery life and rapid charging through a Type-C interface. Its IP54 protection and LED indicator as well as the ability to update via Bluetooth makes it reliable in its work under different conditions.

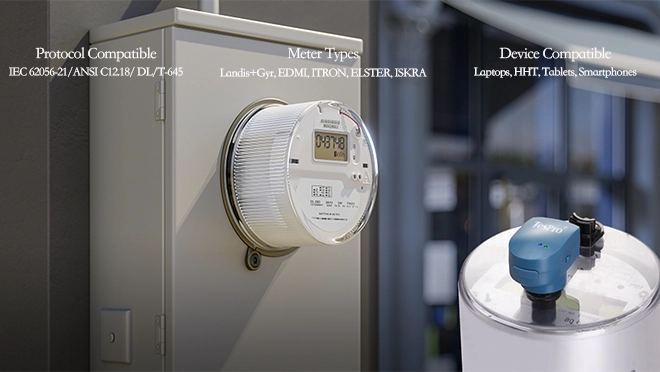

Strong Compatibility
It is highly compatible, which is why it is completely compatible with various types of protocols, and it is compatible with all types and types of devices.
Long Communication Endurance
It boasts of long communication life with a 3.7 V / 800 mAh long-life rechargeable lithium battery, and it can read 6000 meters without recharging.
Fast Charging
The meter reading Bluetooth optical probe has high compatibility, long life, and quick charging facility that enables you to use the device wherever and whenever you like.
Excellent Performance in Harsh Environment
It uses the highest standard of enclosure material, silicone protection, full set of accessories, and a safety straps holder that eliminates cases of accidents due to falls. It also features an IP65 waterproofing capacity, is constructed out of tough and sturdy material of ABS + PC, and can be operated in a range of -40degC to +70degC.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Communication | Communication Interface | BLE and SPP dual-mode |
| Supported Standard | IEC-62056,ANSI,and DLT-645 protocols, fiting global meter standards |
|
| Computer Communication Port | Type C-USB 3.0/OTG | |
| Maximum Data Rate | 57600 in normal and max.115200 available | |
| USB Connection Optical Probe | Supported(Add Data Cable) | |
| Transparent Communication Mode | IEC62056-21 Mode C/Mode E/User Mode | |
| Smart Communication Mode | There is (IEC 62056-21 Mode C / Mode E) | |
| Maximum Frame Length | 512 bytes | |
| Firmware And Configuration Update | OTA | |
| Automatic Meter Reading(AMR) | Support | |
| Power & Battery | Battery Feature | 800 mAh(Optional) |
| Battery Charging Time | Max 100 hours | |
| Working Days | ~ 60 Hours | |
| Standby Time | ~1 Year | |
| Auto power-off | Default auto power-off after 5 minutes (adjustable) | |
| Hardware & Controls | Sensor Light Wave Length | ~ 900 nm |
| Number Of Keys | 2 Keys(Power and reading) | |
| LED Indicators | 5 LEDS(Power/Communication/Charg/BLE/Reading) | |
| LED Flashlight | Yes(Include) | |
| MagnetHolding Power | N40/N52(Optional) | |
| Mechanical & Enclosure | Width &Height | 31,5 mm/33,5 mm |
| Weight | 65gr | |
| Enclosure Material | PC | |
| Silicone Protection | Yes(Included) | |
| Environmental | Working Environment | -40℃ ~+70℃ |
| Physical Specifications | Protection Class | IP 65 |
| Accessory | Safety Strap | Yes(Included) |

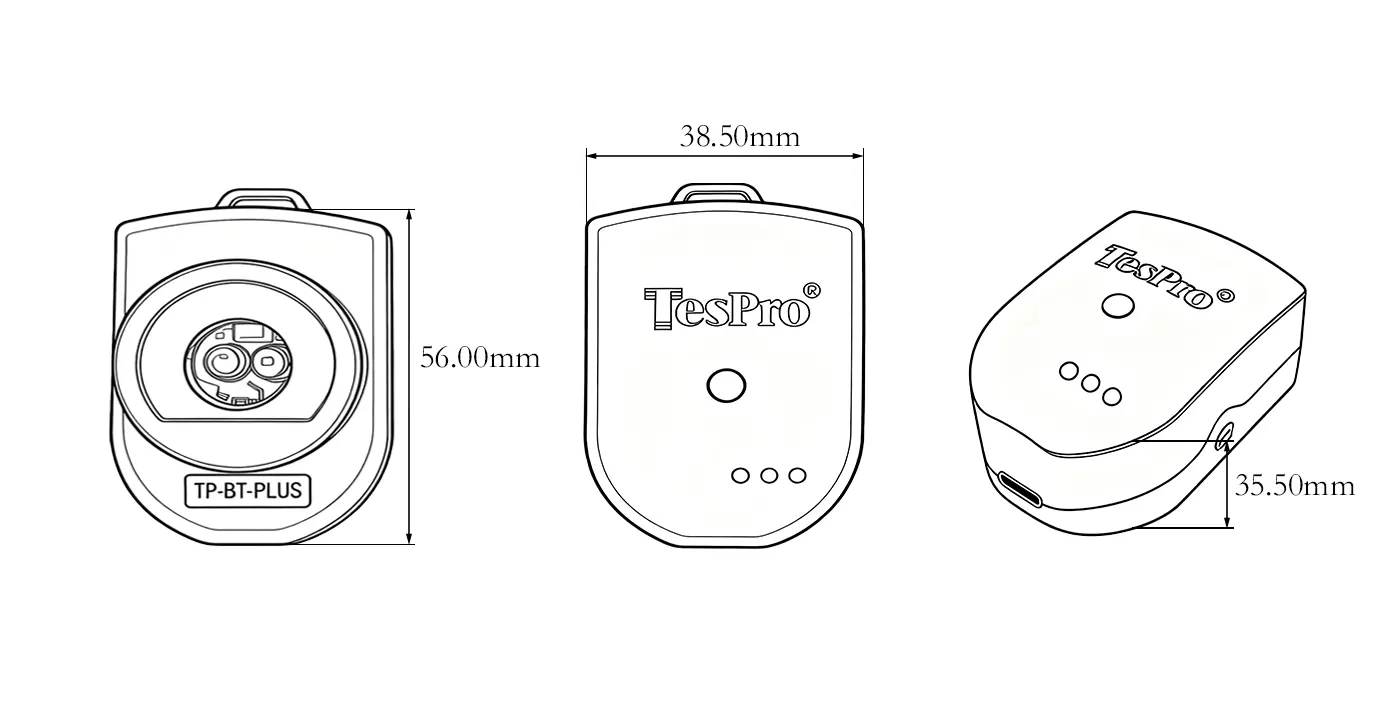

Product Dimensions
Explore our Solutions
Reliable Optical Communication for Smart Metering
The modern AMI systems need to have reliable and consistent data capture at the meter level. Reading of meter was slow and prone to errors.
The optical probes of Tespro such as the TP-BT and USB series allowed automatic retrieval of data through the optical ports and were compatible with a wide range of meter brands and protocols. Bluetooth and USB models were flexible both in the field and desktop.
Case
Product Case
One of the largest Southeast Asian utility companies, based in Malaysia, Singapore, and Philippines, had to deal with such challenges as the disjointed meter standards, the lack of effectiveness in in-premises data collection and the necessity to create system integration that is more specific to particular needs, which impeded smart energy management.
The company sought a flexible, developer-friendly solution to bring together its multi-type meter network and develop a customized energy monitoring platform that can serve the different regional requirements and simplify field operations.
It was finally broken with the TP-BT-Plus Bluetooth optical probe by Tespro which is a versatile and customizable one. It has BLE 5.4+SPP two-way communication, and it can operate with various international protocols, hence it is compatible with the electricity, water, and gas meters of the client.
Its advantage is in its full BLE SDK and OTA SDK packages which enable the development team of the client to implement the features of the probe in their App and energy management system under the shortest time possible.
The utility provider was impressed with the adaptability and customer service, which saw it eventually buy 6,300 TP-BT-Plus probes in order to use them in residential zones, business districts and industrial parks.
The duplicated key design of the probes enabled technicians to record single-meter data in 1.8 seconds, and 32 automatically stored Task Obis lists were recorded to identify automatic meter types and protocol matching, which eliminated manual input errors.
Such cooperation demonstrates the usefulness of the TP-BT-Plus. Customized energy management is possible due to its developer-friendly architecture and the possibility to adapt to a variety of situations
