Bluetooth Optical Probe
Product ID: TP-BT-PRO
TP-BT-Pro Wireless Optical Probe is a new model of Tespro China optical family, which is capable of supporting Bluetooth communications with Mobile Phone, PDA, PC and other devices.TP-BT-Pro has unique functions which can be utilized as two.
-
Baud rate
300-115200bps
-
Bluetooth
Bluetooth 5.0 BLE
-
Time
~60 Hours Working、~1 Year Standby
-
Charging
30Min-Type-C(Supported PD Fast Charge)
Get Free Quote Now
Datasheet Download
TP-BT-Pro Wireless Optical Probe Video
The video TP-BT-Pro Wireless Optical Probe accentuates quick Bluetooth connection, improved signal strength, safe data reading, multi-meter, and capability to be used in the field by the technicians of the smart meter.
Features
Product Introduction
TP-BT-Pro is a new series of Tespro China optical family, which is capable of supporting Bluetooth communications with the Mobile Phone,PDA,PC and other devices.TP-BT-Pro has its own peculiarities and features designed TP-BT-Pro designed as two BLuetooth optical probe can perform both Bluetooth optical probe as well as regular Tespro USB connection optical probe.
Strong Compatibility
It is highly compatible, as it is entirely compatible with various types of protocols, is compatible with all types of devices, and all brands and types of meters.
Long Communication Enduranc
It has an extended communication range with a 3.7 V / 800 mAh long-life rechargeable lithium battery and a meter reading capacity of 6000 meters with no-recharge.
Fast Charging
The bluetooth meter reading optical probe has a high compatibility rate, high durability and rapid charging capability and this enables you to use it anywhere and anytime you wish to.
Excellent Performance in Harsh Environment
It embraces an enclosure material of the highest level, is silicone-covered, includes a complete set of accessories, and a safety strap holder to avoid possible falls. It also has an IP65 waterproofing, is composed of a strong and trustworthy ABS + PC material, and can operate in a range of temperatures, between -40 o C to +70 o C. Smart Metering over Reliable Optical Communication.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Communication | Communication Interface | Bluetooth 5.0 BLE |
| Supported Standard | IEC 62056-21 / ANSI / ANSI-Type2 / DL / T-645 | |
| Computer Communication Port | USB 3.0 / Type-C / USB-OTG | |
| Maximum Data Rate | 115200bps | |
| USB Connection Optical Probe | Supported(Add Data Cable) | |
| Transparent Communication Mode | IEC 62056-21 Mode C / Mode E / User Mode ANSI C12.18 / ANSI C12.18-2006 type2 |
|
| Smart Communication Mode | There is (IEC 62056-21 Mode C / Mode E) | |
| Maximum Frame Length(MTU) | 2048 bytes | |
| Firmware And Configuration Update | Yes (with USB or Bluetooth ) | |
| Power & Battery | Battery Feature | 3.7 V / 800 mAh |
| Battery Charging Time | 30Min-Type-C(Supported PD Fast Charge) | |
| Working Days | ~ 60 Hours | |
| Standby Time | ~ 1 Year | |
| Hardware & Controls | Sensor Light Wave Length | ~ 900 nm |
| Number Of Keys | 1 Keys (Power) | |
| LED Indicators | 4 LEDs(Power/Bluetooth Rx/Tx/Charge) | |
| Magnet Holding Power | N40 / N52 (Optional ) | |
| Mechanical & Enclosure | Width & Height | 31,5 mm/ 33,5 mm |
| Weight | 65 gr | |
| Enclosure Material | PC | |
| Silicone Protection | Yes ( Included ) | |
| Environmental | Working Environment | -40℃ ~+70℃ |
| Physical Specifications | Protection Class | IP 65 |
| Accessory | Safety Strap | Yes ( Included ) |

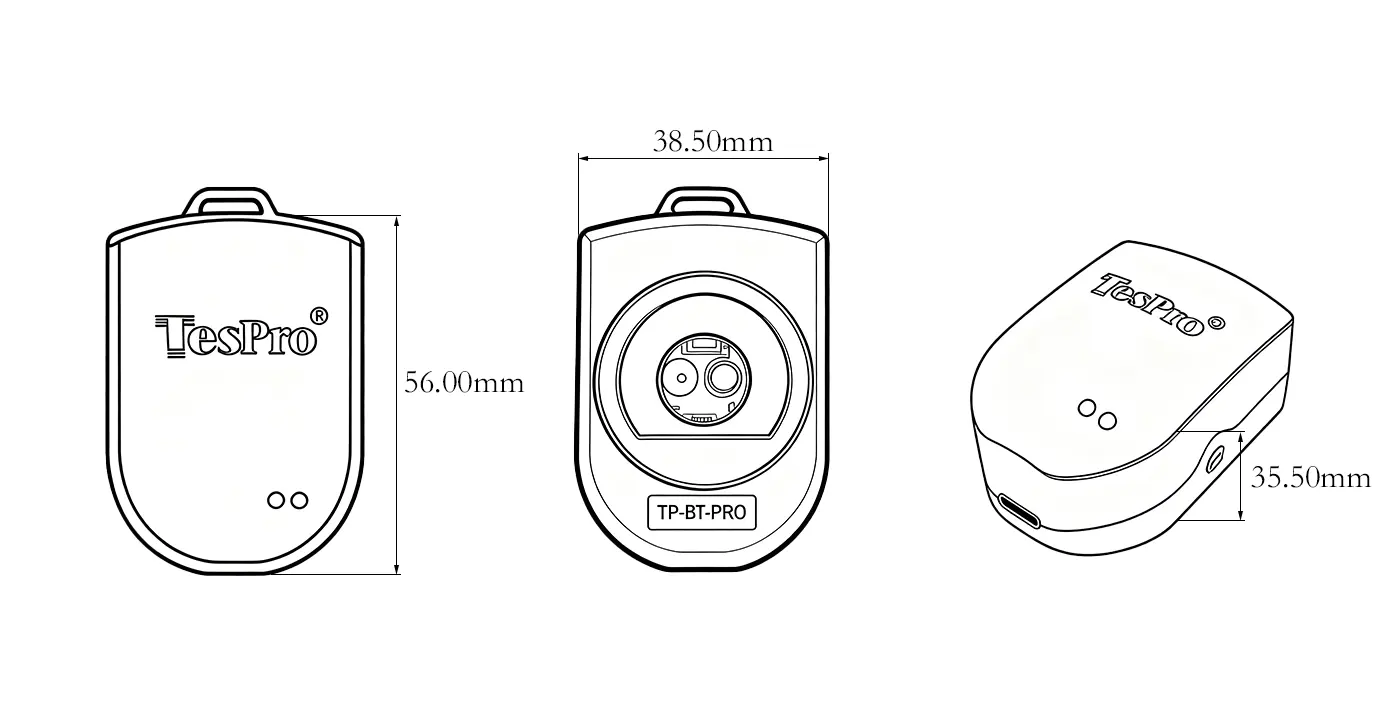

Product Dimensions
Explore our Solutions
Reliable Optical Communication for Smart Metering
The contemporary AMI systems need reliable and correct data recording at meter level. Meter reading had to be done manually and was time consuming and subject to error.
The optical probes offered by Tespro, such as TP-BT and USB series, supported multiple meter brands and protocols and made it possible to automatically retrieve data through optical ports. Bluetooth and USB models were flexible to use both on the field and desktop models.
Case
Product Case
An Indian leading power utility firm has directly contracted the 5,000 TP-BT-Pro Bluetooth optical probes of Tespro. Installed in 12 states that encompass urban residential complexes, commercial hubs, and industrial zones the probes simplify the process of collecting electricity, water and gas meters data of more than 2 million end-users.
The TP-BT-Pro is compatible with BLE 5.4+SPP dual-mode communication and global protocols such as IEC 62056-21, ANSI and DL/T-645 and is therefore compatible with most of the meter models employed by our users. Its 115200bps maximum data rate and its maximum frame length of 512 -bytes can facilitate fast batch data capture to facilitate an easy method of data management to its clients. The "short read/long read" dual key design enables the technicians to accomplish single-meter data capture within a short time of only 2 seconds - eliminating manual tedious input, and greatly enhancing efficiency within the daily operations of our customers.
The results were also transformative in the client, who, after deployment, saw a drastic improvement in meter reading, data accuracy was at an all-time high, and operation costs were also lowered considerably.
In the TP-BT-Pro, the fieldwork of technicians was transformed, since there was no need to carry laptops and paperwork, the information automatically and instantly connected wirelessly to the backend system. The client praised TP-BT-Pro as one of the key tools to smart metering, as it has the ability to gather data quickly and does not need a lot of upkeep.
TesPro provided custom SDK support and on-site training to make it easy to integrate with the energy management system of the client. The partnership will demonstrate the utility-scale scalability of the TP-BT-Pro and establish our presence as a market leader in the smart metering sector.
