Industrial Cellular Router
Product ID: TR-345

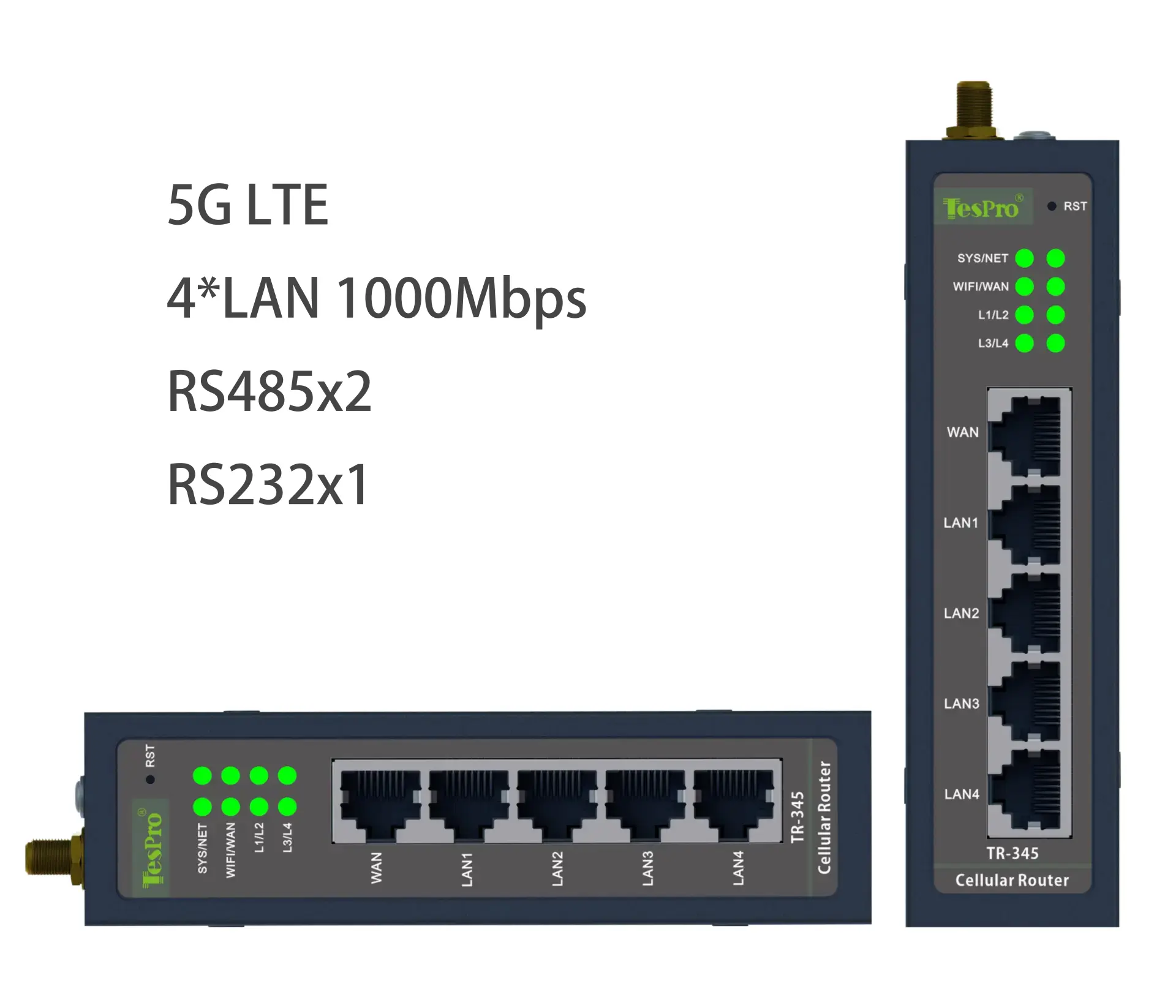

TR-345 Industrial Network Router is an industrial roughened cellular router that is created with an industrial safety, broad temperature, broad voltage range, etc. It is able to develop effortlessly a faster and sustainable cellular transmission network.
-
Network
5G LTE+4*LAN 1000Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40°C~75°C
-
Power
12-36V
Get Free Quote Now
Download
TR-345 Industrial Network Router Video
The video TR-345 Industrial Network Router shows how to secure the data transmission, solid industrial design, stable connection, and stable remote networking to smart automation, IoT framework, and field work.
Features
Product Introduction

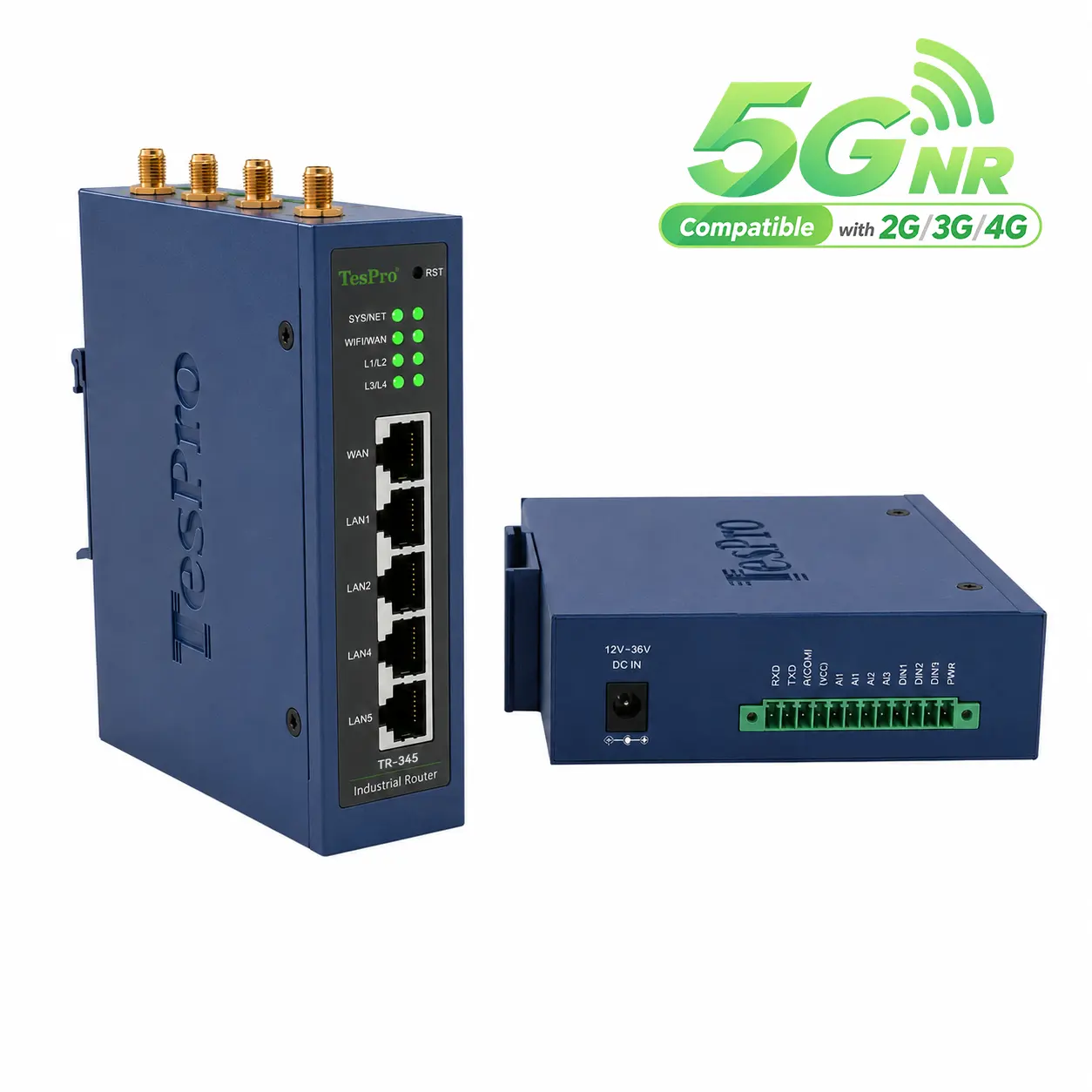

TR-345 is a cellular router industrial grade which is having industrial grade protection, large temperature range, extensive voltage range etc. It can simply develop a high speed and a stable cellular transmission network. Offer cellular long-distance data delivery to clients in public LTE networks (or VPDN proprietary networks).
It possesses the property of high universalities, standardised interfaces, extensive areas of application, consistent performance as well as suitability to complex environments. It is applicable in a large scale in industrial Internet, intelligent transportation, robots and other industries across the globe.
Comprehensive Network Redundancy
Guarantees continuous connection to 4G full - band, WiFi 802.11n (Up to 300Mbps), dual SIM standby, triple backup switching (wired/WiFi/4G) and 5 auto - adaptive 100Mbps Ethernet ports.
Dual - path Wide - voltage Power Supply
The input is DC 5 - 30V wide range, has two power supply options (DC jack and terminal) in case of redundancy, and is compatible with complex industrial power conditions, with current consumption under 400mA.
Industrial - grade Installation Design
It is small (93x118x24mm without antenna) and is mounted on the DIN rail, therefore it is easy to install in the industry setups without taking up much space.
Excellent Performance in Harsh Environment
Stable temperature range -20 to 75 (storage -40 to 80), 5 -95 non -condensing humidity, and can tolerate high intensity industrial conditions.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Basic Information | Power supply | DC power supply : 12-36V |
| Cellular Interface | IEEE 802.11 a/b/g/n/ac | |
| Operating frequency band | 2.4G:2.4-2.4835GHz 5G:5.180-5.885GHz | |
| Main chip | MTK series | |
| Antenna | SMA external rotation inner hole | |
| WIFI transmission rate | 7628：300Mbps 7621：1200Mbps |
|
| External interface | LAN ports: 5 100Mbps Ethernet ports (LAN0 is WAN/LAN adaptive) SIM card slot: double-layer Antenna interface: 4 Indicator lights: 8 DC power supply interface: 1 (DC2.1) Reset button: 1 4G LTE+2*LAN 100Mbps 1*RS485;1*RS232 |
|
| Overall dimensions | Length, width, and height: 116 * 134 * 34mm (antenna interface) | |
| Power consumption (current) | Less than 400mA | |
| Data Information | Data rate | 802.11n: up to 300Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Output Power | Transmit power | 11n HT40 MCS7 : +13.5dBm 11b CCK: +18 dBm 11g OFDM: +13.5dBm |
| Receiving sensitivity | -66dBm at 150Mpbs -73dBm at 54Mpbs -86dBm at 11Mpbs |
|
| Temperature & Humidity Range | Working environment | Working temperature: -40 ° C~+75 ° C Storage temperature: -40 ° C~+80° C Humidity: 5%~95%, no condensation |
| Functions | Electric Meter Protocols | DL/T 645-2007, IEC 62056-21,IEC 1107, IEC 61850,DLMS |
| Industrial Protocols | MODBUS RTU, MODBUS TCP, BACnet, M-bus, OPC UA |
Product Dimensions
Explore our Solutions
Smart Metering Communication Solutions
Providing multi-protocol optical acquisition products in steady and efficient communication of data in a variety of metering requirements.
Case
Product Case
A local utility company was facing fragmented data collection of energy in its network of substations and commercial customers. Technicians had to rely on manual and physical on-site logging using laptops, which meant delays in accessing data, as well as difficulties in consolidating insight to use in resource planning.
The TR-345 Industrial Router responded to them in a smooth manner. Its 4G/5G cellular enabled remote transmission of data in the form of energy meters and sensors without necessarily having to be on the spot using the laptops.
Featuring flexible LAN, RS485 and RS232 interfaces, it was easily adapted to the devices already in use, and two core processing guaranteed the steady data flow in real time. The provider has now centralized the energy information that provides a clear actionable insight.
Technicians no longer have to spend time on putting in tedious logging data but can instead concentrate on maintenance and optimization where the industrial reliability of the router provides a continuous data capture- a major asset to the energy management system of the provider.
