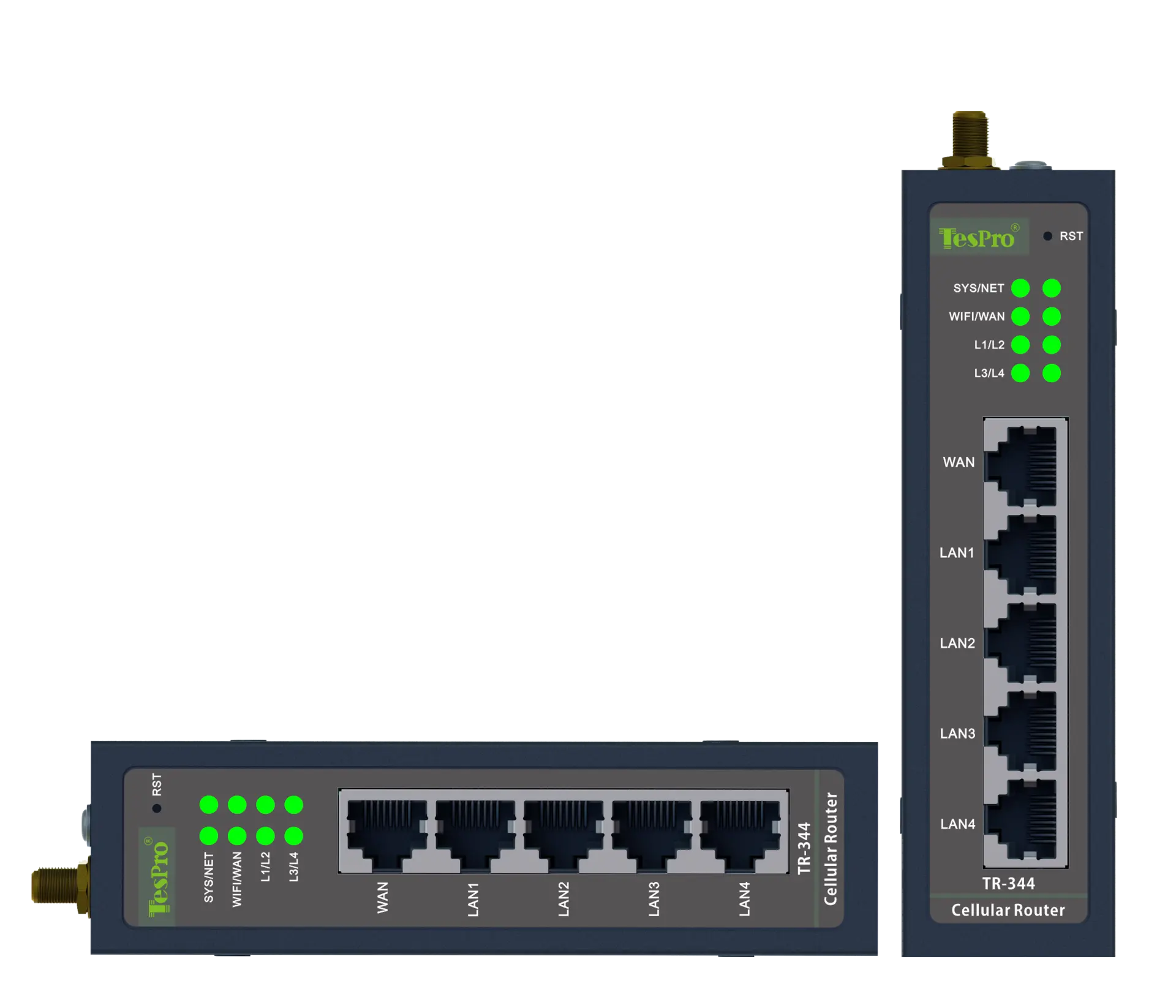

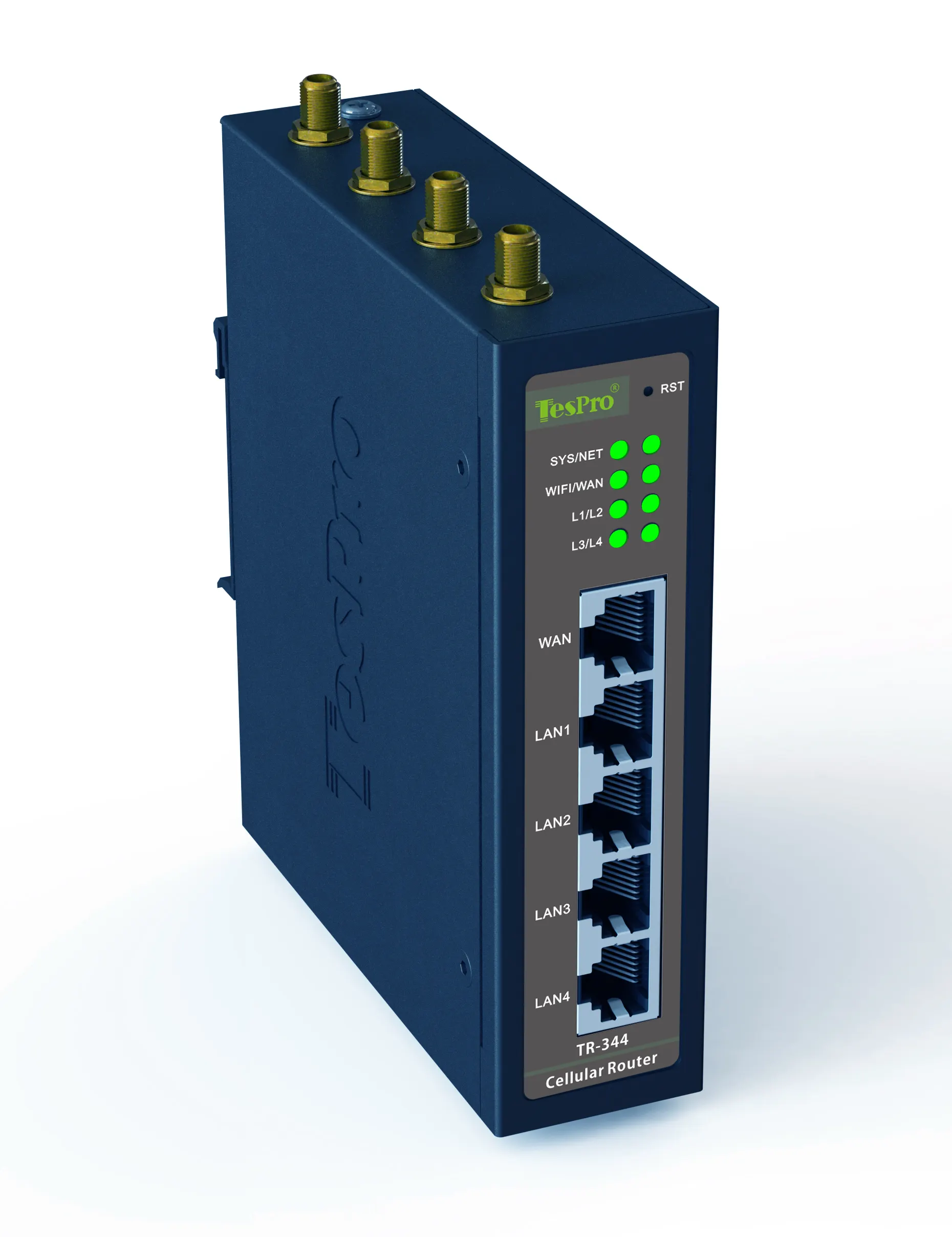

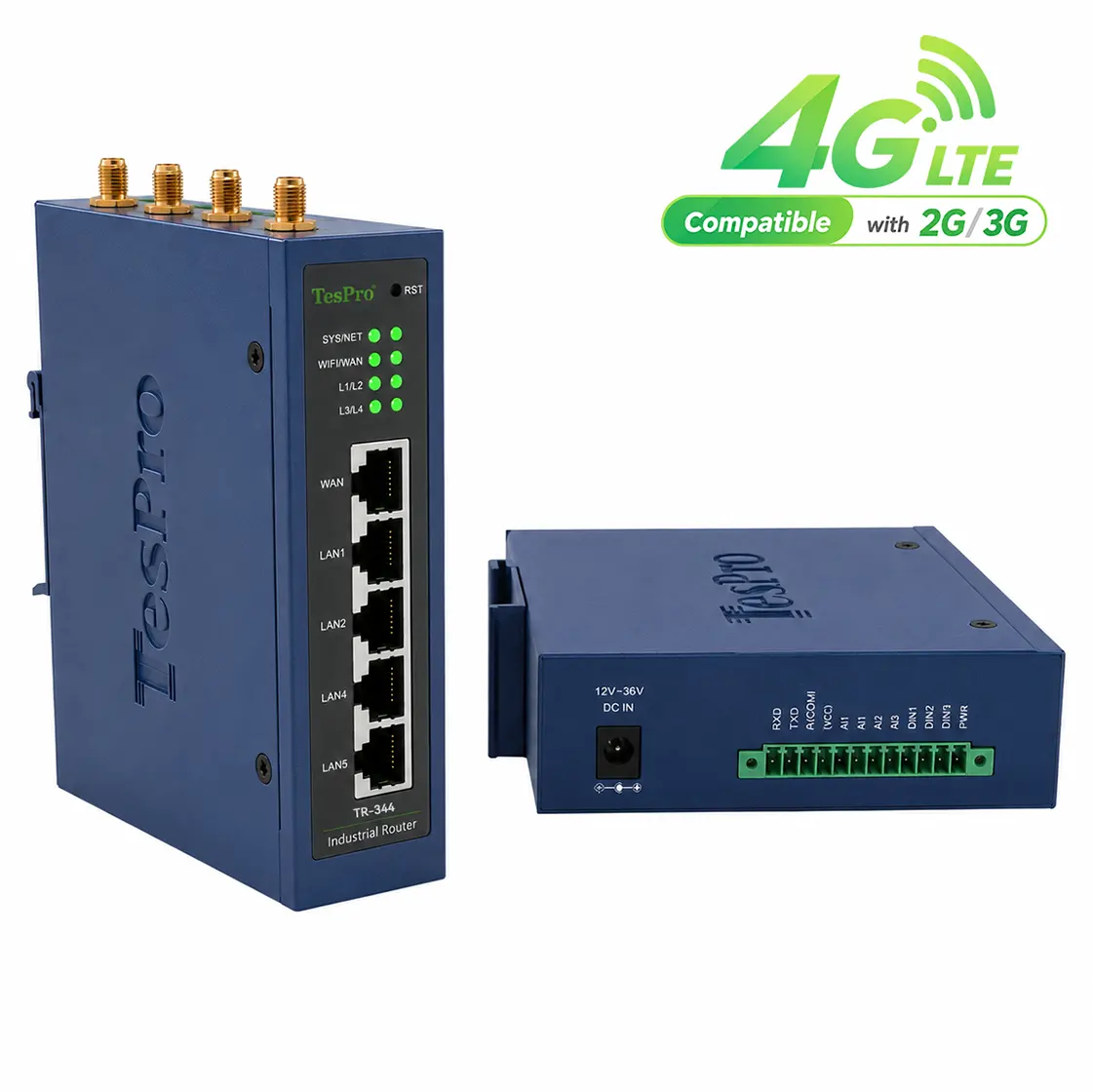

Industrial Cellular Router
Product ID: TR-344
TR-344 Industrial LTE Router is an industrial cellular router that is rendered with industrial grade protection, wide temperature range, wide voltage range and so on. It is able to construct a high speed and reliable cellular network of transmission easily.
-

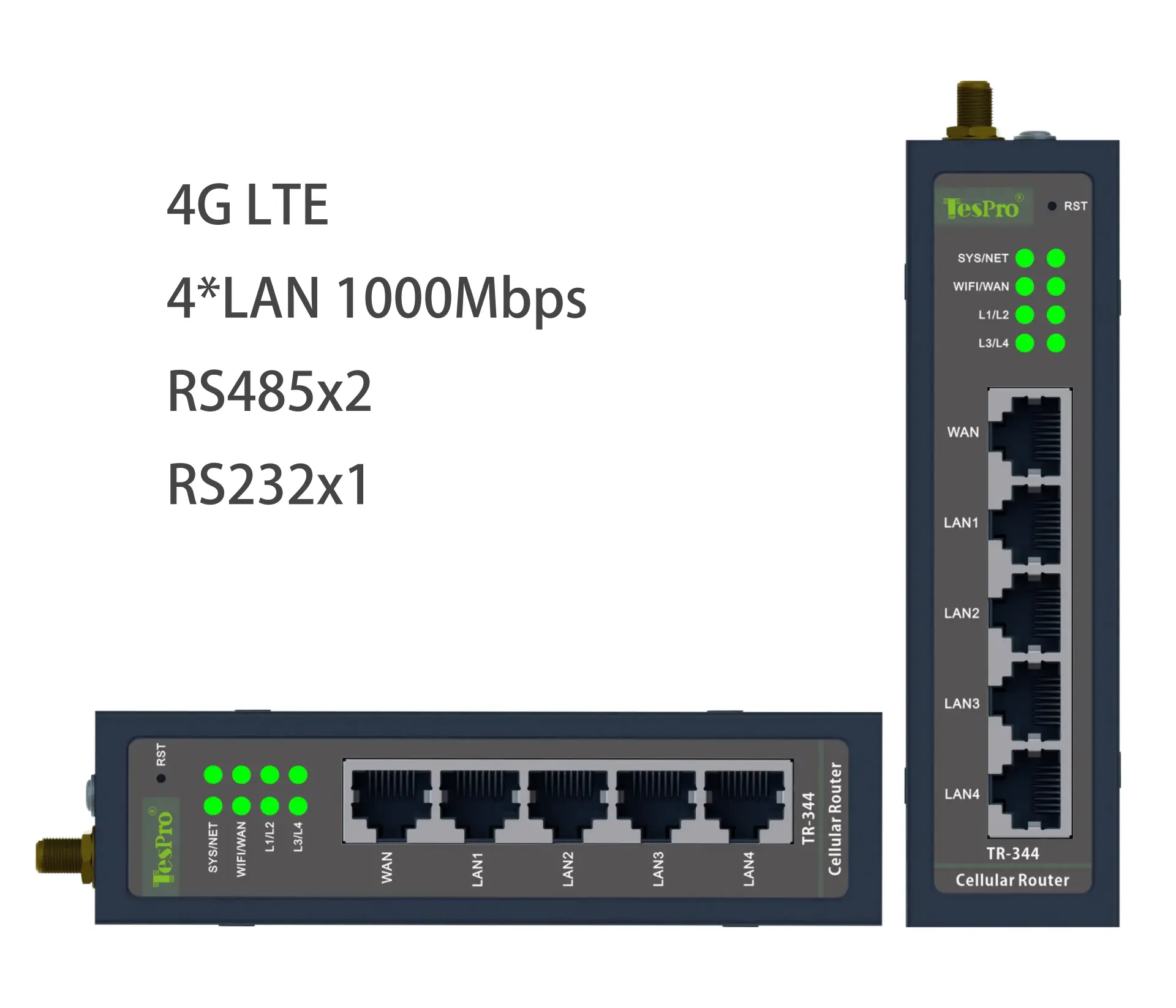

Network
4G LTE+4*LAN 1000Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40°C~75°C
-
Power
12-36V
Get Free Quote Now
Download
TR-344 Industrial LTE Router Video
The TR-344 Industrial LTE Router demonstrates reliable 4G/LTE connectivity, industrial durability, secure networking and reliable remote connectivity to automate, smart IoT devices and field deployments.
Features
Product Introduction
TR-344 is a industrial grade cellular router, which has industrial grade protection, wide temperature, wide voltage, etc. It can develop a cellular transmission network that is high speed and steady with ease. Offer cellular long-distance data transmission to subscribers over public LTE networks (or VPDN proprietary networks).
It possesses the features of great generality, standard interfaces, extensive usage industries, predictable performance, and competence to use in complicated conditions. It can be popularized in other industrial worlds in many areas of the Internet, intelligent transportation, robots and other industries.
Comprehensive Network Redundancy
It has guaranteed continuous connectivity of 4G full - band WiFi 802.11n (up to 300Mbps) dual SIM standby, triple backup switching (wired/WiFi/4G) and 5 auto - adaptive 100Mbps Ethernet ports.
Dual - path Wide - voltage Power Supply
Has DC 5 - 30V wide - range input, two power supply choices (DC jack and terminal) as a redundancy, as well as acceptable in complex power industrial conditions and consumes less than 400mA of current.
Industrial - grade Installation Design
It is small in size, (93x118x24mm without antenna) and is mounted to the DIN rail, which makes it simple to install in an industrial system, and is also space-saving.
Excellent Performance in Harsh Environment
Operates stably between -20 and 75 (storage: -40 to 80) and 5 - 95% non - condensing humidity, can be used in harsh industrial environments.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Basic Information | Power supply | DC power supply : 12-36V |
| Cellular Interface | IEEE 802.11 a/b/g/n/ac | |
| Operating frequency band | 2.4G:2.4-2.4835GHz 5G:5.180-5.885GHz | |
| Main chip | MTK series | |
| Antenna | SMA external rotation inner hole | |
| WIFI transmission rate | 7628：300Mbps 7621：1200Mbps |
|

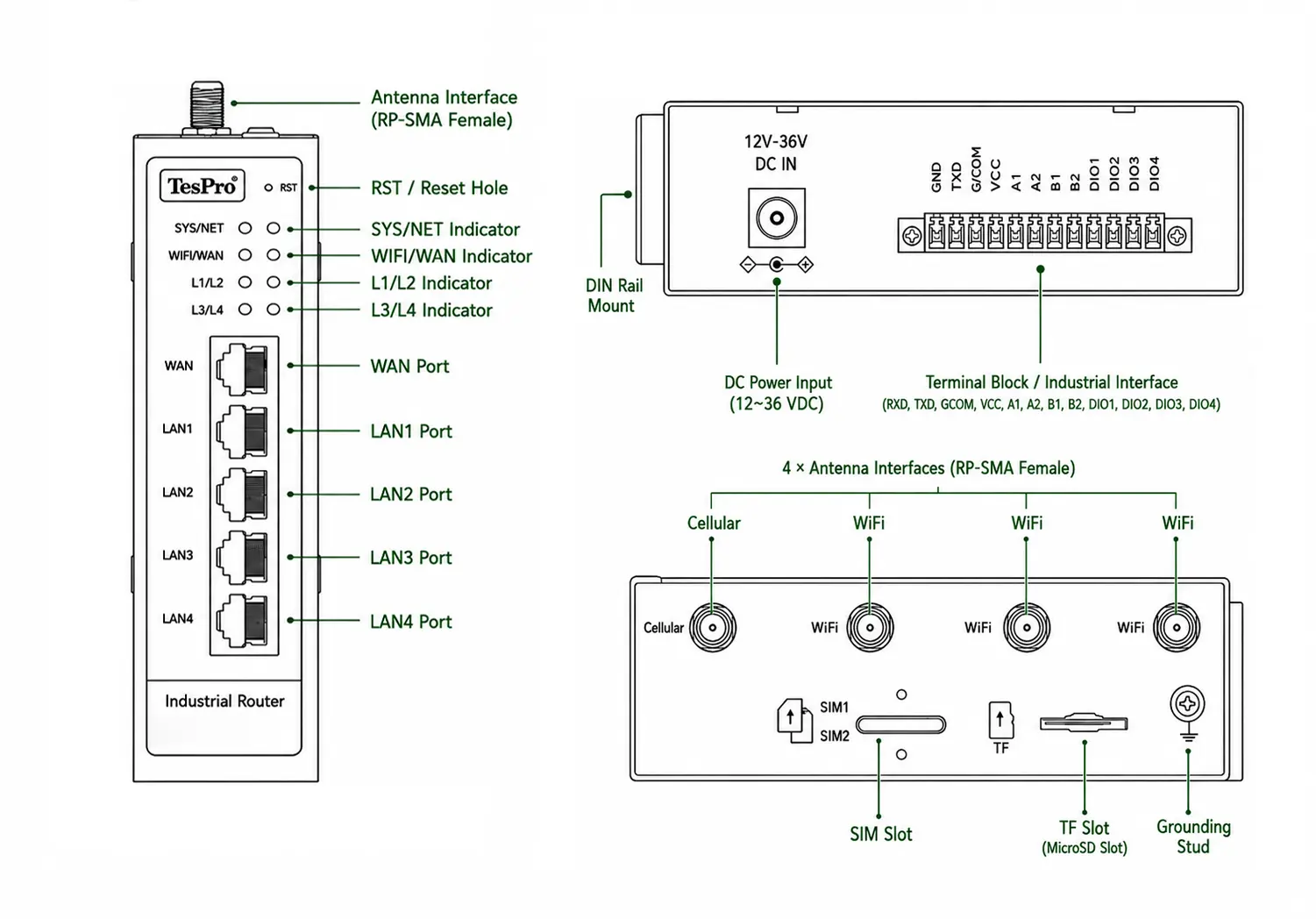

| External interface | LAN ports: 5 100Mbps Ethernet ports (LAN0 is WAN/LAN adaptive) SIM card slot: double-layer Antenna interface: 4 Indicator lights: 8 DC power supply interface: 1 (DC2.1) Reset button: 1 4G LTE+2*LAN 100Mbps 1*RS485;1*RS232 |
|
| Overall dimensions | Length, width, and height: 116 * 134 * 34mm (antenna interface) | |
| Power consumption (current) | Less than 400mA | |
| Data Information | Data rate | 802.11n: up to 300Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Output Power | Transmit power | 11n HT40 MCS7 : +13.5dBm 11b CCK: +18 dBm 11g OFDM: +13.5dBm |
| Receiving sensitivity | -66dBm at 150Mpbs -73dBm at 54Mpbs -86dBm at 11Mpbs |
|
| Temperature & Humidity Range | Working environment | Working temperature: -40 ° C~+75 ° C Storage temperature: -40 ° C~+80° C Humidity: 5%~95%, no condensation |
| Functions | Electric Meter Protocols | DL/T 645-2007, IEC 62056-21,IEC 1107, IEC 61850,DLMS |
| Industrial Protocols | MODBUS RTU, MODBUS TCP, BACnet, M-bus, OPC UA |

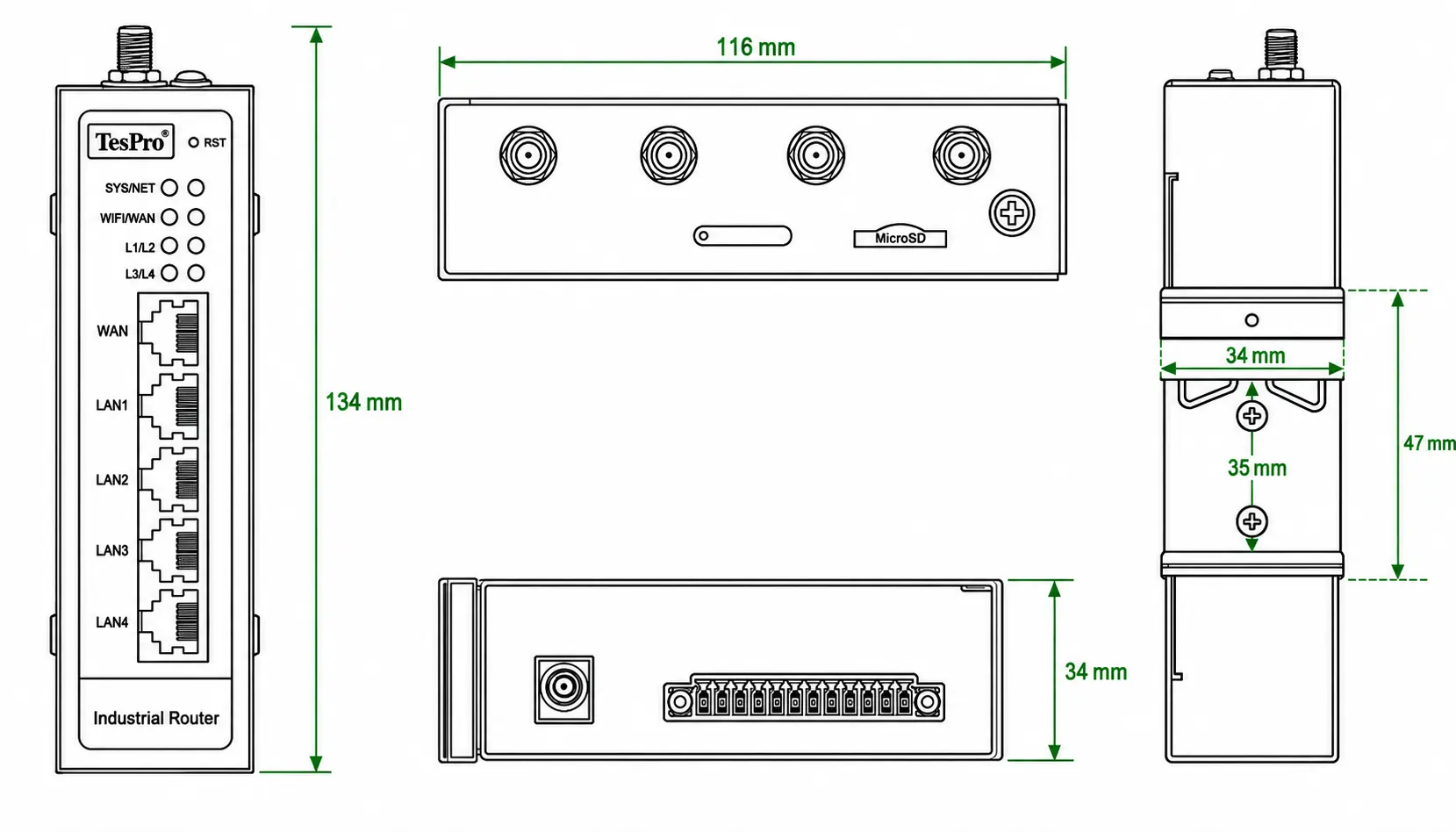

Product Dimensions
Explore our Solutions
Smart Metering Communication Solutions
When it comes to reliable and stable data transmission, providing the multi-protocol optical acquisition products to the wide range of metering requirements.
Case
A European industrial pioneer with scattered manufacturing and energy centers had a challenge in gathering energy data in an inefficient way: technicians used laptops to make on-site records, which led to delays and disjointed data, which could not be easily optimized and reached compliance.
It changed their working process by adopting the TR-344 Industrial Router. Its 4G/5G cellular connection allowed long-range, automatic transmission of data of distributed meters and sensors in real-time, removing on-site work which required a laptop.
The integration with the existing devices was ensured by the compatibility of the router with the main energy protocols (e.g., DL/T 645, IEC 62056) and the flexibility of LAN/RS485 interfaces, and the stability of real-time flows was provided by the dual-core processing.
The energy data is now concentrated in one platform and this will help the team to have holistic and up to date information. Technicians specialize in functions that are critical rather than manual logging, and informed decisions are made based on data and triggers smarter energy consumption and compliance with regulatory policies.
The reliability of the TR-344 at the industrial level has seen it form the backbone of the business energy management strategy.
