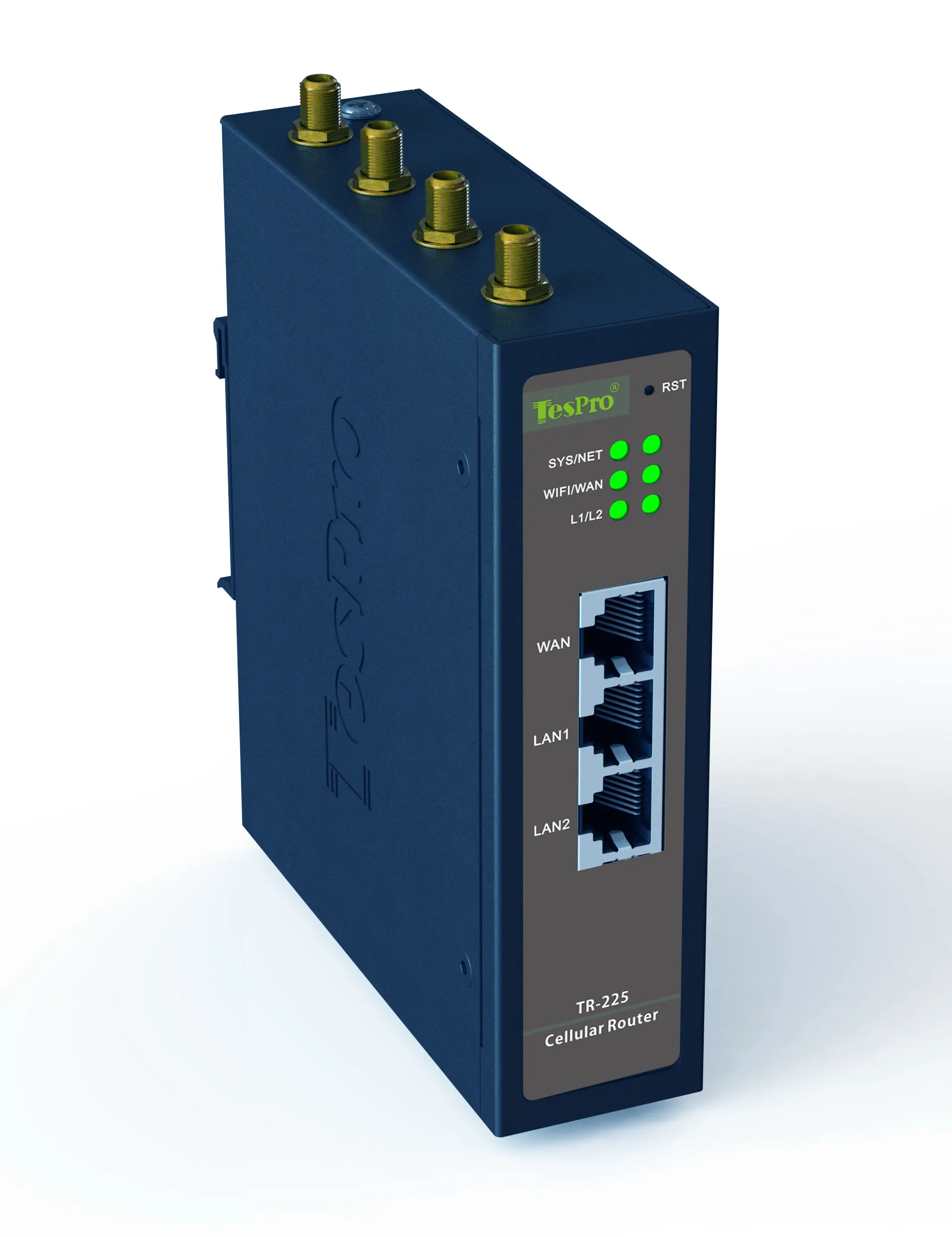

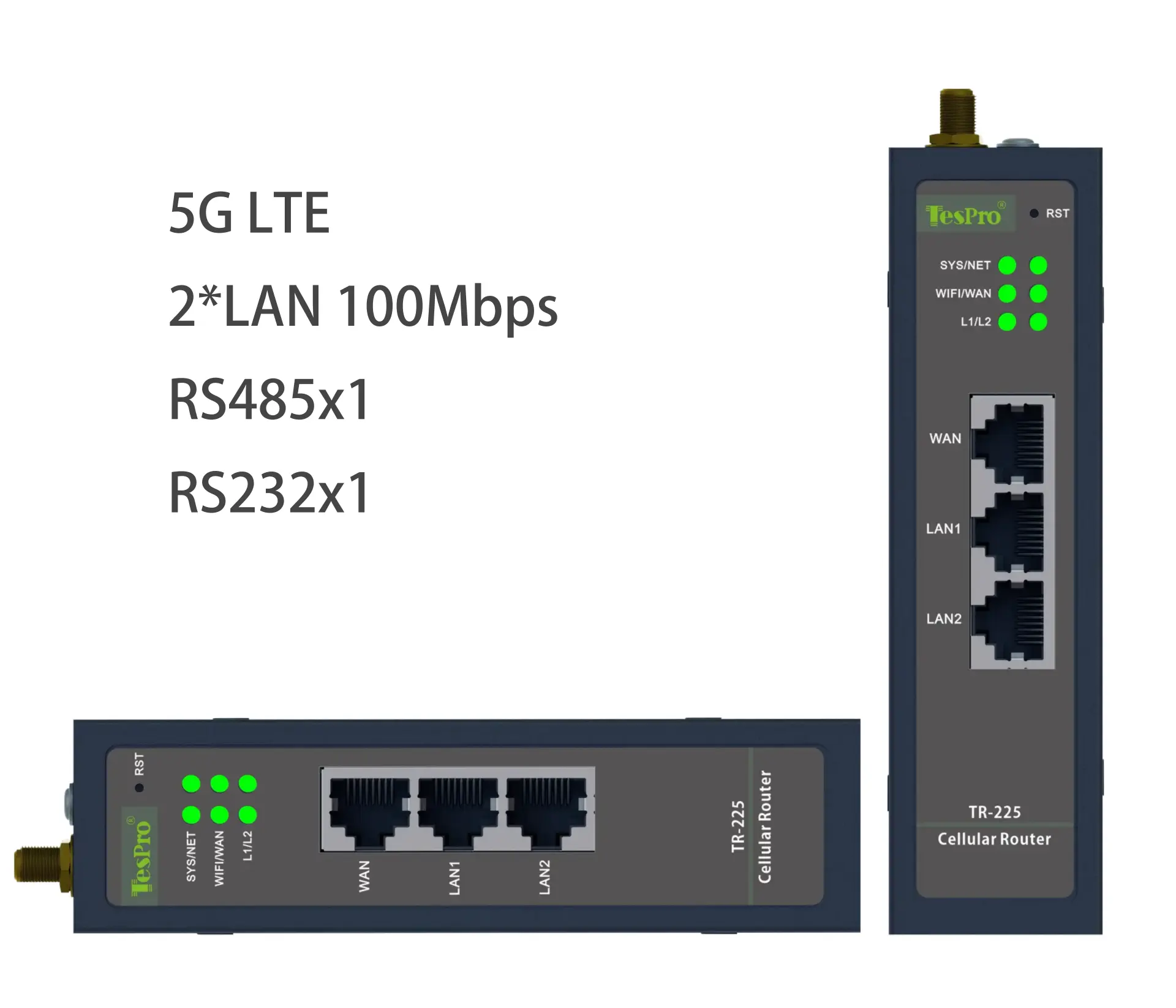

Industrial Cellular Router
Product ID: TR-225
Tespro’s independently developed TR-225 industrial router supports global 2G/3G/4G/5G networks, Fast Ethernet (1*WAN port + 2*LAN ports), and single-band Wi-Fi 4 (2.4GHz). Equipped with 1*RS232 port, 2*RS485 ports, and 4*GPIO interfaces, and supporting Modbus and BACnet protocols, the device provides reliable connectivity for IoT and industrial automation applications.
-
Network
2G / 3G / 4G / 5G
-
Interfaces
1*WAN + 2*LAN 10 / 100Mbps
-
Wi-Fi
Wi-Fi 4 (802.11b/g/n)
-
Serial & I/O
1*RS232 + 2*RS485 + 4*GPIO
Get Free Quote Now
Download
TR-225 Industrial Router Video
Features
Core Advantages
5G/4G/3G/2G & Dual SIM/eSIM
Supports diverse cellular network access (2G/3G/4G/5G), with 4G LTE options including Cat1/Cat4/Cat6, and 5G NR supporting eMBB/RedCap. Equipped with dual SIM and dual eSIM capabilities to enable flexible switching and link backup.
100Mbps Ethernet Interface & Wi-Fi
Equipped with a 100Mbps Ethernet port supporting WAN/LAN auto-sensing and Wi-Fi 4 (2.4 GHz) wireless access, it combines stable wired transmission with convenient wireless connectivity, meeting the needs for industrial equipment networking, data transmission, and on-site network deployment.
Integrated Serial & GPIO Interfaces
An integrated design featuring serial ports (1*RS232 + 2*RS485) and 4*GPIO interfaces facilitates the connection of industrial equipment and enables control of digital (on/off) inputs and outputs.
TesproOS System & Remote O&M
Equipped with the proprietary TesproOS operating system and a visual web-based management dashboard, it enables full-lifecycle device management. It supports real-time cluster status monitoring, remote batch parameter configuration, log diagnostics, and cloud-based OTA firmware upgrades; combined with multi-layer VPN encryption, it facilitates efficient O&M without the need for on-site visits.
Rich Protocol Ecosystem
Integrates northbound cloud protocols (MQTT/OPC UA), industrial fieldbuses (Modbus/ProfiNet), and power/energy protocols (DLT645/IEC61850). Combined with OpenVPN/IPSec encryption and rapid custom protocol development, it simplifies device onboarding for plug-and-play deployment and accelerates OT-IT data convergence.
Excellent Weather Resistance
Supporting a wide operating temperature range of -40°C to +75°C and non-condensing humidity levels of 5% to 95% RH, alongside an IP30 protection rating, it reliably handles complex and harsh industrial environments—including high altitudes, high temperatures, and high pressures—to ensure stable equipment operation.
Tech Specs
Industrial Router Specifications Table
Hardware Specifications
| Category | TR-225 |
| HardwareSystem | |
| CPU | 32-bit single-core processor, 580 MHz clock speed |
| RAM | 128 MB, DDR3 |
| Flash | 32 MB |
| Network Interfaces | |
| Ethernet Ports | 3 x 10 / 100Mbps |
| Cellular Network | 4G LTE: Cat1 / Cat4 / Cat6；5G NR: eMBB/RedCap |
| WAN | 1 x WAN 10 / 100Mbps |
| LAN | 2 x LAN 10 / 100Mbps |
| SIM Slot | Dual SIM / Dual eSIM / 1× SIM + 1× eSIM |
| Antenna | SMA male (external thread, inner hole); Antenna Ports: 4 pcs |
| Physical Interfaces | |
| Grounding Terminal | 1 × Grounding Screw |
| Status Indicators | 6 pcs |
| Reset Button | 1 pc |
| Industrial Interfaces | |
| Serial Ports | 2 x RS485 + 1 x RS232, 3kV high-voltage isolation |
| I/O Interfaces | Supports 4 × I/O; DI/DO configurable |
| Wi-Fi Wireless Network / WLAN | |
| Wi-Fi Frequency | 2.4GHz |
| Protocol Standards | Wi-Fi 4: 802.11b/g/n |
| Max. Transmission Rate | N300 |
| Data Rate | 802.11b/g/n: Up to 300Mbps |
| Transmit Power | 802.11b: 16dBm ±2dBm (11Mbps); 802.11g: 16dBm ±2dBm (54Mbps); 802.11n@2.4GHz: 16dBm ±2dBm (HT20 MCS7); 802.11n@2.4GHz: 16dBm ±2dBm (HT40 MCS7) |
| Transmission Distance | Line-of-sight ≤ 100 meters (actual distance depends on the on-site environment) |
| Power Supply | |
| Power Interface | DC power interface: 1 (DC2.1) |
| Input Voltage Range | DC power supply: 12–36V; supports reverse polarity protection |
| PoE (Optional) | Supports PoE power supply; compatible with IEEE 802.3af / IEEE 802.3at (PoE+) standards |
| Standby Power | 120mA–200mA @12V |
| Operating Power | 150mA–320mA @12V |
| Peak Power | 320mA @12V |
| Environmental Conditions | |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Temperature | -40°C to +80°C |
| Mechanical Specifications | |
| Product Dimensions | 116 × 134 × 34 mm (including antenna connectors) |
| Protection Rating | IP30 |
| Housing | Metal housing |
| Mounting Method | DIN-rail / Wall-mount |
| Cooling Method | Fanless cooling |
| Product Weight | 450 g |
| Reliability | |
| Shock | IEC60068-2-27 |
| Vibration | IEC60068-2-6 |
| Drop | IEC60068-2-32 |
| Certifications and Standards | |
| Regulatory Certification | CE, RoHS |
| EMC Standards | EN 55032; EN 55035; EN IEC 61000-6-3:2021; EN IEC 61000-6-1:2019; EN 301489-1; EN 301489-17; EN 301 489-52 |
| RF Standards | EN300328; EN301893; EN301511; EN301908-1/-2/-13 |
| SAR+Safety | EN50665; EN IEC62368-1 |
| Cyber | EN18031-1; EN18031-2 |
| ESD (Electrostatic Discharge) | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| Burst (EFT) | EN 61000-4-4:2012 |
| Surge | EN 61000-4-5:2014 + A1:2017 (Ethernet ports) |
| Conducted Immunity | EN 61000-4-6:2014 |
| Oscillatory Waves Immunity | EN61000-4-12, level 3 |
| Magnetic Field Immunity | EN61000-4-8, Horizontal/Vertical 400A/m (>level 2) |
Software Specifications
| Category | TR-225 |
| Industrial Protocols and Data Capabilities | |
| Industrial Protocols | Includes Modbus RTU, Modbus TCP, BACnet, Mbus, OPC UA, and various other protocols |
| Modbus | Modbus RTU, Modbus TCP |
| Industrial Device Protocols | ProfiNet, EtherCat, EtherNet (optional) |
| BACnet | BACnet |
| OPC UA | OPC UA |
| Electricity Meter Protocols | DLT 645-2007, IEC 1107, IEC 61850, IEC 62056-21, DLMS |
| DN3 | Supported modes: Station, Outstation; Connection: TCP |
| DLMS/COSEM | DLMS |
| Modbus Custom Registers | Modbus TCP custom register module requests, capable of reading/writing files within the router, extending Modbus TCP client functionality |
| Supported Data Formats | INT/UINT (8/16/32-bit), 32-bit Float, HEX, ASCII; supports MSB/LSB and byte order conversion (ABCD/DCBA/CDAB/BADC) |
| DTU Function | Supports TCP/UDP transparent transmission; supports Modbus RTU to Modbus TCP conversion; supports DCTCP/DCUDP modes |
| Data to Server | HTTP(S)/MQTT/Azure MQTT; multi-source data reporting; min 1s interval; Lua scripting |
| Modbus / MQTT Gateway | Allows sending commands to a Modbus Server via an MQTT Broker and receiving data |
| API / Web API | Supports network Web API; API endpoints for retrieving or changing data |
| Networking Capabilities | |
| Network Access | 2G/3G/4G/5G cellular network (or VPDN private network) |
| Access Authentication | Supports CHAP/PAP authentication |
| LAN Protocols | ARP, Ethernet |
| WAN Protocols | PPP, PPPoE, DHCP; TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE |
| Network Protocols | UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT |
| Routing | Static routing, OSPF dynamic routing |
| NAT | DMZ, NAT, NAT-T, NAT64 (listed under Firewall) |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases; supports wildcard MAC addresses |
| Network Backup / Failover | Wi-Fi WAN, VRRP, and wired connection options; all can be used as automatic failover solutions |
| QoS | Traffic priority queuing based on source/destination, service, protocol, or port; WMM, 802.11 |
| IP Applications | Supports Ping, Traceroute, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| DNS/DDNS | Supports DoH (DNS over HTTPS); multiple DDNS service provider configurations and manual customizatio |
| Wi‑Fi | |
| Wireless Modes | Wi‑Fi 4: 802.11b/g/n; supports Access Point (AP) and Station (STA) modes |
| Wi‑Fi Security | WPA2‑Enterprise/PSK, WPA‑EAP/PSK, WPA3‑SAE/EAP, OWE; AES‑CCMP, TKIP, client separation, EAP‑TLS, 802.11w PMF, etc |
| Maximum Wi‑Fi Clients | Wi‑Fi 4: up to 30 simultaneous connections |
| Hotspot Relay | Forwards the Wi‑Fi hotspot login page to subsequent connected devices (captive portal relay) |
| SSID / ESSID | SSID stealth mode; MAC‑address‑based access control |
| Operating Modes | Supports AP, Client, and WDS (Wireless Distribution System) modes |
| Security Features | Open system, Shared key, WPA/WPA2 authentication; WEP/TKIP/AES encryption |
| Network Security & VPN | |
| Network Protection Security | Port forwarding / traffic rules / custom TTL; WebUI/CLI firewall configuration; DMZ, NAT/NAT‑T/NAT64 |
| Data Protection Security | Supports VPN functions including PPTP, L2TP, GRE, IPSEC VPN, DMVPN, OPENVPN, WireGuard, etc.; supports digital certificate CA |
| Authentication | Pre-shared keys, X.509 certs, TACACS+, RADIUS (built-in/external), IP/time/login blocking, random password generator |
| Attack Protection | DDoS protection (SYN flood, SSH, HTTP/HTTPS); Port scanning protection (SYN-FIN, SYN-RST, X-mas, NULL, FIN) |
| VLAN | Port‑based and Tag‑based VLAN isolation |
| Access Control | Flexible access control for SSH, Web UI, CLI, and Telnet |
| Web Filter | Blacklist for unwanted websites; whitelist for allowed websites only |
| Certificate Management | Certificate generation tools; can create CA, server, client, Let's Encrypt, and SCEP certificates |
| OpenVPN | Supports multiple clients and one server simultaneously; supports 27 encryption methods |
| IPsec | XFRM, IKEv1, IKEv2; 14 encryption methods for IPsec: 3DES, DES, AES128, AES192, AES256, AES128/192/256 GCM8/12/16 |
| WireGuard | Supports WireGuard VPN client and server |
| GRE | Supports GRE tunnels, GRE over IPsec tunnels |
| PPTP / L2TP | Client and server instances can run simultaneously; supports L2TPv3, L2TP over IPsec |
| DMVPN | Scalable IPsec VPN; supports Phase 2, Phase 3, and Dual Hub |
| SSTP | Supports SSTP client instance |
| ZeroTier | Supports ZeroTier VPN client |
| Stunnel | Adds TLS encryption to existing clients and servers via proxy |
| Tinc | Encryption, authentication, and compression within tunnels; supports client and server modes |
| EoIP | Ethernet over IP tunnel based on GRE RFC 1701 |
| Management & Platform | |
| Configuration Methods | Web UI, CLI, SSH, JSON‑RPC, TesproOS, etc |
| Cloud & IoT Platform | Supports Google, Huawei, Amazon, Microsoft Azure, iStarOS, Azure IoT Hub, other third-party cloud platforms, and custom clouds |
| FOTA | Firmware updates from server with automatic notification |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| MQTT | MQTT Broker, MQTT Publisher |
| JSON‑RPC | HTTP/HTTPS‑based management API |
| SSH | SSH (v1, v2) |
| Upgrade Methods | FOTA; Web UI |
| Logging Functions | Event log, system log, kernel log |
| Alert Functions | Email message status alerts |
| On-Demand Activation | On‑demand dialing, data activation, SMS activation |
| Receives email message status alerts from various services | |
| Software System | |
| Operating System | TesproOS (Linux) |
| Supported Languages | Busybox shell, Lua, C, C++, Python |
| Development Tools | SDK package including build environment |
| Firmware Customization | Supports custom branded firmware and web page applications (colours, logos, etc.) |
| Package Management | Supports installation of additional software packages |
| Firmware & Configuration | |
| Web UI Upgrade | Update firmware from file, check for firmware on server, configuration file, configuration backup |
| FOTA Upgrade | Update firmware |
| Cloud Bulk Upgrade | Supports updating firmware/configurations of multiple devices at once via TesproOS system |
| Config-Preserved Upgrade | Update firmware without losing current configuration |
| Factory Reset | Full factory reset, restoring all system settings including IP address, PIN code, and user data |
| Environment & Reliability | |
| Hot Backup / VRRP | VRRP (listed under Network Backup) |
| Link Online Detection | Sends heartbeat packets for detection; automatically reconnects upon disconnection |
| Dual SIM Link Switching | Supports dual SIM or dual eSIM link switching |
| Built‑in Watchdog | Device self‑check technology; automatic self‑recovery from runtime faults |
Show All
Show Less
Product Details

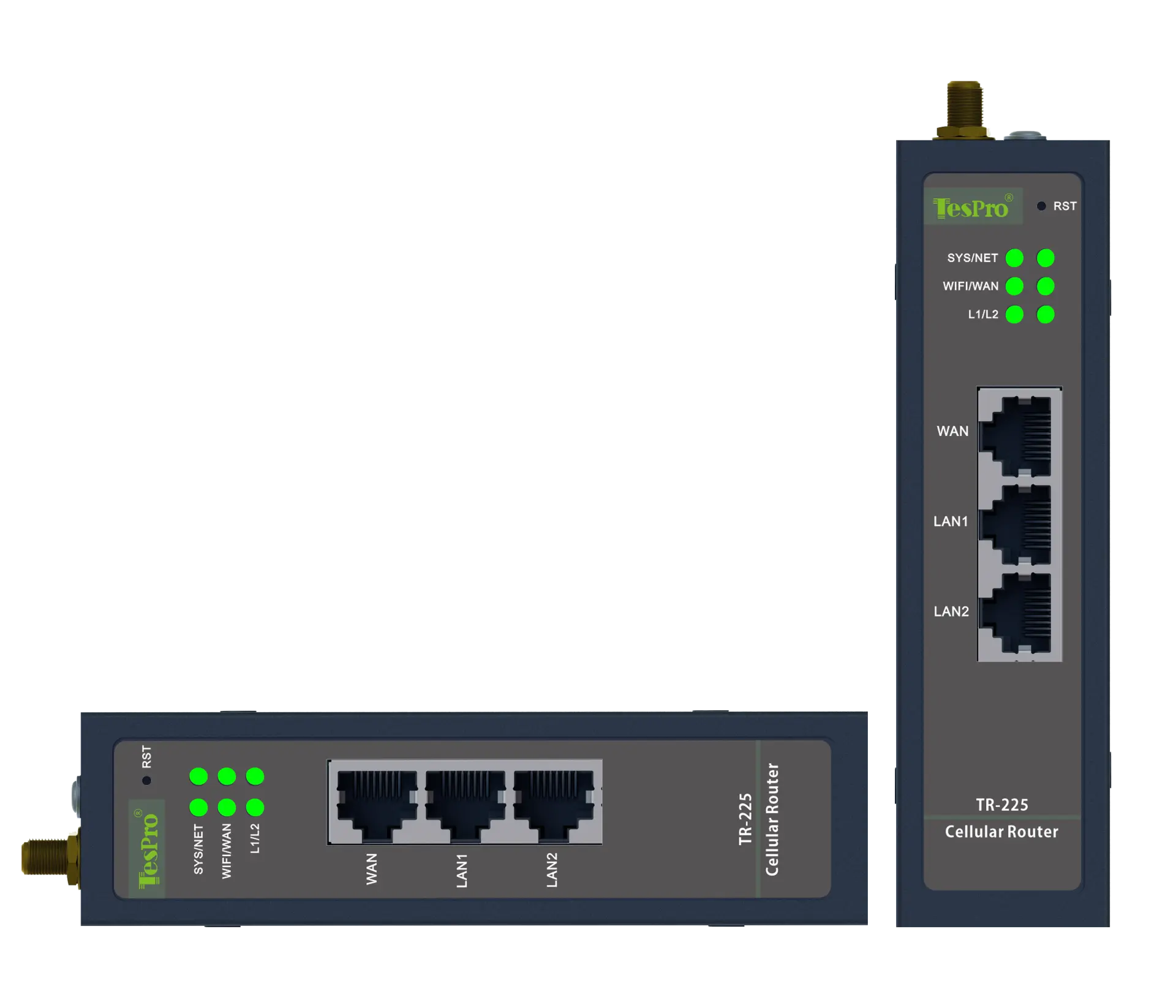

Interface Diagram
Dimensions Diagram

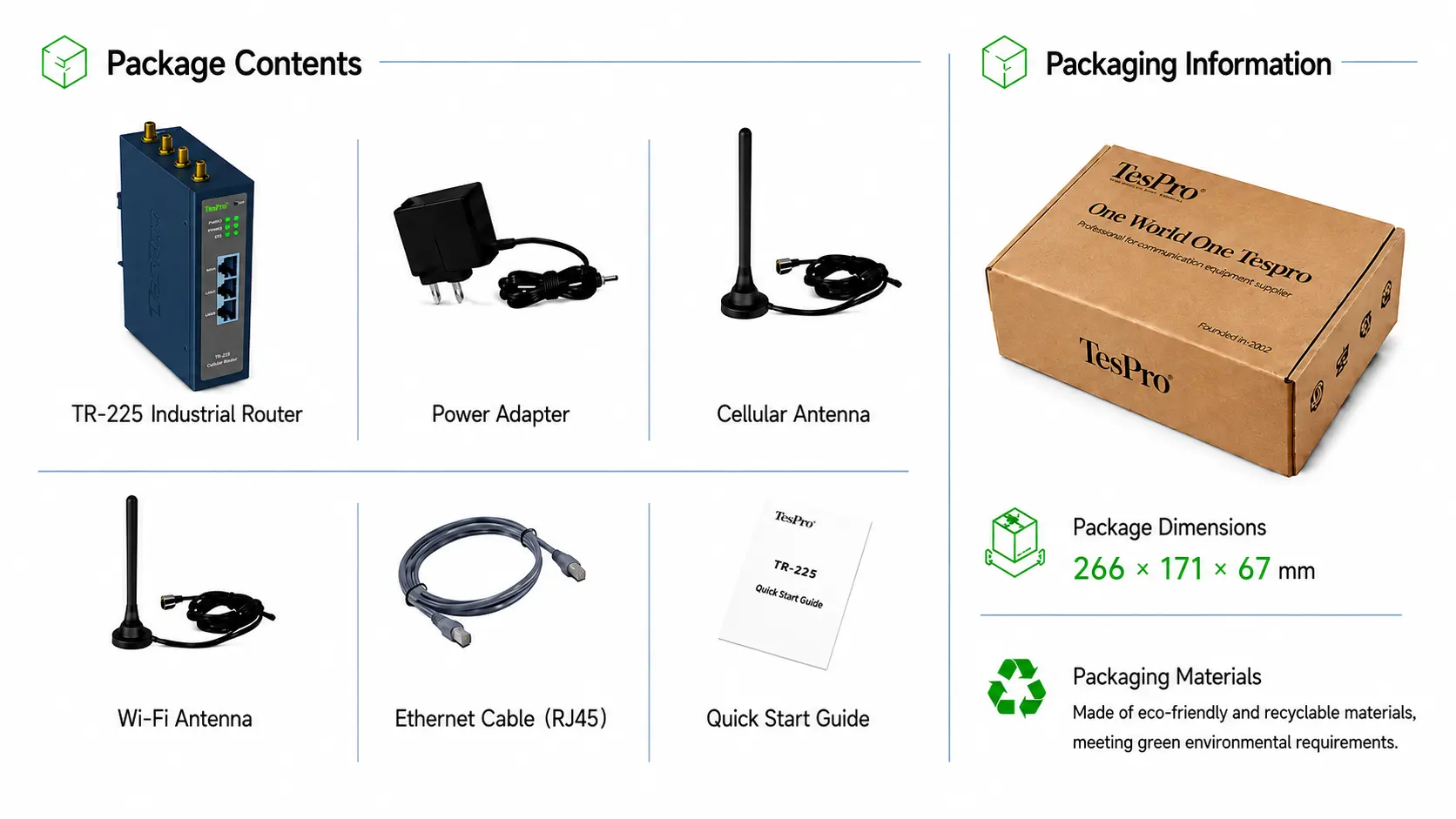

Accessories Diagram
Explore our Solutions
Industrial Connectivity & Networking Solutions
Delivering robust cellular and Ethernet networking solutions engineered for reliable data transmission in diverse industrial scenarios
Download Materials
Frequently Asked Questions
To help you better understand our products' performance, compatibility, and usage, we’ve compiled answers to commonly asked questions. If your inquiry isn’t listed below, feel free to contact us directly for further assistance.
Contact Us
-
What cellular networks does the TR-225 support?
-
The TR-225 is designed for high-speed industrial cellular connectivity and supports 5G NR and RedCap networks. It is suitable for industrial IoT applications requiring reliable and low-latency wireless communication.
-
Does the TR-225 support dual SIM for network redundancy?
-
Yes. The TR-225 supports dual SIM cards or dual eSIM cards with link switching. Together with Ethernet and Wi-Fi WAN failover, it helps maintain network availability when one connection becomes unavailable.
-
Can the TR-225 connect to PLCs, meters, and other industrial devices?
-
Yes. The TR-225 provides Ethernet and industrial serial interfaces, including RS485 and RS232. It supports protocols such as Modbus RTU/TCP, BACnet, OPC UA, DLMS, IEC 1107, and DL/T 645 for connecting different industrial and metering devices.
-
Can the TR-225 transmit collected data to cloud or IoT platforms?
-
Yes. The TR-225 supports MQTT, HTTP/HTTPS, TCP, UDP, and Azure MQTT. It can collect data from connected field devices and transmit it to cloud platforms, IoT systems, or remote servers for centralized monitoring and management.
-
Does the TR-225 support secure remote access and VPN connections?
-
Yes. The TR-225 supports multiple VPN technologies, including OpenVPN, IPsec, WireGuard, PPTP, L2TP, GRE, and DMVPN. These features enable secure remote access to industrial equipment and help protect data transmitted over public networks.
-
Is the TR-225 suitable for harsh industrial environments?
-
Yes. The TR-225 is designed for industrial deployment with a -40°C to +75°C operating temperature range, 12–36V DC power input, metal enclosure, DIN-rail mounting, and fanless cooling. It is suitable for industrial automation, energy systems, transportation, remote monitoring, and other demanding environments.
