Communication Optical Probe
Product ID: TP-USB Series

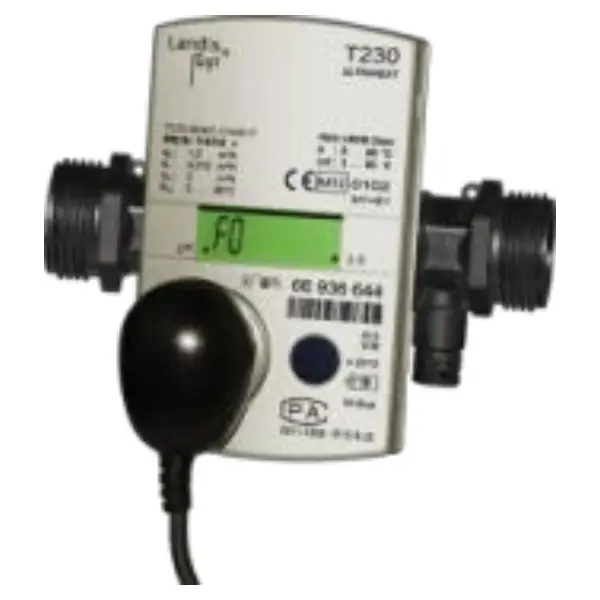

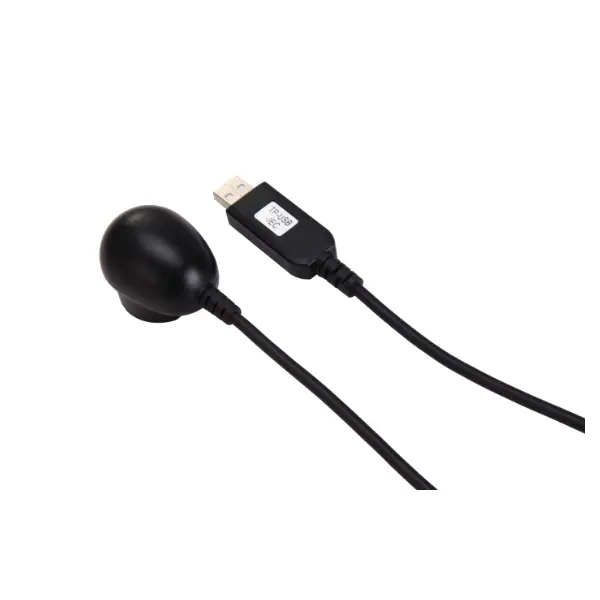

TP-USB Optical Probe is compatible with most electric and thermo meters using advanced technology.It has original UK-FTDI USB chips, which make it plug-and-play on all operating systems with no drivers required.Its high-quality cables support the Tespro philosophy of quality first.Cables are broad-temperature and may be configured to host a wide-temperature probe (-40degC up to +70degC) as well as a wide-voltage probe (100-220 V).
-
Baud rate
300-115200bps
-
Standard
IEC 62056-21/ANSI/ANSI-Type2/DL/T-645
-
Interface
USB-2.0
-
Temperature
-40℃~+70℃
Get Free Quote Now
DataSheet Download
TP-USB Series Communication Optical Probe Video
Features
Product Introduction
TP-USB Series Optical Probe is a product created by Tespro in 2005. Its current technologies and the application property that is applicable to almost all types of electric meters and thermo meters make it exceptionally unique among the optical probe families of Tespro China, which has always been following the philosophy of quality first and the original USB chip available in the UK that can be used to achieve plug and play to all operating systems without requiring any drivers, thus it is more convenient to use.
Meanwhile, we are demanding to use wide temperature cable materials to make sure that the product would operate normally within the temperature range of - 40 deg C to + 70 deg C. As it has always been the case, we follow quality in the course of 20 years. TP-USB was initially developed and built by Tespro Electronics Co., Ltd. (Tespro China).
Strong Compatibility
It has good compatibility, as it is compatible with all the types of meters and brands and meets all the protocols, and all the operating systems.
The World's Best USB Chip
It is the finest USB chip that is compatible with all the operating systems in the world.
Support Ultra-high Speed
It is compatible with ultra-high speed, which has ultra-high communication speed of up to 300 -115200 bps, as well as has transparent transfer mode that allows it to integrate well with meters.
Excellent Performance in Harsh Environment
It gives great service under severe conditions. The optical probe is 100 percent PC and operates in all the conditions, whether it is the summer blazing sun or the winter snowy snow. It is also characterized by the best - level enclosure material, powerful magnet and soft but firm cable.
Tech Specs
TP-USB Optical Probe Parameters Overview
| Category | Items | Features |
| Basic Information | Communication Interface | USB-2.0 |
| Supported Standard | IEC 62056-21/ANSI/ANSI-Type2/DL/T-645 | |

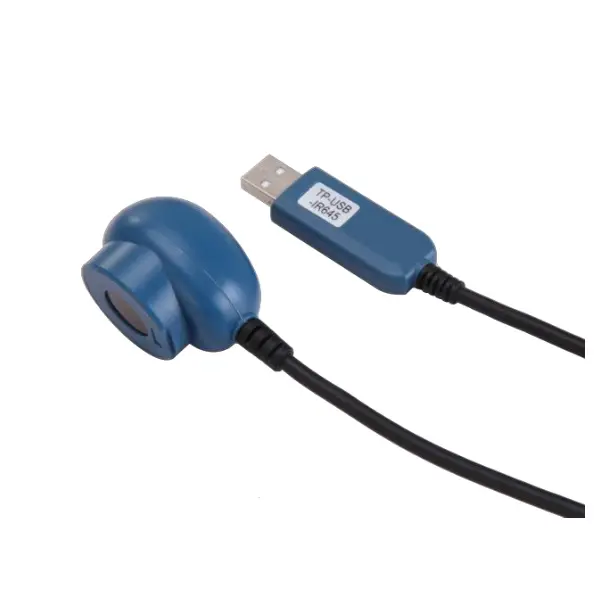

| Model Specifications | Sub-Models | TP-USB-IEC:Compliant with IEC-62056-21(ModC&E) TP-USB-ANSI-N:Compliant with ANSIC12.18 TP-USB-ANSI-S:Compliant with ANSIC12.18-2006 type2 TP-USB-ANSI-U:Universal type (Controlled by RS232-DTR) TP-USB-IR645:Compliant with DL/T-645-97/07 |
| Maximum B.R. | 57600 in normal and max.115200 available | |
| Connector | USB A male connector | |
| Sensor Light Wave Length | ~900 nm. | |
| Cable | Cablelength | 2M in normal and 3M/4M/5M for option |
| Fastening | Strong magnetic adhesion (in accordance with IEC 62056-21) | |
| Mounting | Magnet Holding Power | N40/N52(Optional) |
| Environment | Application temperature:-40℃~70℃ in normal | |
| Dimensions | Diameter&Height | Optical port 32mm Diameter/L45×H30mm |
| Weight | 88 gr | |
| Enclosure Material | PC | |
| Protection Class | IPS54 |

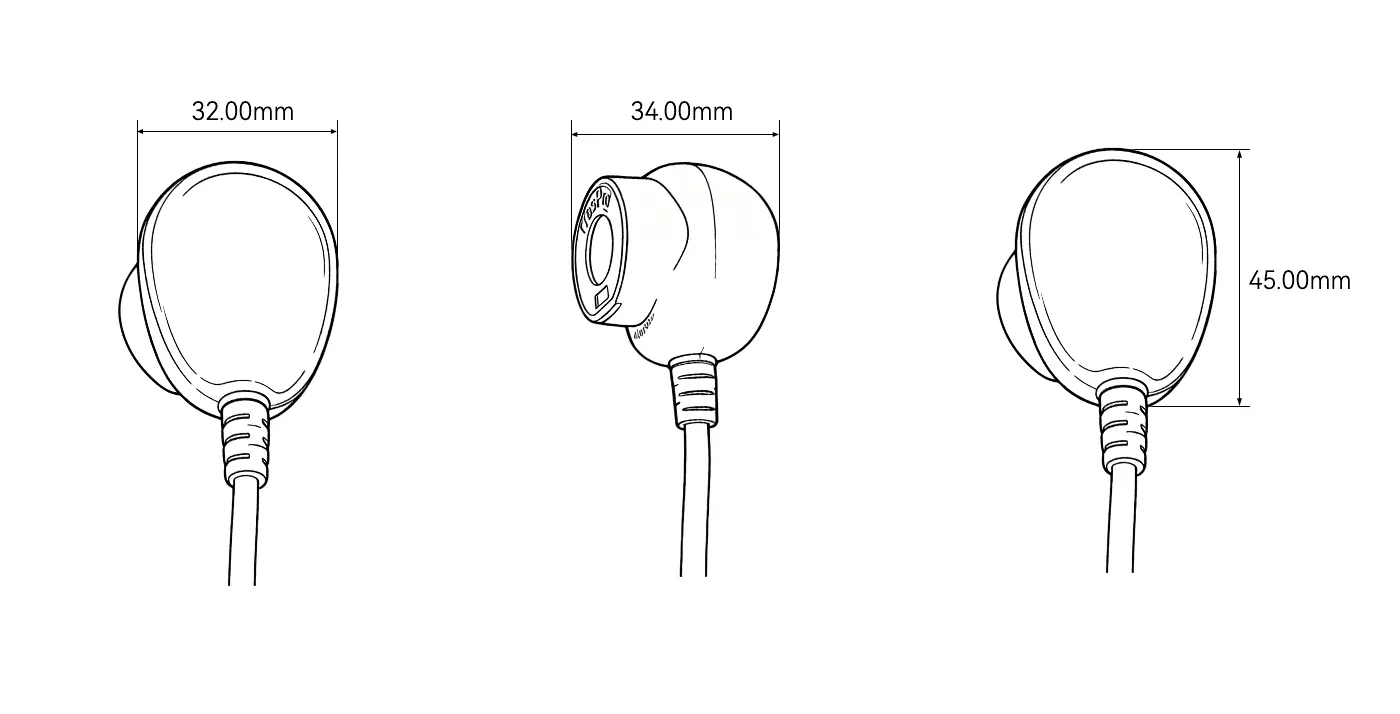

Product Dimensions
Explore our Solutions
Reliable Optical Communication for Smart Metering
The state of the art AMI systems need consistent and reliable data capture at the meter level. Reading by hand was time-consuming and prone to error.
The optical probes produced by Tespro, such as the TP-BT and USB lines, allowed automatic data access through optical ports, and were compatible with different brands of meters and protocols. Bluetooth and USB models were flexible both in the field and desktop.
Case
Product Case
Sept. 8, 2022 - one of the largest U.S. customers has ordered 275 TP-USB optical probes directly through our company, which will be used to activate smart meter data collection, Industrial IoT monitoring, and tests of the equipment on-site throughout the country.
USB functionality is the highlight feature of the probe, which allows on-board data storage- which means that the laptops do not have to be carried to the field location and thus data can easily be transferred to the computers after the collection process.
The TP-USB probes literally change the way the field work is done because the probes are provided with inbuilt USB data storage ensuring that the technicians are able to gather meter reading without laptops in the field and later relay the data collected to the computers once they are out of the field.
Customer feedback attests to the groundbreaking efficiency improvements: such USB-powered plug-and-play design saves onsite operation time by 35 percent, eliminates data errors by 40 percent, and saves maintenance expenses by 28 percent.
The solution has been known to be reliable in its operations and has optimized the workflow, and that is why it is a favorite solution to all future deployments of the client.
Frequently Asked Questions
To help you better understand our products' performance, compatibility, and usage, we’ve compiled answers to commonly asked questions. If your inquiry isn’t listed below, feel free to contact us directly for further assistance.
Contact Us
-
Are these products compatible with my current system?
-
Most products support cross-platform protocols and work with Android, iOS, and Windows systems. Please refer to the product specifications for exact compatibility.
-
What communication methods are supported?
-
Most devices support multiple communication modes such as Bluetooth, USB, and Wi-Fi to meet various application needs.
-
Do the products offer water and dust protection?
-
Yes, most of the products are rated at least IP54, providing resistance against dust and water splashes in industrial environments.
-
Can data be transmitted remotely?
-
Some models support wireless data transmission via Wi-Fi or 4G/5G networks, enabling real-time upload to cloud platforms or backend systems.
-
How are the devices powered?
-
Devices typically feature rechargeable batteries with runtimes ranging from 8 to 24 hours, and can be recharged via USB.
-
Do you offer product customization?
-
Yes, we provide customization options such as protocol support, casing design, and mounting solutions. Please contact us for more details.
