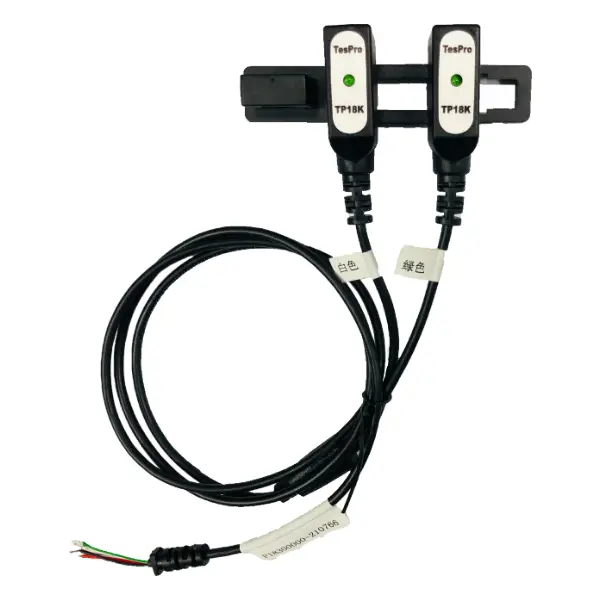

Calibration Optical Probe
Product ID: TP-18 Ultra-Slim Scanning
TP-18 Calibration Optical Probe is one of the slimmest high-sensitivity scanning probes in the world (10mm width), supporting simultaneous active/reactive energy testing. Designed for precise calibration and compact setups.
-
Application
Slim scanning probe applied to electronic energy meters
-
Power
DC5V±10%，≤10mA(default)；DC12~36V for option
-
Fastening
Needs to be used together with TP-GS2 ro TP-GS3
-
Temperature
-40℃~+70℃
Get Free Quote Now
Download
Features
Product Introduction
TP-18 slim optical scanning probe is designed and manufactured by Tespro China. TP-18 is designed for simoutanous meter active and reactive accuracy testing. TP-18 can sense both light and infrared light pulses emitted by LED, then convert them into electric pulses. It is designed with slim dimension of 10mm and high optical sensitivity. TP-18 can adapt to various calibration equipment, including high-precision standard meters produced by EMH, meter production testing equipment from major meter manufacturers, and portable on-site testing equipment.It will become a indispensable and great helper for your calibration tasks.
Strong Compatibility
.Detects lights of different colors and wavelengths, converts light pulses to electric pulses. Supports 5/12/24 VDC, with various connectors available.
Simultaneous Acquisition Of Active And Reactive Pulse
Acquires active and reactive pulses simultaneously, with high precision, strong practicality, stable performance, and easy management.
High Sensitivity
Supports min 200μs pulse width, max 5kHz frequency. Senses multiple colors of light, resists interference, usable indoors and outdoors.
Excellent Performance in Harsh Environment
Made with top - level enclosure, strong magnet, and durable cable. Works well in extreme environments like summer sun or winter blizzards.
Tech Specs
Metering Equipment Technical Data
| Item | Features | |
| Power supply | DC：5V±10%，≤10mA(default) DC：12~36V for option |
|
| Output pulse | High level ≥4.0V， low level ≤0.3V， positive electric pulse DC5V / DC12~24V for option |
|
| Cable length | 70CM in normal, 1M for option | |
| Connector | bare wires without connector in normal Customized connector is available |
|
| Fastening | Supported by TP-GS2 supporting bracket | |
| Mechanical | Impact ABS + PC housing | |
| Environment | Application temperature: -40℃~+70℃ in normal | |
| Diameter & Height | 10mm width | |
| Weight | 50 gr | |
| Probe Fixture | TP-GS2 supporting fixture can be used for probe fixing onto any kind of meters | |
| Protection Class | IP 54 | |
