Optical Probe For Smart Meter
Product ID: TP-17C Dual-Function Scanning

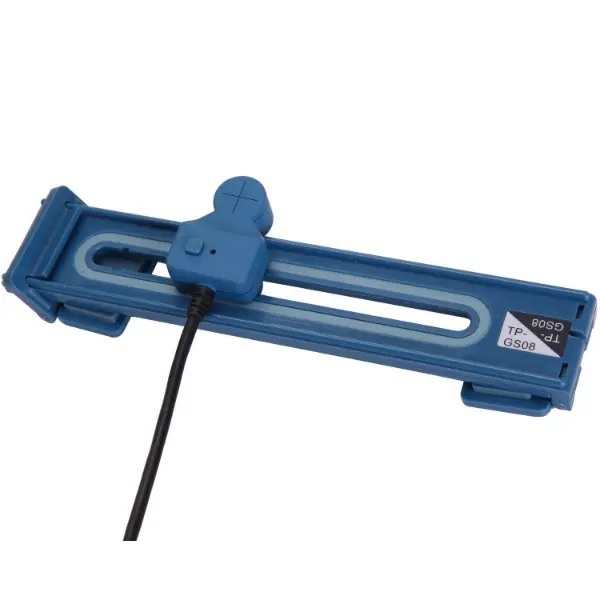

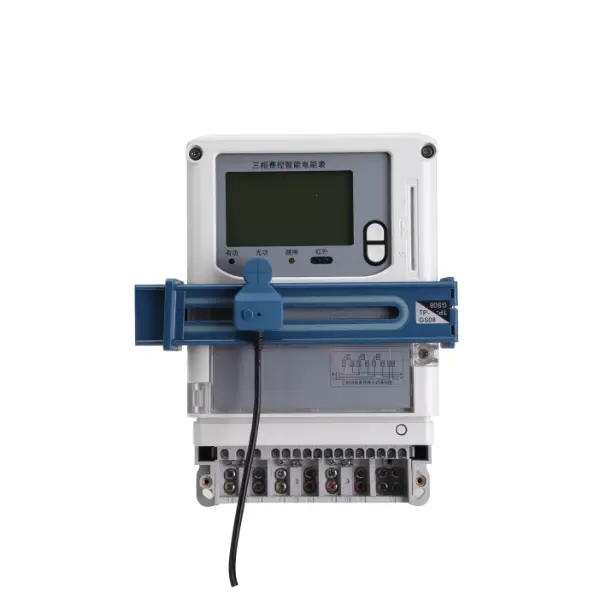

TP-17C is the third-gen TP-17 series duplex-function optical probe.It’s suitable for accuracy testing of mechanical and electric meters.Integrated with TP-GS bracket, it’s an ideal accessory for on-site/test bench use.
-
Application
Applied to mechanical meters or electric meters
-
Power
DC5V±10%，≤40mA(default)；DC12~36V for option
-
Fastening
Needs to be used together with TP-GS2 ro TP-GS3
-
Temperature
-40℃~+70℃
Get Free Quote Now
Download
Features
Product Introduction
TP-17C is the third generation model of TP-17 series scanning optical probe. It is a duplex-function model, and can be applied to mechanical meters or electric meters in their accuracy testing. By integrating with TP-GS bracket for the combined TP-T/TC set can be a perfect accessory for on-site test instrument or test bench.
Strong Compatibility
Detects visible and infrared light of various colors and wavelengths, converts light pulses to electric pulses. Supports 5/12/24 VDC and various connectors.
Applies to All Meters
Works with mechanical and intelligent meters, sensing IR LED light and rotor marks. One tool (TP - 17) meets all needs.
High Sensitivity
Supports min 200μs pulse width, max 5kHz frequency. Integrates dual functions, resists light interference, usable indoors and outdoors
Excellent Performance in Harsh Environment
Works well in harsh environments. Has top - level enclosure, durable cable, and convenient push - button mode selection.
Tech Specs
Metering Equipment Technical Data
| Item | Features | |
| Power supply | DC：5V±10%, ≤40mA(default)；DC：12~36V for option | |
| Working mode | for mechanical meter accuracy test (LED red), function changing by button-down forelectric meter accuracy test (LED blue), function changing by button-up | |
| Cable length | 3M in normal, 2M for option | |
| Connector | bare wires without connector in normal Customized connector is available |
|
| Mechanical | Impact ABS+PC housing | |
| Environment | Application temperature:-40℃~+70℃ in normal | |
| Dimensions | 47x32x22mm | |
| Weight | 50 gr | |
| Probe Fixture | TP-GS2 supporting fixture can be used for probe fixing onto any kind of meters | |
| Protection Class | IP54 | |
