Industrial Gateway
Product ID: TG-325

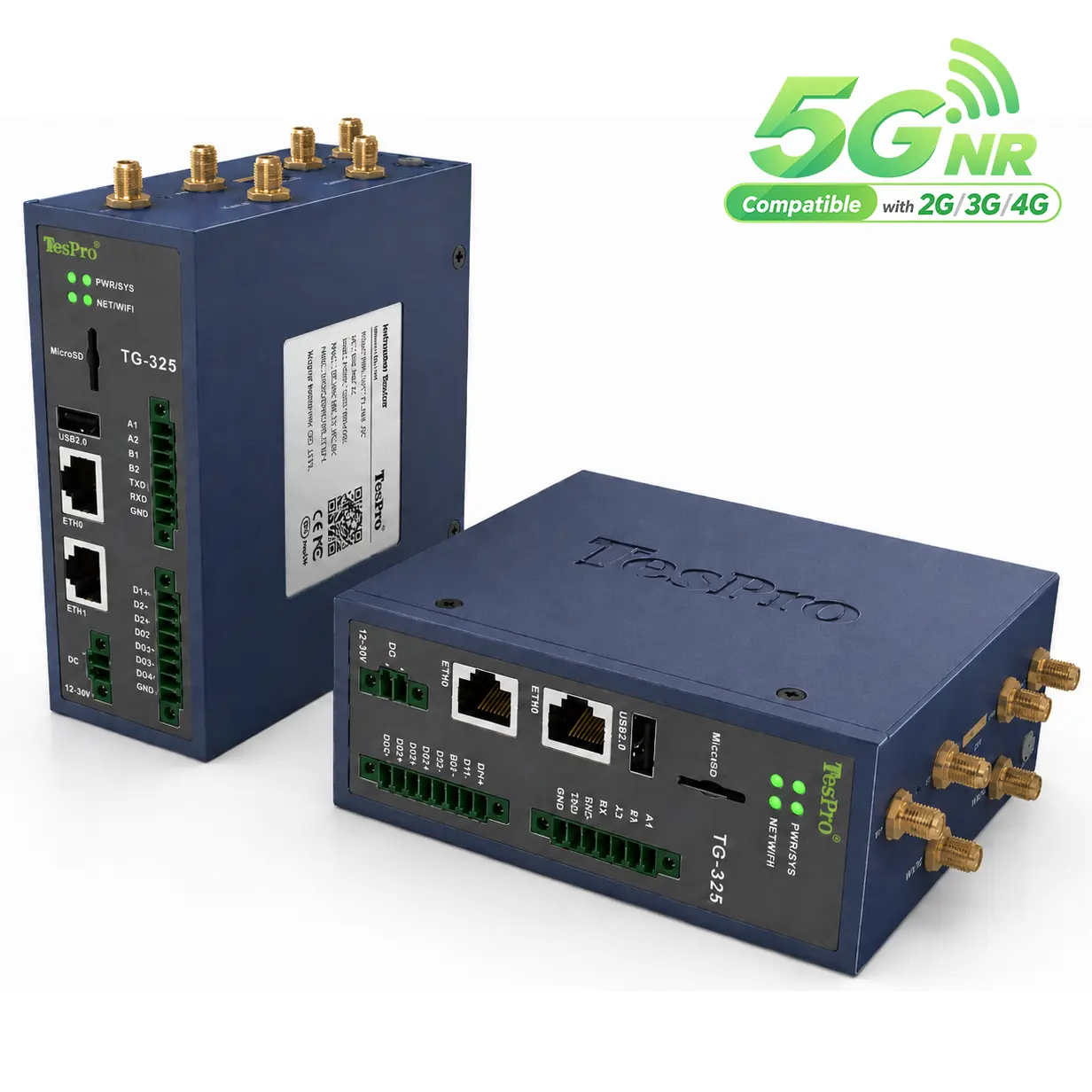

The TG-325 Intelligent Edge computing Gateway is an industrial standard gateway product introduced by Tespro. It has a high bandwidth, low latency, and high reliability with the support of 2G, 3G, 4G, and 5G networks to offer wireless network connectivity to IoT devices.
-
Network
5G LTE+4*LAN 1000Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40 °C~75 °C
-
Power
12-36VDC
Get Free Quote Now
Datasheet Download
TG-325 Intelligent Gateway Video
The TG-325 Intelligent Gateway video exhibits edge processing, multi-protocol IoT connectivity, safe data transmission, industrial dependability, and practical installation to integrate smart devices into an industrial setting.
Features
Product Introduction
TG-325 Intelligent Edge Computing Gateway is an industry grade gateway device released by Tespro. It has a high bandwidth, low latency and high reliability, and is capable of using 2G, 3G, 4G and 5G networks to deliver wireless network connectivity to the IoT devices.
The TG-325 Gateway has an operating system that is created with the OpenWrt/LEDE, which supports programming languages, including C/C++, Lua, Go and Python, to meet the device connection requirements of various IoT applications.
The TG-325 Gateway has 2 layers of upstream and downstream interfaces, 2 ports of 100M/1000M Ethernet mode of operation, 2 RS485 interfaces, 1 RS232 serial port, and 4 channels of GPIO input-output The users are free to develop the appropriate applications on the system.
Multi - Protocol Compatibility
It also supports standard protocols like Modbus, RTU/TCP, MQTT, OPC and HTTP, JSON custom protocol and Environmental Protection 212 Protocol, ministry of transport standard 808, multiple instrument protocols, and Ministry of housing and urban rural development energy consumption protocol, etc.
Structural Design
It embraces large -temperature key chips that use less energy and does not have a fan. It is added with the heat dissipation of the aluminum alloy shell with good heat dissipation performance that guarantees the long-term stable operation of the gateway.
Edge Computing Function
The gateway contains in-built computing and logical business functionalities, which facilitate off-line governance. It is a complement of cloud-edge collaboration and edge computing in order to offer the data of the devices to the cloud platform.
Application Scenarios
It is extensively employed in over 100 application scenarios of the IoT industry, including smart factories, industrial Internet, smart cities, smart parks, smart agriculture and smart environments. Multi-Device Protocol Integration through Smart Gateway.
Tech Specs
Metering Equipment Technical Data
| Category | Parameter Name | Parameter Description |
| Basic Information | Power Supply | DC: 12-36VDC |
| Indicator Lights | Power/Network/Communication | |
| Region/Carrier | Global | |
| Reference Dimensions | 125mm108mm50mm | |
| Frequency Band Information | LTE-FDD | B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
| LTE-TDD | B38/39/40/41 | |
| WCDMA | B1/2/4/5/6/8/19 | |
| GSM/EDGE | B2/B3/5/8 | |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS (Optional) | |
| Data Information | LTE-FDD | Maximum 10 Mbps (dl) / 5 Mbps (ul) |
| LTE-TDD | Maximum 8.96 Mbps (dl) / 3.1 Mbps (ul) | |
| WCDMA | Maximum 384 kbps (dl) / Maximum 384 kbps (ul) | |
| EDGE | Maximum 296 kbps (dl) / Maximum 236.8 kbps (ul) | |
| GPRS | Maximum 107 kbps (dl) / Maximum 85.6 kbps (ul) | |
| Output Power | LTE-FDD/TDD | Class 3 (23 dBm ±2 dB) |
| WCDMA | Class 3 (24 dBm +1/-3 dB) | |
| GSM850 | Class 4 (33 dBm ±2 dB) | |
| Serial Port Parameters | Number of Serial Ports | 1*RS232 Port, 2*RS485 Port |
| Serial Port Pins | RS232-Terminal (V/TX/RX/GND), RS232-DB9 (2-RX/3-TX/5-GND); RS485-Terminal (A/B/G) | |
| Baud Rate | 300-115200 bps | |
| WIFI Antennas | 2*Bluetooth Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| 4G Antennas | 2*4G Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| Buttons | Reset | |
| 2P Socket | Power Socket | |
| 7P Socket | 2*RS485, 1*RS232 | |
| 8P Socket | 2*DI,2*DO | |
| TF Card | Micro SD Card | |
| USB | USB3.0 | |
| Network Interface | 4G LTE+4*LAN 100Mbps | |
| Functions | Collection Methods | Real-time Collection/Reporting, Interval Collection/Timed Reporting, Customized |
| Electric Meter Protocols | DL/T 645-2007, IEC 62056-21,IEC 1107, IEC 61850,DLMS | |
| Industrial Protocols | MODBUS RTU,MODBUS TCP,BACnet,M-bus,OPC UA | |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPS, ARP, SSH2, DDNS, etc. | |
| Temperature & Humidity Range | Operating Temp & Humidity | -40~ +75 °C;10%～95% RH |
| Storage Temperature | -20 ~ +80 °C | |
| Reliability | Safety Protection Functions | Reverse Polarity Protection Overvoltage & Overcurrent Protection Lightning Protection Surge Protection |
Explore our Solutions
Smart Gateway for Multi-Device Protocol Integration
The Tespro edge gateway did protocol conversion (DLMS/Modbus/MQTT) and it could serve various communication chips such as RS485, 4G, and Wi-Fi. It served as a local data collection and forwarding center.
Case
Product Case
A series of 1,000 TG-325 intelligent edge computing gateways directly ordered by a major Brazilian energy utility firm of Tespro have been implemented in 30+ distributed energy projects in Brazil, Argentina and Chile. These gateways are the heart of the single energy monitoring and management system of the client.
The TG-325 has 2 RS485 interfaces, 1 RS232 port and 4 GPIO channels, which allow connection to solar inverters, smart energy meters, and grid monitoring sensors.
It used in favor of global frequency bands and 2G/3G/4G/5G multi-network redundancy, which guarantees a consistent transfer of data in remote mountainous-coastal locations. It has a wide protocol coverage combining the data streams of a wide variety of energy devices.
When it was implemented the solution became very effective. The client had reported a 99.5-percent data transmission reliability and 35-percent improvement in energy monitoring response time.
The centralized real-time management increased the production of the distributed energy by 12 percent and reduced on-site maintenance expenditure by 30 percent. The TG-325 was deemed as essential to the international energy endeavours of the client.
The protocol customization and on-site deployment services of Tespro offered Latin American technical team whose services were effective in ensuring smooth integration with the existing grid infrastructure.
