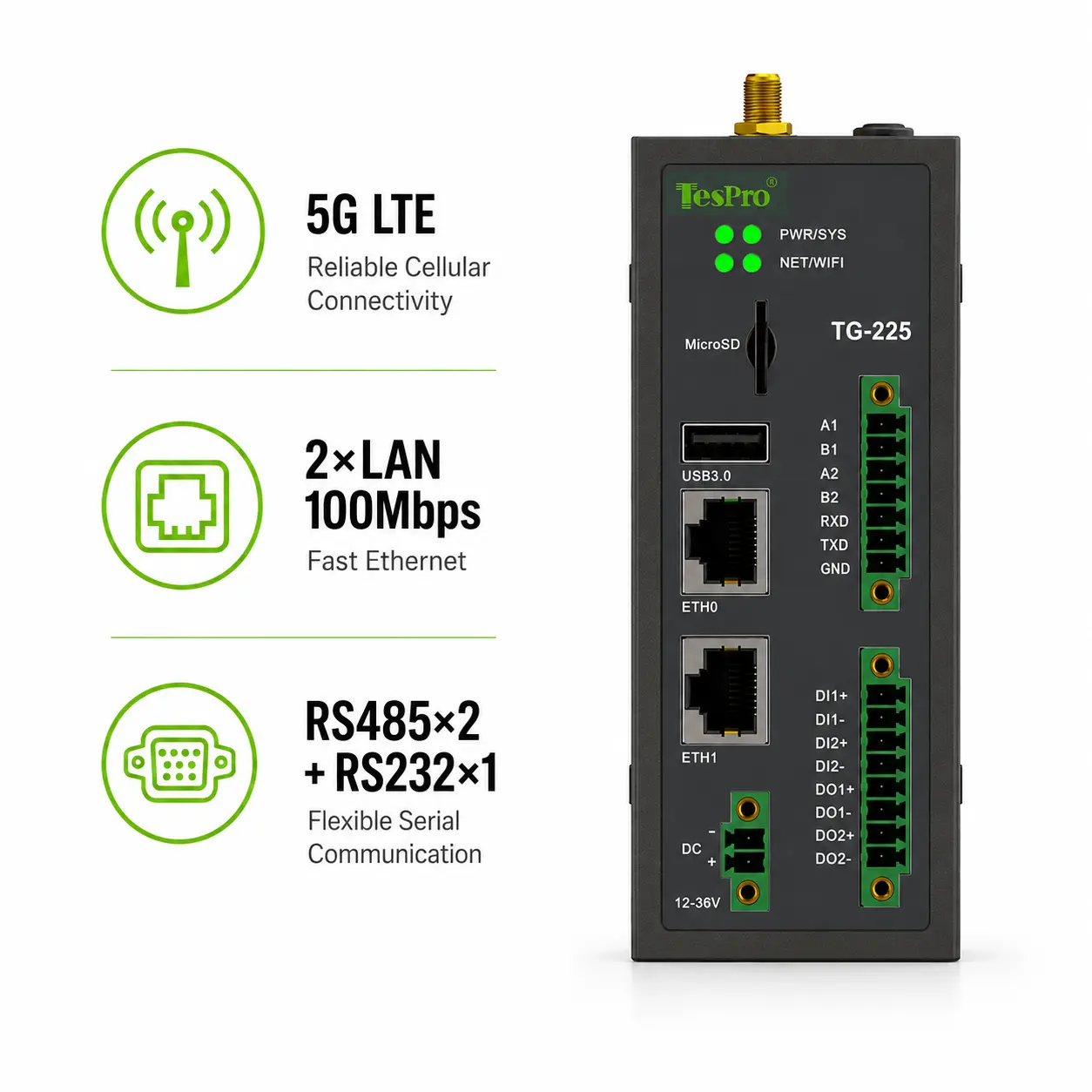

Industrial Gateway
Product ID: TG-225
The TG-225 Industrial Iot Edge Gateway is an industrial-grade gateway device launched by Tespro. It features high bandwidth, low latency and high reliability, supporting 2G, 3G, 4G and 5G networks to provide wireless network connectivity for IoT devices.
-
Network
5G LTE+4*LAN 100Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40 °C~75 °C
-
Power
12-36VDC
Get Free Quote Now
Datasheet Download
TG-225 Industrial Iot Edge Gateway Video
The TG-225 Industrial IoT Edge Gateway video demonstrates intelligent edge processing, secure connectivity, protocol bridging, and rugged industrial performance for smart automation and real-time IoT device integratio
Features
Product Introduction
TG-225 Intelligent Edge Computing Gateway is an industrial-grade gateway device launched by Tespro. It features high bandwidth, low latency and high reliability, supporting 2G, 3G, 4G and 5G networks to provide wireless network connectivity for IoT devices. Equipped with rich upstream and downstream interfaces, the TG-225 includes 2 ports of 100M/1000M Ethernet, 2 RS485 interfaces, 1 RS232 serial port, and 4 channels of GPIO input and output, meeting the device connection needs of different IoT scenarios.The operating system of the TG-225 Gateway is developed based on OpenWrt/LEDE, supporting programming languages such as C/C++, Lua, Go and Python. Users can independently develop relevant applications on the system.
Multi - Protocol Compatibility
It supports standard protocols such as Modbus, RTU/TCP, MQTT, OPC, HTTP, JSON custom protocol, Environmental Protection 212 Protocol, Ministry of Transport Standard 808, various instrument protocols, and Ministry of Housing and Urban - Rural Development Energy Consumption Protocol, as well as third - party upper - computer communication protocols, etc.
Structural Design
It adopts wide - temperature key chips with low power consumption and a fanless design. Combined with the heat dissipation of the aluminum alloy shell with good heat dissipation performance, it ensures the long - term stable operation of the gateway.
Edge Computing Function
The gateway has built-in computing and logical business capabilities, supporting offline governance. It complements cloud-edge collaboration and edge computing to provide device data for the cloud platform.
Application Scenarios
It is widely used in more than 100 IoT industry application scenarios, such as smart factories, industrial Internet, smart cities, smart parks, smart agriculture and smart environments.
Tech Specs
Metering Equipment Technical Data
| Category | Parameter Name | Parameter Description |
| Basic Information | Power Supply | DC: 12-36VDC |
| Indicator Lights | Power/Network/Communication | |
| Region/Carrier | Global | |
| Reference Dimensions | 125mm108mm50mm | |
| Frequency Band Information | LTE-FDD | B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
| LTE-TDD | B38/39/40/41 | |
| WCDMA | B1/2/4/5/6/8/19 | |
| GSM/EDGE | B2/B3/5/8 | |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS (Optional) | |
| Data Information | LTE-FDD | Maximum 10 Mbps (dl) / 5 Mbps (ul) |
| LTE-TDD | Maximum 8.96 Mbps (dl) / 3.1 Mbps (ul) | |
| WCDMA | Maximum 384 kbps (dl) / Maximum 384 kbps (ul) | |
| EDGE | Maximum 296 kbps (dl) / Maximum 236.8 kbps (ul) | |
| GPRS | Maximum 107 kbps (dl) / Maximum 85.6 kbps (ul) | |
| Output Power | LTE-FDD/TDD | Class 3 (23 dBm ±2 dB) |
| WCDMA | Class 3 (24 dBm +1/-3 dB) | |
| GSM850 | Class 4 (33 dBm ±2 dB) | |
| Serial Port Parameters | Number of Serial Ports | 1*RS232 Port, 2*RS485 Port |
| Serial Port Pins | RS232-Terminal (V/TX/RX/GND), RS232-DB9 (2-RX/3-TX/5-GND); RS485-Terminal (A/B/G) | |
| Baud Rate | 300-115200 bps | |
| WIFI Antennas | 2*Bluetooth Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| 4G Antennas | 2*4G Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| Buttons | Reset | |
| 2P Socket | Power Socket | |
| 7P Socket | 2*RS485, 1*RS232 | |
| 8P Socket | 2*DI,2*DO | |
| TF Card | Micro SD Card | |
| USB | USB3.0 | |
| Network Interface | 4G LTE+4*LAN 100Mbps | |
| Functions | Collection Methods | Real-time Collection/Reporting, Interval Collection/Timed Reporting, Customized |
| Electric Meter Protocols | DL/T 645-2007, IEC 62056-21,IEC 1107, IEC 61850,DLMS | |
| Industrial Protocols | MODBUS RTU,MODBUS TCP,BACnet,M-bus,OPC UA | |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPS, ARP, SSH2, DDNS, etc. | |
| Temperature & Humidity Range | Operating Temp & Humidity | -40~ +75 °C;10%～95% RH |
| Storage Temperature | -20 ~ +80 °C | |
| Reliability | Safety Protection Functions | Reverse Polarity Protection Overvoltage & Overcurrent Protection Lightning Protection Surge Protection |
Explore our Solutions
Smart Gateway for Multi-Device Protocol Integration
Tespro's edge gateway handled protocol conversion (DLMS/Modbus/MQTT) and supported multiple communication modules like RS485, 4G, and Wi-Fi. It acted as a local hub for data collection and forwarding.
Case
Product Case
A large-scale renewable energy developer managing solar and wind farms across remote regions struggled with fragmented energy data collection and inconsistent connectivity. Its network of distributed sensors, meters, and IoT devices relied on disjointed communication methods, leading to delayed data transmission, difficulty integrating diverse equipment types, and challenges in real-time monitoring of energy production. Additionally, the need for customized data collection logic to adapt to varying site conditions further complicated operations.
The TG-225 Industrial Gateway stands out primarily for its exceptional connectivity capabilities. Supporting 4G/5G and multi-generational cellular networks, it guarantees stable, high-bandwidth data transmission even in the most remote locations, effectively eliminating any potential data transmission gaps. This ensures that regardless of geographical constraints, users can rely on seamless data flow for critical operations and monitoring.
With the TG-225 in place, the developer now has centralized, real-time access to energy production data across all facilities. The gateway’s reliable connectivity and flexible integration have streamlined monitoring workflows, enabling proactive maintenance and data-driven decisions to optimize renewable energy output. Its industrial-grade safety protections and adaptability to diverse IoT scenarios have made it an essential component of the company’s remote energy management infrastructure.
