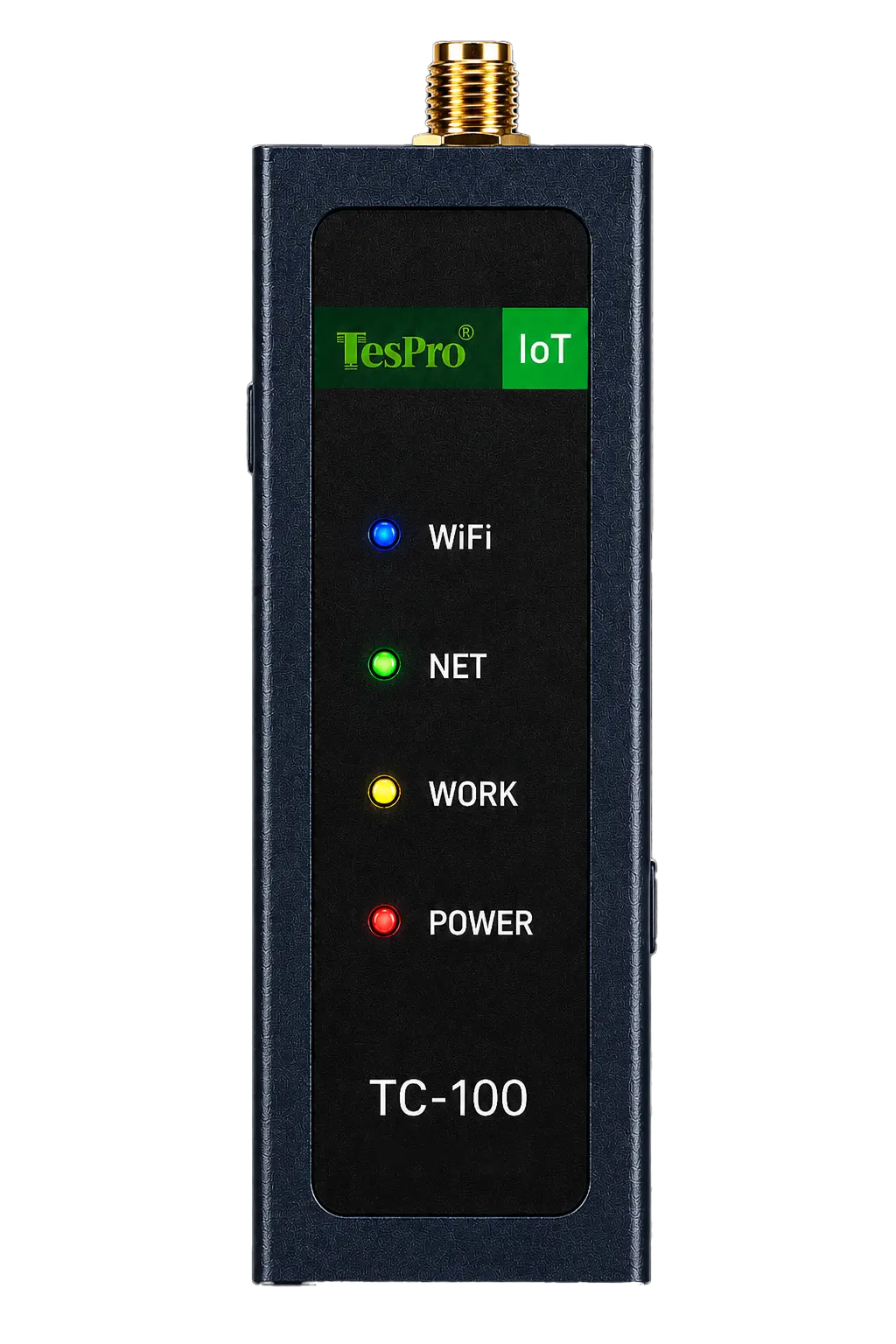

Protocol Converter
Product ID: TC-100
-
Network
1 WAN + 1 LAN
-
Interface
RS485 / RS232 / CAN
-
Temperature
-40 °C~75 °C
-
Power
12-36V DC
Get Free Quote Now
Datasheet Download
Features
Product Introduction
The TC-100 Series Industrial Protocol Converter is a compact industrial communication device developed by Tespro for field device integration, protocol conversion, data acquisition and remote platform access.
Multi-Protocol Conversion
Supports Modbus RTU, Modbus TCP, BACNet/IP, BACNet/MSTP and OPC UA, enabling seamless communication between different field devices, controllers, SCADA systems, BMS platforms and cloud platforms.
Wide Cellular Connectivity
Supports 2G, 3G, 4G and 5G wireless communication for remote data transmission, device networking and platform access in distributed industrial and utility environments.
Data Mapping and Format Conversion
Supports protocol parsing, address mapping, data format conversion, data acquisition and platform upload, helping unify data from different devices into one management system.
Customization Support
Supports label logo customization and secondary development, making it suitable for OEM projects, system integrators and customized protocol integration scenarios.
Tech Specs
Metering Equipment Technical Data
| Category | Parameter Name | Parameter Description |
| Basic Information | Power Supply | DC: 12-36V DC |
| Indicator Lights | Power / Network / Communications / WiFi | |
| Region/Carrier | Global | |
| Reference Dimensions | 41mm*95*103mm | |
| Frequency Band Information | LTE-FDD | B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 18/19/ 20/ 25/ 26/ 28 |
| LTE-TDD | B38/39/40/41 | |
| WCDMA | B1/2/4/5/6/8/19 | |
| GSM/EDGE | B2/B3/5/8 | |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS (Optional) | |
| Data Information | LTE-FDD | Maximum 10 Mbps (dl) / 5 Mbps (ul) |
| LTE-TDD | Maximum 8.96 Mbps (dl) / 3.1 Mbps (ul) | |
| WCDMA | Maximum 384 kbps (dl) / Maximum 384 kbps (ul) | |
| EDGE | Maximum 296 kbps (dl) / Maximum 236.8 kbps (ul) | |
| GPRS | Maximum 107 kbps (dl) / Maximum 85.6 kbps (ul) | |
| Output Power | LTE-FDD/TDD | Class 3 (23 dBm ±2 dB) |
| WCDMA | Class 3 (24 dBm +1/-3 dB) | |
| GSM850 | Class 4 (33 dBm ±2 dB) | |

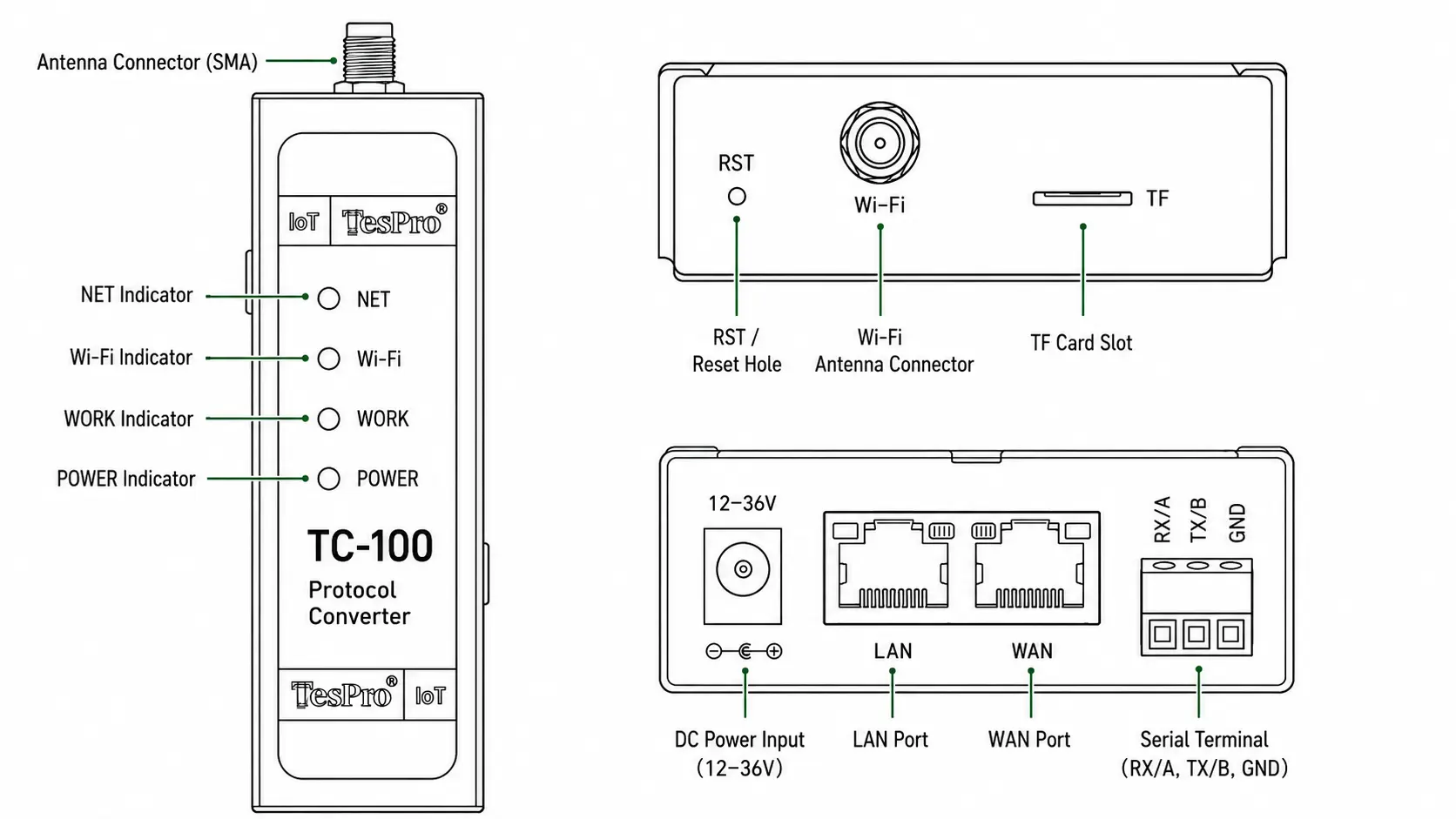

| Serial Port Parameters | Number of Serial Ports | RS485 / RS232 / CAN (Select One) |
| Serial Port Pins | RS232-Terminal (V/TX/RX/GND), RS232-DB9 (2-RX/3-TX/5-GND); RS485-Terminal (A/B/G) | |
| Baud Rate | 300-115200 bps | |
| WIFI Antennas | 1 Wi-Fi Antenna, SMA Male (Outer Thread, Inner Pin) | |
| 4G Antennas | 1 x 4G Antenna (SMA Male, Female Pin) | |
| Buttons | Reset | |
| 2P Socket | Power Socket | |
| 7P Socket | 1-Channel RS485 / RS232 / CAN (Select One) | |
| 8P Socket | 2*DI,2*DO | |
| TF Card | Micro SD Card | |
| USB | USB3.0 | |
| Network Interface | 1 WAN + 1 LAN | |
| Functions | Collection Methods | Real-time Collection/Reporting, Interval Collection/Timed Reporting, Customized |
| Protocol Conversion | BACnet to Modbus, OPC UA to Modbus, etc. | |
| Industrial Protocols | BACNet/IP、BACNet/MSTP | |
| Network Protocols | TCP, UDP, HTTP, HTTPS, etc. | |
| Temperature & Humidity Range | Operating Temp & Humidity | -40~ +75 °C;10%～95% RH |
| Storage Temperature | -20 ~ +80 °C | |
| Reliability | Safety Protection Functions | Reverse Polarity Protection Overvoltage & Overcurrent Protection Lightning Protection Surge Protection |
Explore our Solutions
Smart Gateway for Multi-Device Protocol Integration
The TC-100 industrial protocol converter supports Modbus, BACNet, OPC UA and MQTT communication, with RS485, RS232, CAN, Ethernet, 4G/5G and Wi-Fi connectivity. It acts as a local data collection, protocol conversion and forwarding center for industrial automation, BMS, SCADA and IoT platform integration.
Case
Product Case
Smart Building Multi-Protocol Integration for Energy and Equipment Management
A facility management company needed to integrate multiple systems across commercial buildings, including HVAC controllers, smart electricity meters, water meters, gas meters, heat meters, environmental sensors and PLC-based equipment. These devices used different communication protocols, such as Modbus RTU, Modbus TCP, BACnet/IP and BACnet/MSTP, making centralized monitoring difficult.
The customer deployed TC-100 Industrial Protocol Converters at equipment rooms and distributed field sites. Through optional RS485, RS232 or CAN interfaces, the TC-100 collected data from on-site devices and converted different protocols into a unified communication format. For building automation systems, the TC-100 supported BACnet/IP and BACnet/MSTP access; for industrial and metering devices, it supported Modbus RTU/TCP data acquisition. In projects requiring platform integration, OPC UA to Modbus conversion could also be configured based on the system architecture.
Using Ethernet or 4G/5G cellular communication, the TC-100 uploaded meter readings, equipment operating status, environmental data and alarm information to the customer’s cloud platform. The WAN and LAN design allowed engineers to separate upstream communication from local maintenance, improving deployment flexibility.
After implementation, the customer achieved centralized monitoring of building energy data and equipment status. The solution reduced manual inspection workload, improved maintenance response efficiency and provided a stable data foundation for smart energy management, building automation and multi-device system integration.
