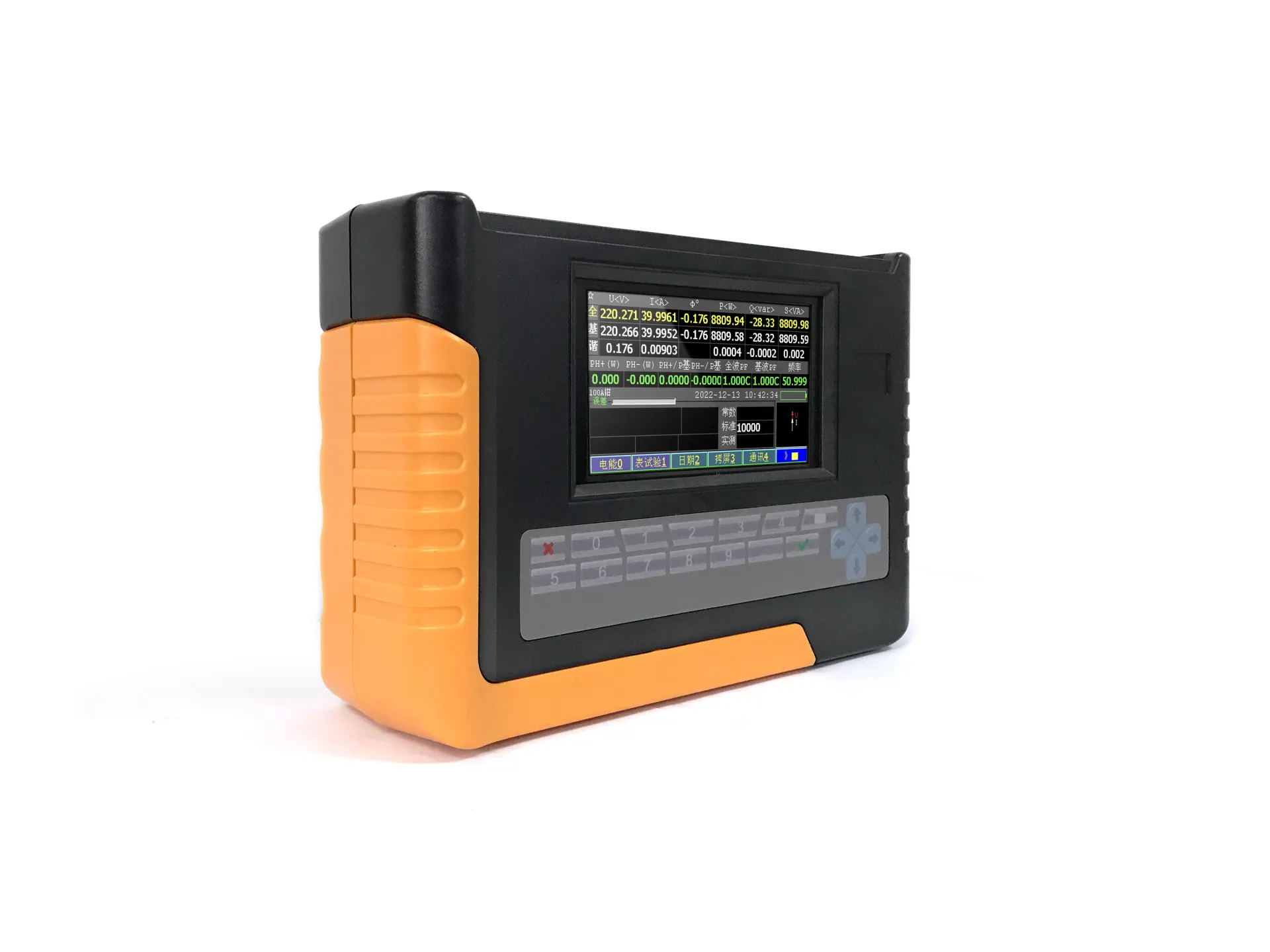

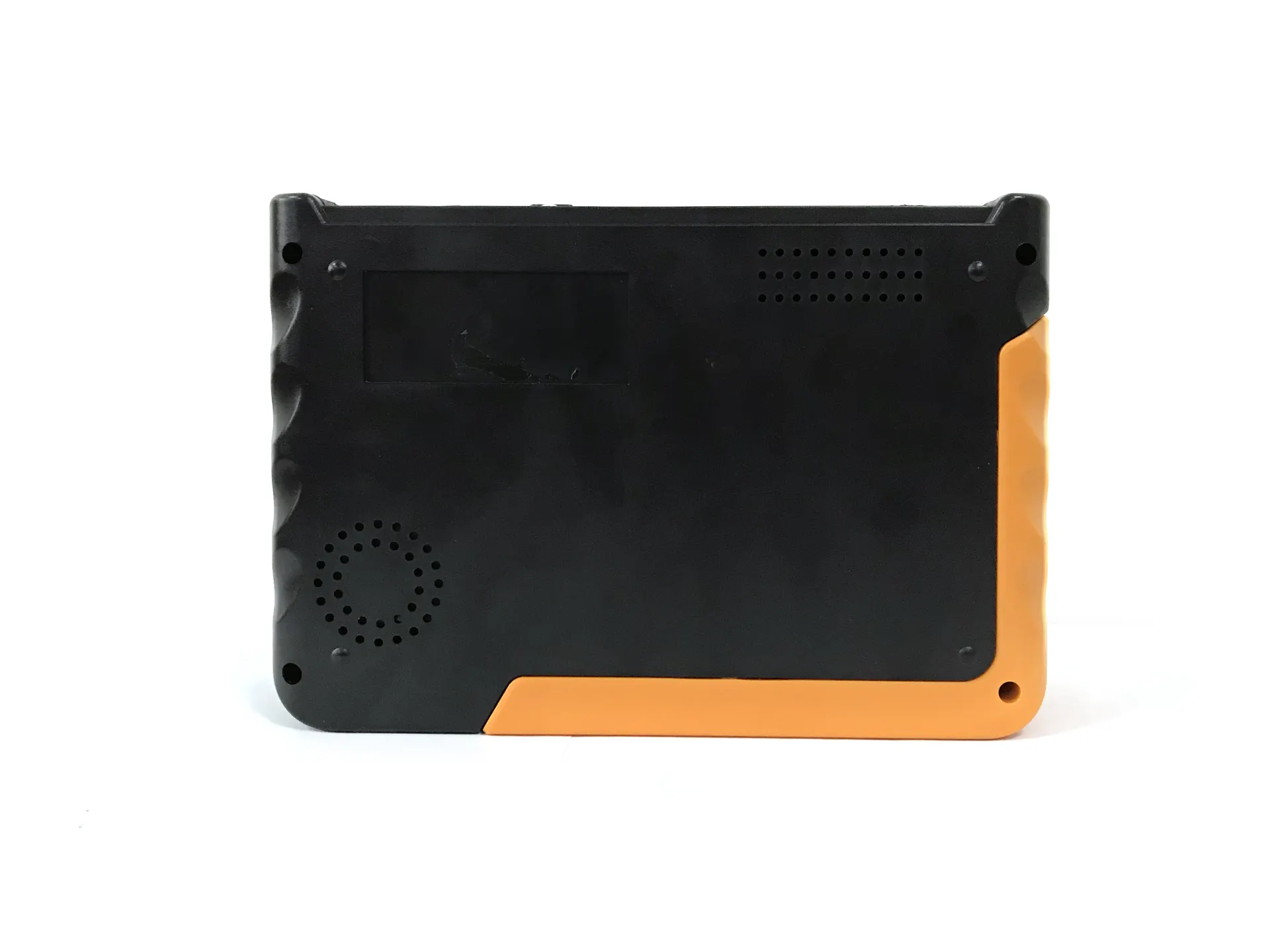

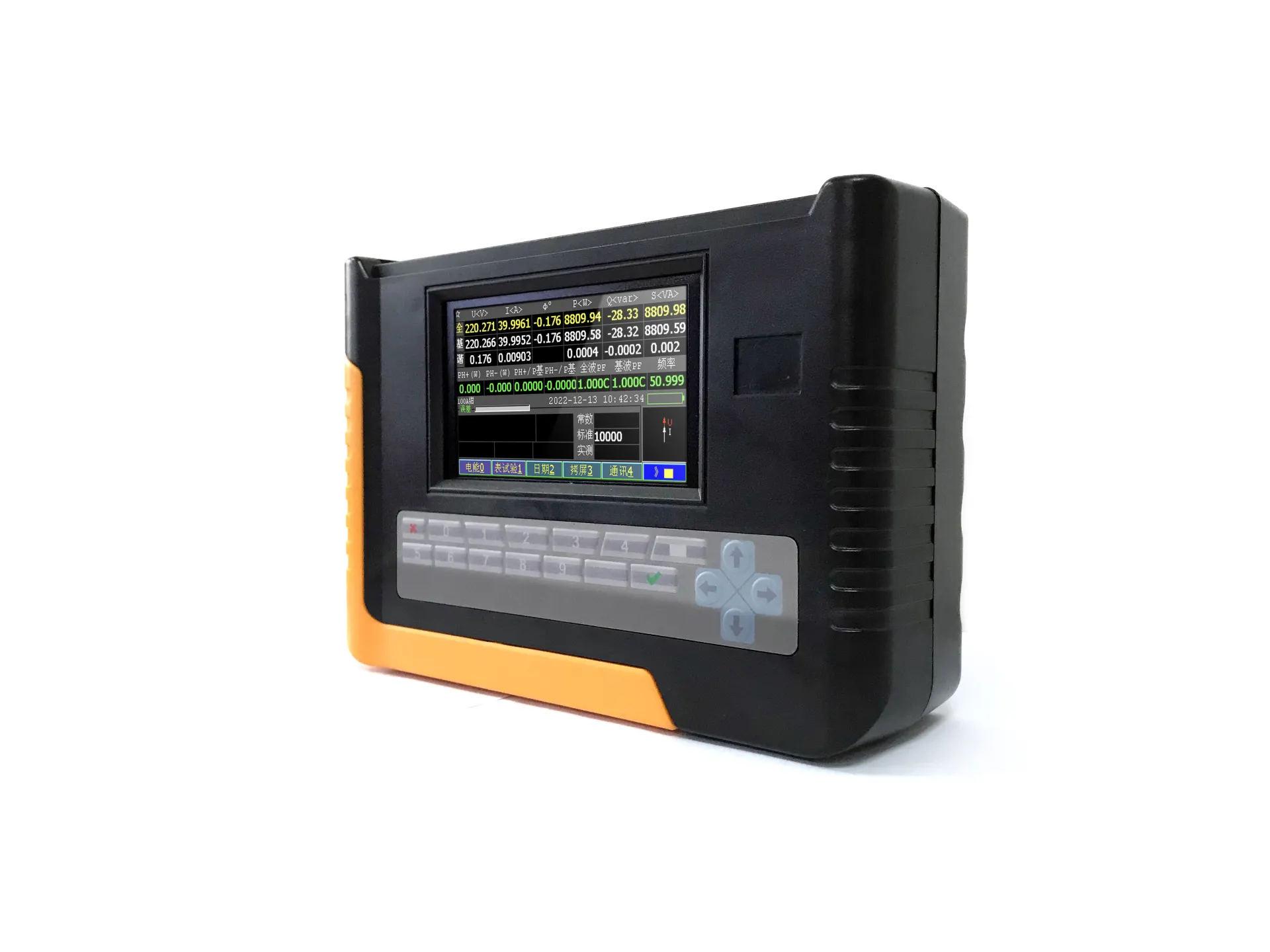

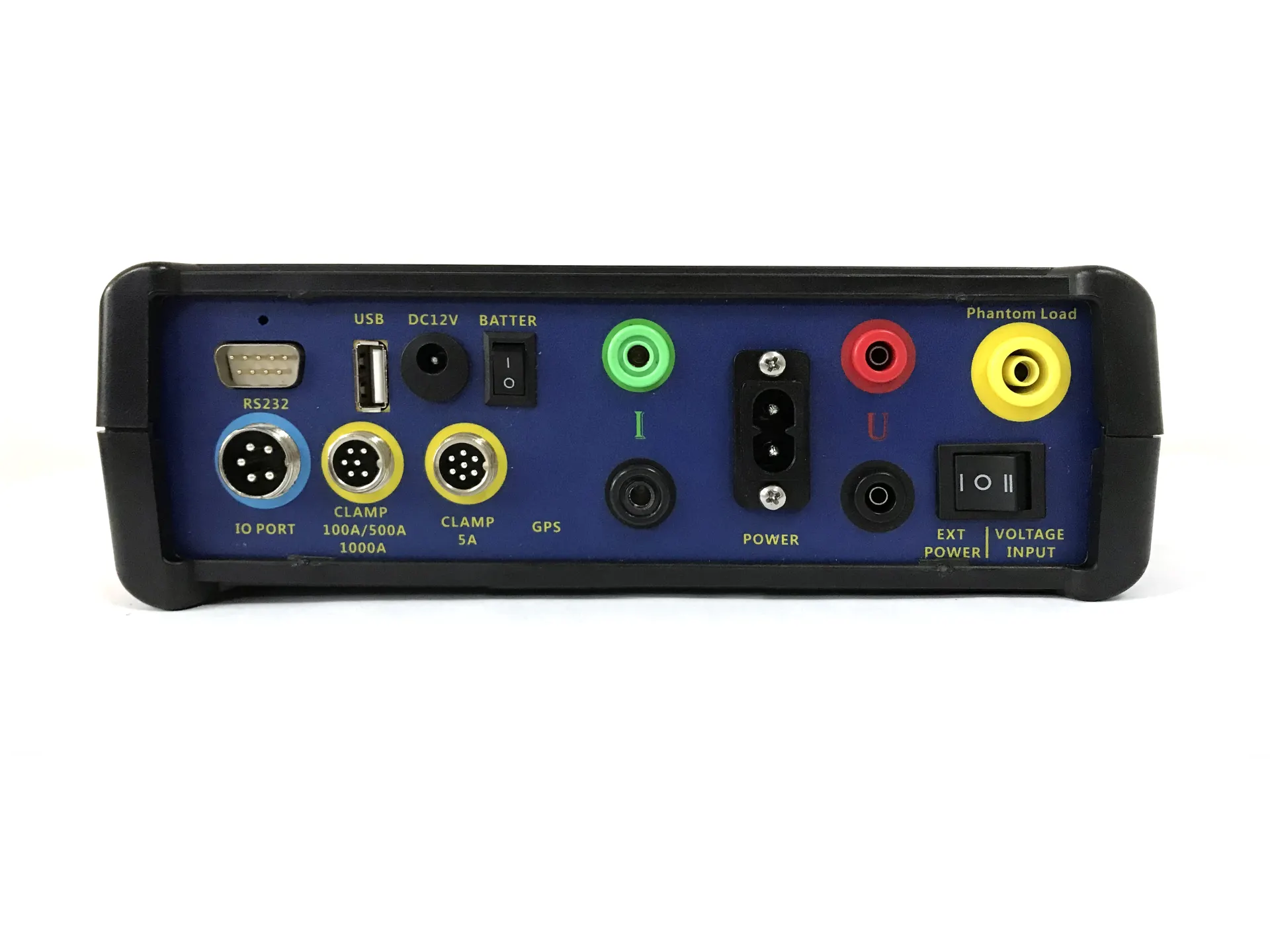

Three-Phase Power Calibrator
Product ID: TA-272-3P
TA-272-3P Three Phase Power Calibrator is a small, transparent, on-site calibration instrument of watt-hour meter used to verify accuracy, monitor the power energy online and detect pulse. It is able to detect unusual working conditions such as leaks, theft and others easily.
-
Starting value
0.5V
-
Rating value
480V
-
Input
45-65Hz
-
current
5A
Get Free Quote Now
Download
Features
Product Introduction
TA-272-3P is a small, handheld, on-site calibration instrument of watt-hour meter which may be applied to check accuracy, monitor power energy online and pulse sensing. It is able to detect unnatural working conditions such as leaks, theft among others easily. The TA-272 Series is aimed at resolving the problem of portability of the gadgets and offering electricians a better environment to work in.
Actually See Your Result
Write your information in black and white. Whereas our terminal is convenient enough to be detected, there are instances that you will be faced with the scenario whereby there are numerous sets of data that require to be looked at. You could easily do this by connecting the terminal to a printer and it can be configured and printable at the same time.
Wider Measurement Range
It possesses a more extensive span of measurement. Current and voltage have an additional broad range of measurement. TA - 272 -3P is capable of measuring a wide range of current with 500:1 range in order to provide accurate measurements. Its actual display is 10000:1 with a minimum start - up current of 1mA and also high voltage can be metered.
We Are the All-Mighty
We can be even greater than your fantasy. TA - 272 - 3P will be able to fulfil the regular testing parameter requirements and will be capable of being configured with a printer. In addition, with no pulse meters, TA - 272 - 3P may operate the electric energy accumulation.
Support Customization
It supports customization. It has competitive prices, timely delivery, good reputation, 24 hour response, 12 month warranty, continuous upgrades of its products, permanent technical support, customization services as well as the OEM/ODM services. It also favors customization of colors, customization of cable length and customization of logos.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Voltage Parameters | Voltage - Error range | 10V - 660V |
| Voltage - Starting measured value | 0.5V | |
| Voltage - Rating value | 480V | |
| Voltage - Error grade | ±0.05% | |
| Current Parameters | Current - Terminal rated Ie | 5A |
| Current - Terminal Range | 0.025A – 12A | |
| Current - Clamp rated Ie | 5A\20A\100A\500A\1000A\5000A | |
| Current - Clamp Range | 0.5% Ie – 1.2 Ie | |
| Current - Starting current | 0.02% Ie | |
| Frequency & Phase | Input frequency range | 45-65Hz |
| Frequency measuring error | ±0.01Hz | |
| Phase measuring range | -180°- 180° | |
| Max phase error | ±0.1° | |
| Harmonic Measurement | (Harmonic wave percentage) (harmonic wave electrical data) (harmonic wave electric energy measuring times) | 2-51 times |
| Pulse Parameters | Pulse constant (Note: Ie—rated current) - low frequency output -5A | 3600P、36000P、360000P/kWh(kvarh,kVAh) |
| Pulse constant (Note: Ie—rated current) - low frequency output - Other | 3600P、36000P、360000P *(5/Ie)P/kWh (kvarh, kVAh) | |
| Pulse constant (Note: Ie—rated current) - Internal high frequency -5A | 3.6 e+6P、3.6 e+7P、3.6 e+8P /kWh (kVarh) | |
| Pulse constant (Note: Ie—rated current) - Internal high frequency-Other | 3.6 e+7P、3.6 e+8P、3.6 e+9P(*5/Ib) /kWh (kVarh) | |
| The highest pulse input frequency | 50kHz | |
| Measurement Accuracy | 5A terminal - full wave/fundamental wave (kWh,P,U,I) | ±0.05% |
| 5A terminal - full wave/fundamental wave (Kvarh,Q,VA,Vah) | ±0.2% | |
| 5A terminal - harmonic wave (U.I.P.Q.S) | ±0.2%H （H=1+0.01k K=2-51） | |
| 5A clamp meter - full wave/fundamental wave (kWh,P,U,I) | ±0.2% | |
| 5A clamp meter - full wave/fundamental wave (Kvarh,Q,VA,Vah) | ±0.2% | |
| 5A clamp meter - harmonic wave | ±0.5% H （H=1+0.01k K=2-51） | |
| 5A clamp meter - Self- checking current circulating output current | 0.05A,0.1A,0.25A,0.5A,1A,2.5A,5A | |
| 5A clamp meter - self-checking error (Linear and angular difference) | ±0.1% | |
| Large current clamp - full wave/fundamental wave (kWh,P,U,I) | ±0.5% | |
| Large current clamp - full wave /fundamental wave (Kvarh,Q,VA,Vah) | ±0.5% | |
| Large current clamp - harmonic wave (U.I.P.Q) | ±1.0% H （H=1+0.01k K=2-51） | |
| Other Functions | Other - Ratio measurement | ±0.5% |
Explore our Solutions
Portable Calibration Tool with Lab-Grade Precision
Traditionally, in-the-field calibration involved the use of large instruments and necessitating a long time.
TA-272-3P Tespro lightweight three phase calibrator, with a 10-660 V input, harmonic analysis, CT /PT ratio testing, and Bluetooth/Wi-Fi wireless transmission. Constructed to be used in grid companies and calibration agencies.
Case
Product Case
A national energy service provider experienced constant difficulties in making sure that three-phase energy meters in industrial parks and commercial complexes are accurate. Technicians used several misaligned tools to verify meter error, diagnose a wiring problem and measure electrical parameters- created fragmented data, increased on-site operations and hard to resolve billing error or inefficient energy use.
The TA-272-3P Three-phase Calibration Terminal was able to deal with these pain points with its all-in-one design. It integrates accurate error calibration, total parameter measurement (voltage, current, power, 2 nd to 51 st harmonics), and wiring fault detection into a single instrument.
It has USB, Bluetooth, and WIFI connection and therefore allows transfer of data smoothly to central systems, and has adaptive communication features which makes it compatible with different meters.
The terminal is highly accurate even when dealing with large current ranges which avoids the use of guesswork when diagnosing problems and using the compensation to determine the electricity.
