Communication Optical Probe
Product ID: TP-USB-IrDA

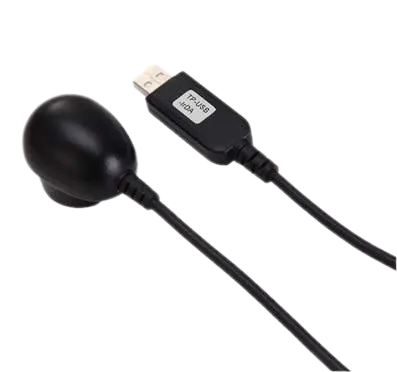

The TP-USB-IrDA is used for local serial communication by IrDA between metering terminal and meter. One end adopts the SIR IrDA mode, while the other end connects to a PC or HHT with USB-A or USB-C interface.
-
Baud rate
9600/19200/38400/57600/115200, 5 choose 1
-
Standard
SIR IrDA , IrPhy 1.0 Standard IrDA link distance of 1 m
-
Interface
USB2.0 and USB3.1
-
Temperature
-40℃~+70℃
Get Free Quote Now
Download
Features
Product Introduction
The TP-USB-IrDA is used for local serial communication by IrDA between metering terminal and meter. One end adopts the SIR IrDA mode, while the other end connects to a PC or HHT with USB-A or USB-C interface.SIR IrDA mode: 9600bps to 115200 bps, equivalent to the basic serial infrared standard with the physical layer version IrPhy 1.0.
Strong Compatibility
It has strong compatibility, being compatible with all brands and types of meters, fully compliant with different protocols, and supporting all operating systems.
Support Ultra-high Speed
It supports ultra-high speed, with communication rates up to 300 - 115200 bps, and uses transparent transmission mode for seamless integration with instruments.
Excellent Performance in Harsh Environment
Made of 100% PC material, the optical probe performs excellently in harsh environments. With top - level enclosure material, a strong magnet, and a soft, durable cable
Support Customization
It supports customization, with competitive pricing, timely delivery, a good reputation, 24 - hour response, 12 - month warranty, continuous upgrades, permanent technical support, and OEM/ODM services.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Communication | Communication Interface | USB2.0 and USB3.1 |
| Supported Standard | SIR IrDA , IrPhy 1.0; Standard IrDA link distance of 1 m | |
| Baud Rate | 9600/19200/38400/57600/115200, 5 choose 1 | |
| Maximum B.R. | 115200 bps | |
| Cable & Interface | Connector | USB-A or USB-C |
| Cable length | 2M in normal and 3M/4M/5M for option | |
| Hardware & Controls | Sensor Light Wave Length | 850-900nm |
| Fastening | Strong magnetic adhesion | |
| Magnet Holding Power | N40 / N52 (optional) | |
| Mechanical & Enclosure | Mechanical | PC |
| Diameter & Height | Optical port 32mm Diameter / L45xH30mm | |
| Weight | 95 gr | |
| Environmental | Enviroment | Application temperature: -40℃~70℃ in normal |
| Physical Specifications | Protection Class | IP 54 |
Explore our Solutions
Reliable Optical Communication for Smart Metering
Modern AMI systems require stable and accurate data capture at the meter level. Manual meter reading was time-consuming and error-prone.
Tespro's optical probes, including the TP-BT and USB series, enabled automatic data retrieval via optical ports, supporting various meter brands and protocols. Bluetooth and USB models offered flexibility for both field and desktop use.
Case
Product Case
Dec. 12, 2020 – An Egyptian client has purchased 10,000 TP-BT-IEC optical probes directly from our company, set to be deployed across urban power grids, smart meters, and remote industrial monitoring systems.
The probes are primarily used for IEC-compliant electricity, water, and gas meter data collection, with a standout USB storage function that eliminates the need for on-site laptops—data is stored locally and seamlessly transferred to computers post-collection.
The probes completely replace outdated manual meter reading, sparing workers from carrying bulky equipment and tedious paperwork in hot conditions. By streamlining the data collection process, they’ve boosted operational efficiency significantly while cutting labor costs for the client.
Feedback highlights unparalleled convenience and time savings, with the client praising the probes as a transformative solution that simplifies workflows and enhances data reliability.
Download Materials
Frequently Asked Questions
To help you better understand our products' performance, compatibility, and usage, we’ve compiled answers to commonly asked questions. If your inquiry isn’t listed below, feel free to contact us directly for further assistance.
Contact Us
-
Are these products compatible with my current system?
-
Most products support cross-platform protocols and work with Android, iOS, and Windows systems. Please refer to the product specifications for exact compatibility.
-
What communication methods are supported?
-
Most devices support multiple communication modes such as Bluetooth, USB, and Wi-Fi to meet various application needs.
-
Do the products offer water and dust protection?
-
Yes, most of the products are rated at least IP54, providing resistance against dust and water splashes in industrial environments.
-
Can data be transmitted remotely?
-
Some models support wireless data transmission via Wi-Fi or 4G/5G networks, enabling real-time upload to cloud platforms or backend systems.
-
How are the devices powered?
-
Devices typically feature rechargeable batteries with runtimes ranging from 8 to 24 hours, and can be recharged via USB.
-
Do you offer product customization?
-
Yes, we provide customization options such as protocol support, casing design, and mounting solutions. Please contact us for more details.
