Port count should follow the real topology: list PLCs, HMIs, cameras, gateways and service ports, then choose three or five ports. Enough ports may remove an external switch, but segmentation and redundancy still require design.
Key Takeaways
- Three-port models fit compact sites
- Five-port models fit multi-device cabinets
- Spare ports should match a defined expansion plan
How Does the Feature Work?
Port count should follow the real topology: list PLCs, HMIs, cameras, gateways and service ports, then choose three or five ports. Enough ports may remove an external switch, but segmentation and redundancy still require design. In a real project, three-port models fit compact sites and five-port models fit multi-device cabinets must be considered in the same architecture. Begin with the workload, field devices and operating model rather than one marketing specification.
Which Configuration Conditions Matter Most?
A practical sequence is to confirm network topology and device ip count, then verify wan source and vlan requirements, and finally test spare ports should match a defined expansion plan with the real equipment. Record pass criteria so the design can be repeated across sites.
Testing, Limits and Failure Cases
Counting devices alone can overlook the WAN, service port, cascaded equipment, VLANs and bypass requirements. Public content and project documents should therefore state model, firmware, regional network, options and environmental conditions and avoid unverifiable claims such as 'works for every project' or 'absolute reliability'.
How Tespro Fits

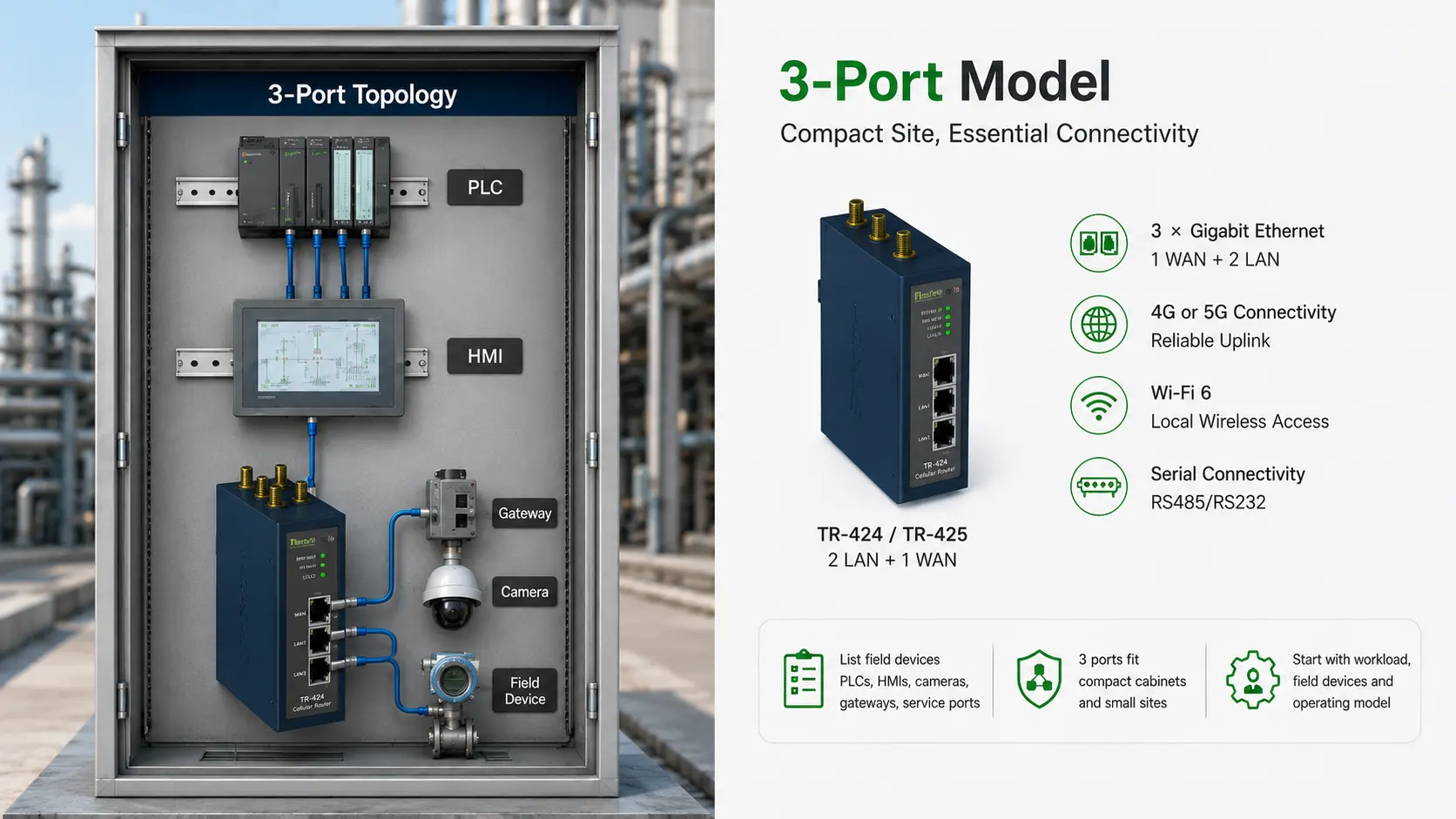

Tespro TR-424/TR-425 provide 2 LAN + 1 WAN; TR-444/TR-445 provide 4 LAN + 1 WAN, allowing port sizing in both 4G and 5G variants.
Decision and Verification Table
| Decision factor | What to verify |
| Three-port models fit compact sites | Confirm against network topology and document pass/fail criteria in the pilot or site test. |
| Five-port models fit multi-device cabinets | Confirm against device ip count and document pass/fail criteria in the pilot or site test. |
| Spare ports should match a defined expansion plan | Confirm against wan source and document pass/fail criteria in the pilot or site test. |
Compatibility and Selection Checklist
- ✓ Network topology
- ✓ Device IP count
- ✓ WAN source
- ✓ VLAN requirements
- ✓ Service interface
- ✓ Expansion plan
Frequently Asked Questions
Q: Does a port shortage always require a five-port model?
A: No. An industrial switch is another option, but compare space, power, cost and failure points.
Q: Can the WAN port be reassigned as LAN?
A: Port-role flexibility depends on firmware configuration and needs technical confirmation.
Q: How many spare ports are appropriate?
A: Reserve ports for known expansion rather than vague growth, and retain at least a practical service or temporary-access path.
