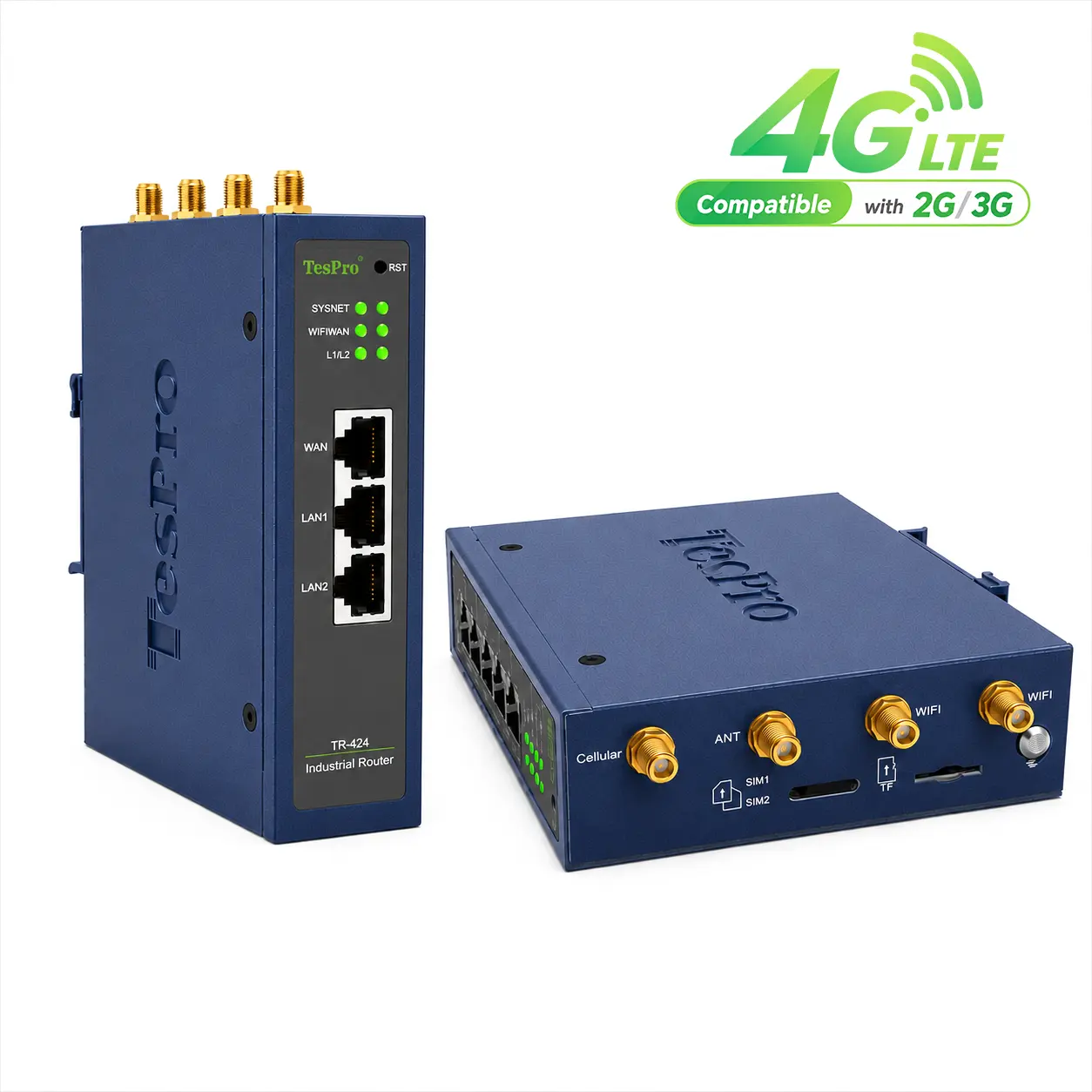

Industrial Cellular Router
Product ID: TR-424
TR-424 Smartstart Industrial Cellular Router is an industrial grade cellular router that has industrial grade protection, wide temperature range, wide voltage range etc. It is capable of developing fast and stable cellular transmission network easily.
-

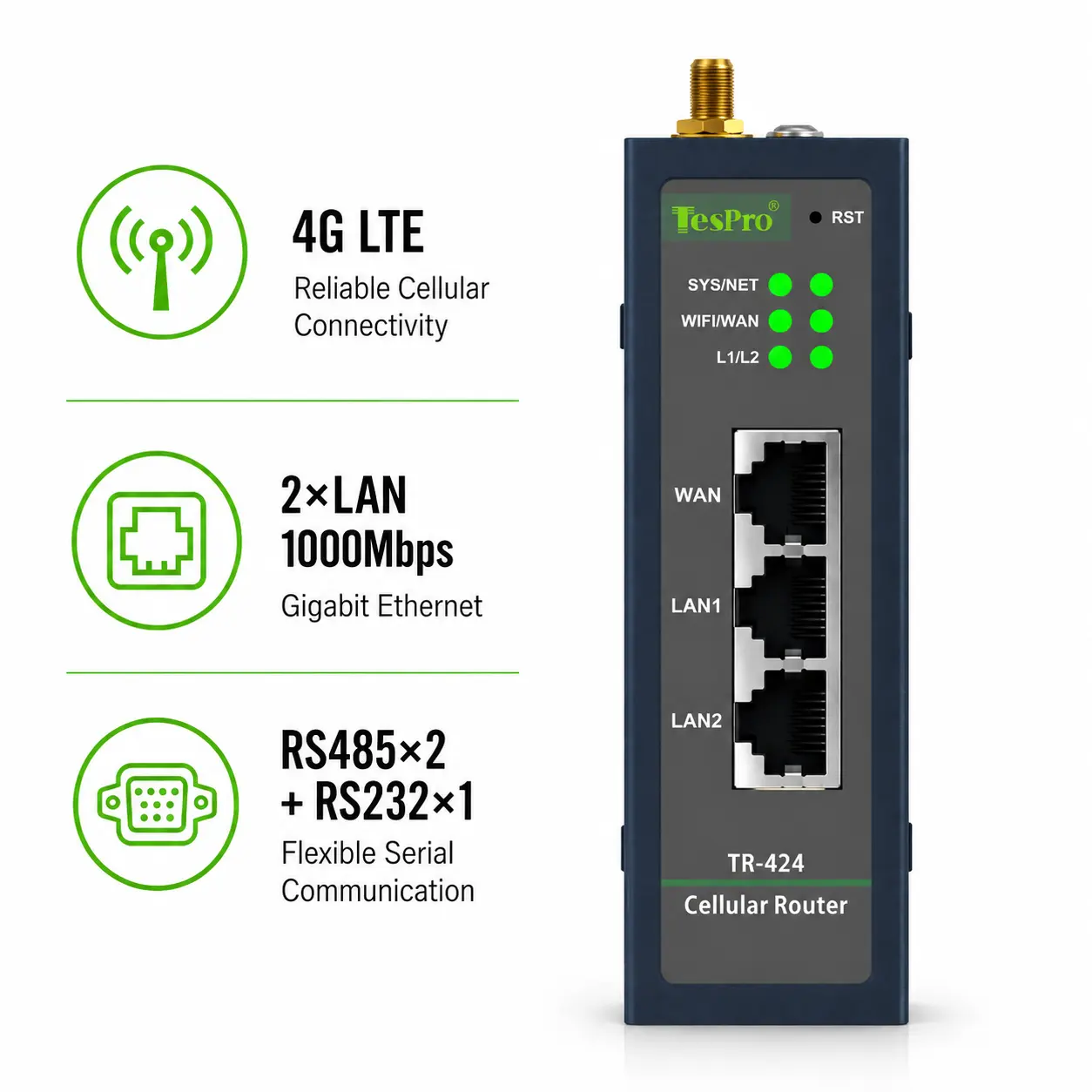

Network
4G LTE+2*LAN 1000Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40°C~+75°C
-
Power
12-36V
Get Free Quote Now
Download
TR-424 Smartstart Industrial Cellular Router Video

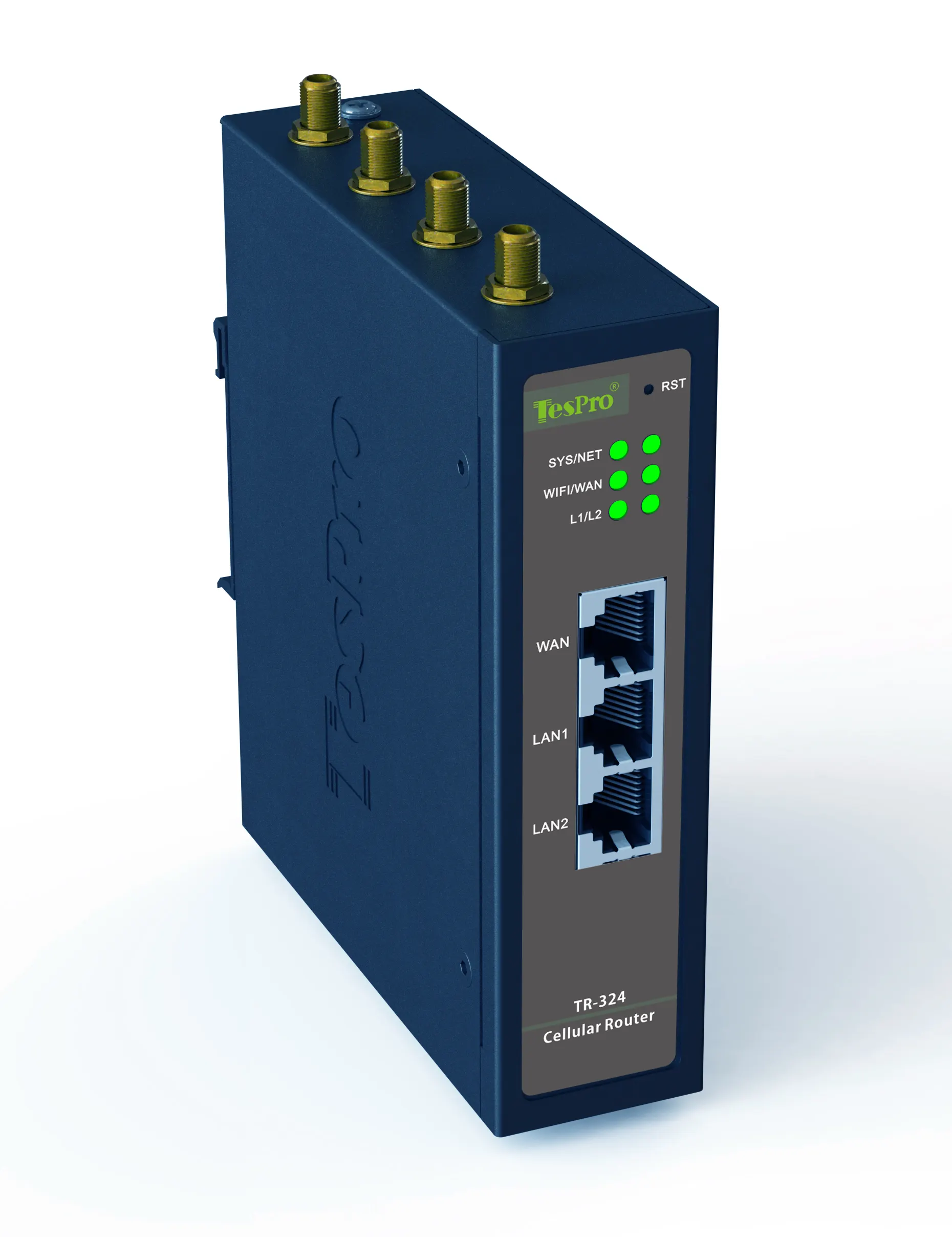

The video SmartStart Industrial Cellular Router TR-324 illustrates the superior LTE/5G connectivity, toughness, and durability, safe remote access, and optimization of networking of automation, utilities, and smart IoT infrastructure.
Features
Product Introduction
TR-424 is a cellular router that is of industrial grade and with industrial grade protection, wide temperature, wide voltage range, etc. It can construct a high speed and reliable cellular transmission network with ease. Offer cellular long-distance data transmission services to consumers over public LTE networks (or VPDN proprietary networks).
It possesses features of high levels of universality, standardized interface, extensive applicability areas, consistent performance and suitability in complex environments. Its wide application can be implemented in the international industrial Internet, intelligent transportation, robots and other industries of the world.
High-Performance Hardware & Fast Connectivity
-
Powerful Computing & Hardware Acceleration: Equipped with a dual-core ARM Cortex-A53 processor @ 1.3GHz featuring hardware NAT acceleration, 512MB RAM, and 256MB storage to ensure high throughput and reliable operation in complex industrial environments.
-
High-Speed Dual-Band Wi-Fi 6 & Gigabit Ports: Supports Wi-Fi 6 (802.11ax) dual-band concurrent speeds up to 3000Mbps (574Mbps on 2.4GHz + 2402Mbps on 5GHz), paired with 5 Gigabit Ethernet ports (4 LAN + 1 WAN) for high-bandwidth data transmission.
-
Cellular Network Connectivity: Flexible 4G/5G cellular network expansion via Mini PCIe interface with SIM card failover strategies to guarantee zero downtime for field operations.
Energy & Carbon Management
-
Real-Time Energy Monitoring & Analysis: Built-in professional energy management services providing multi-dimensional real-time consumption monitoring, historical trend analysis, time-of-use (TOU) electricity cost calculations, and abnormal power usage alerts.
-
Carbon Footprint & Accounting: Integrated carbon emission factors and calculation engine to enable carbon footprint tracking, carbon balance ledger generation, and audit compliance—helping enterprises achieve sustainability goals.

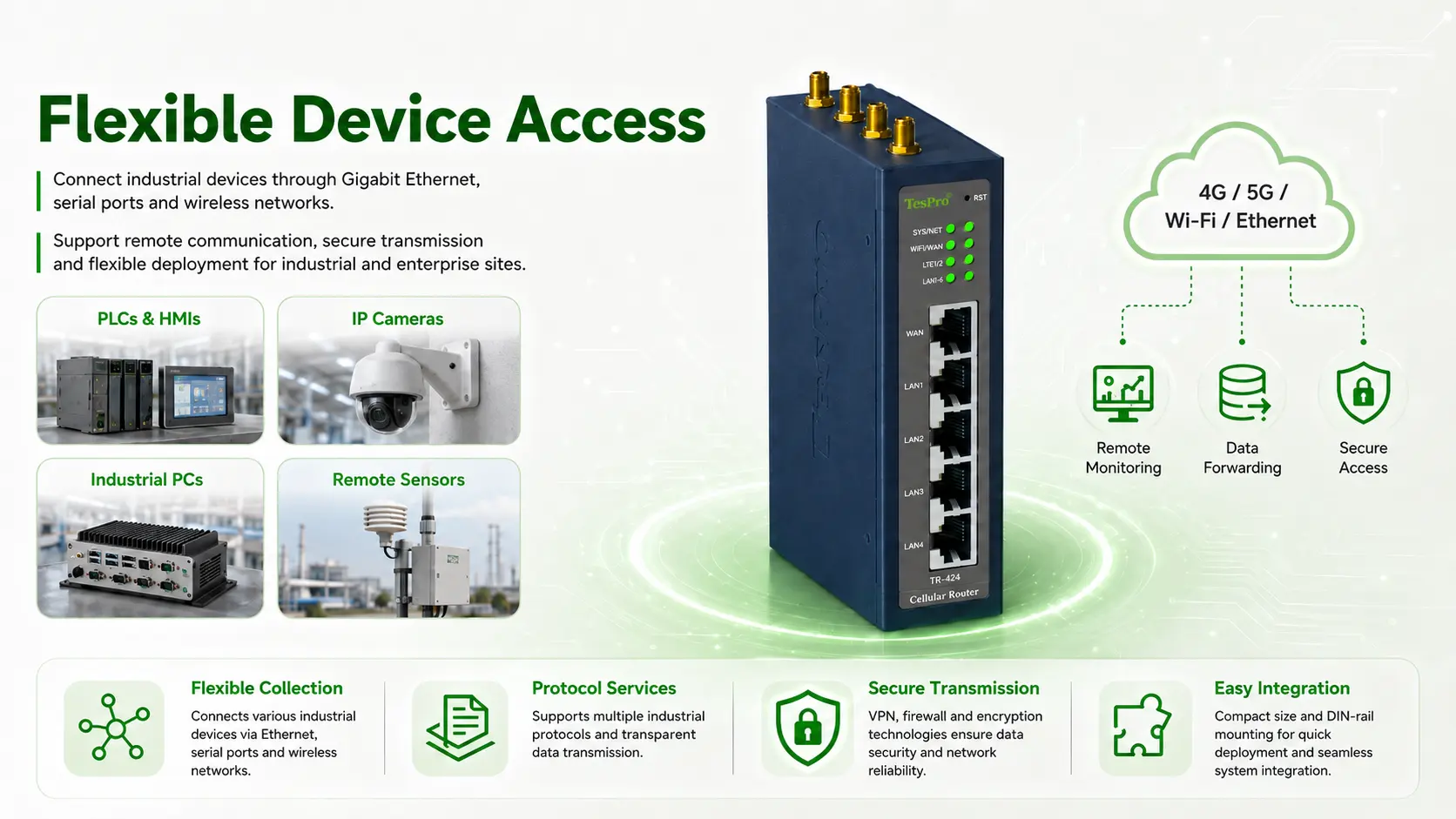

Versatile IoT Interfaces & Multi-Protocol Gateway
-
Integrated Serial Ports: Built-in 3 industrial serial ports (2×RS485 + 1×RS232) supporting UDP multicast communication and raw field data debugging.
-
Modbus & BACnet Dual Protocol Gateway:
-
Modbus Gateway: Supports Modbus RTU/TCP Master/Slave roles. Collects data from sensors and field devices, and reports northbound to the cloud via MQTT, TCP, UDP, HTTP, or OPC UA (Client/Server).
-
BACnet Gateway: Supports BACnet/IP and BACnet MS/TP data acquisition for seamless building automation integration, featuring built-in Modbus TCP Server mapping.
-
Industrial-Grade Security & Multi-Protocol VPN
-
Industrial Firewall: Built on the nftables (firewall4) architecture, supporting security zone isolation, SYN Flood protection, port forwarding, and NetCtrl/DPI application-layer traffic identification.
-
Comprehensive VPN Tunnels: Supports OpenVPN, WireGuard, IPsec (strongSwan), and PPTP VPN protocols to build secure Site-to-Site connections and encrypted remote access networks.

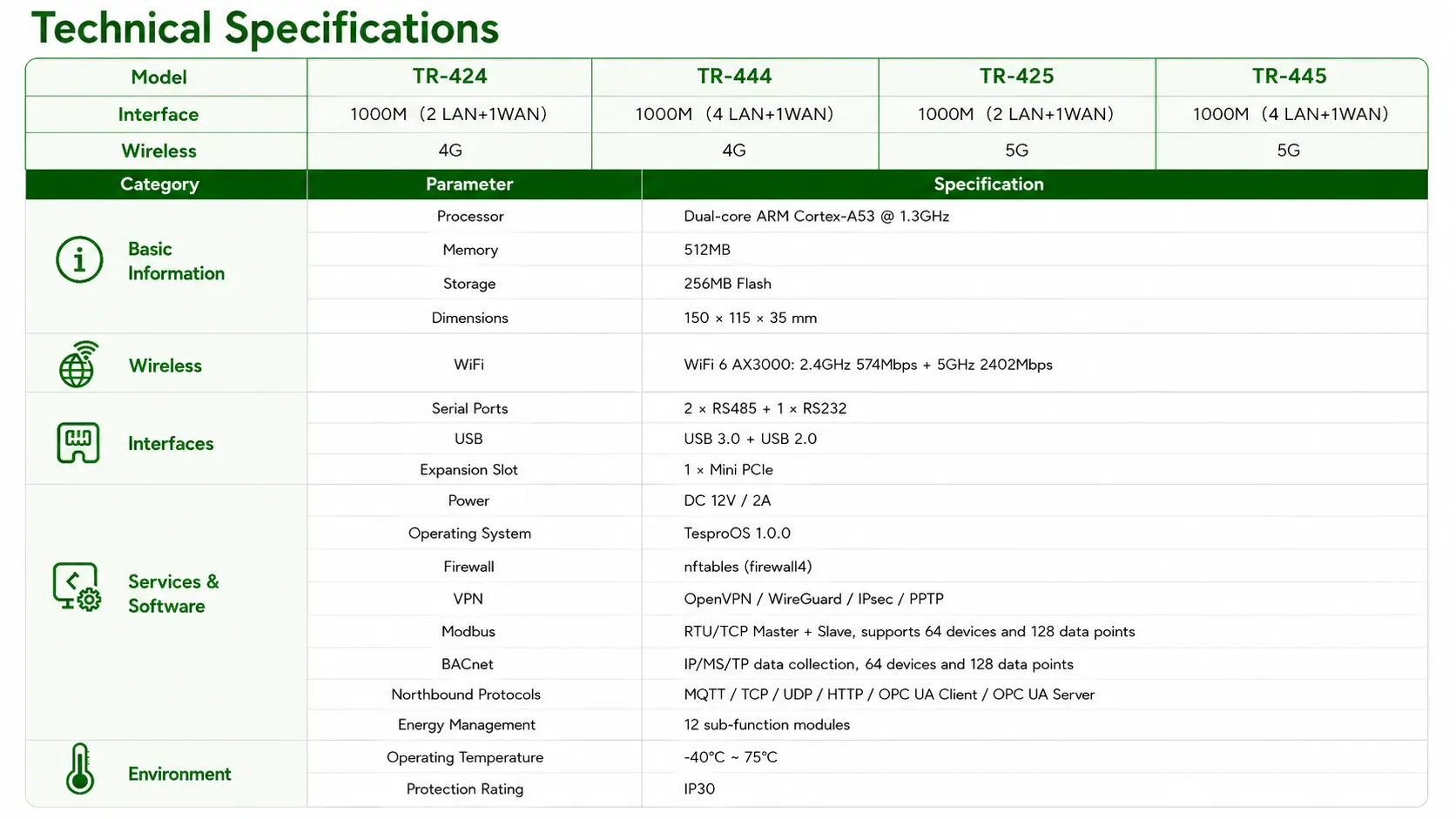

Tech Specs
