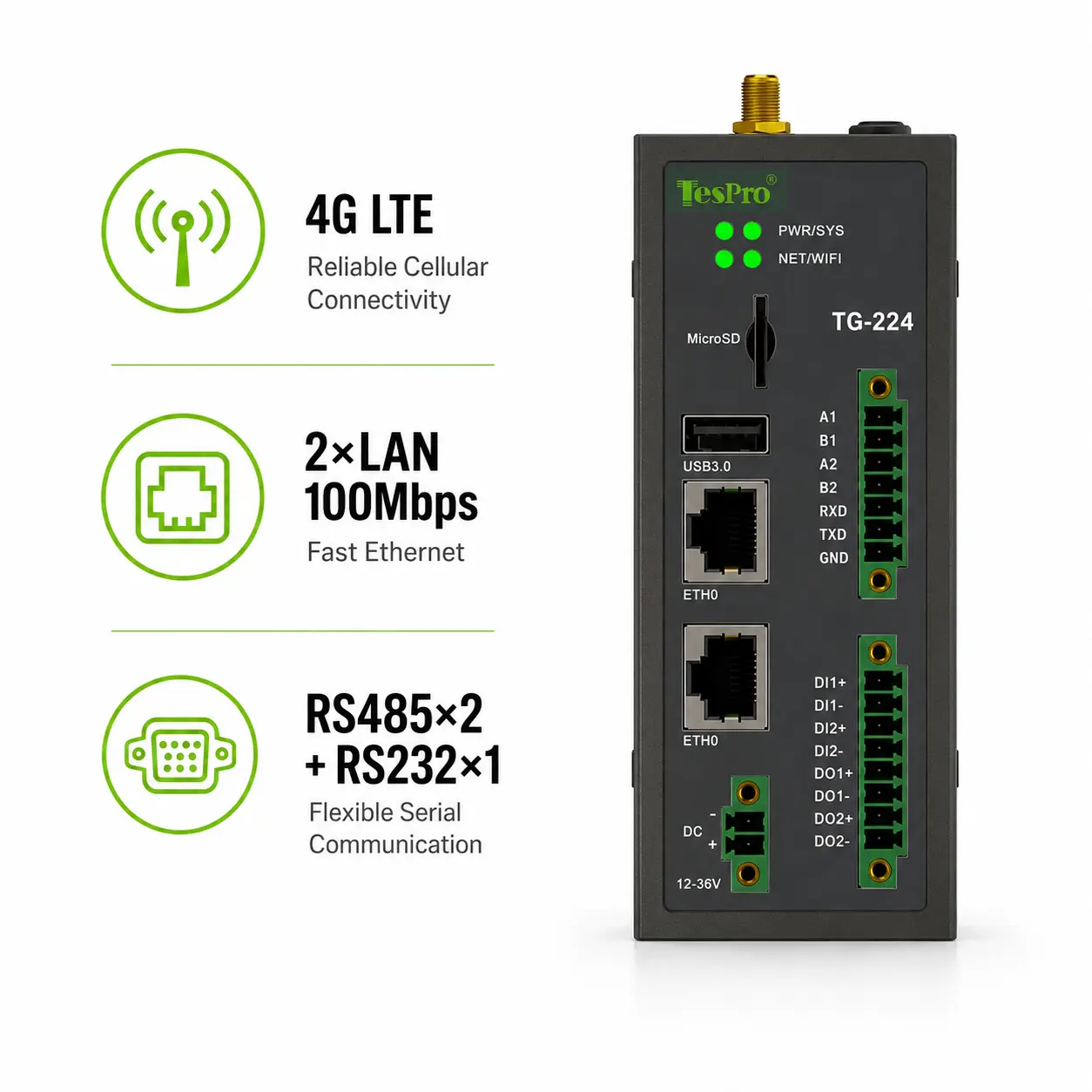

Industrial Gateway
Product ID: TG-224
TG-224 Intelligent Industrial Gateway is an industrial-grade gateway device launched by Tespro. It features high bandwidth, low latency and high reliability, supporting 2G, 3G, 4G and 5G networks to provide wireless network connectivity for IoT devices.
-
Network
4G LTE+4*LAN 100Mbps
-
Interface
RS485x2 + RS232x1
-
Temperature
-40 °C~75 °C
-
Power
12-36VDC
Get Free Quote Now
Datasheet Download
TG-224 Intelligent Industrial Gateway Video
The TG-224 Intelligent Industrial Gateway video showcases secure data communication, real-time processing, robust industrial design, and seamless IoT connectivity for smart factory and automation environments.
Features
Product Introduction

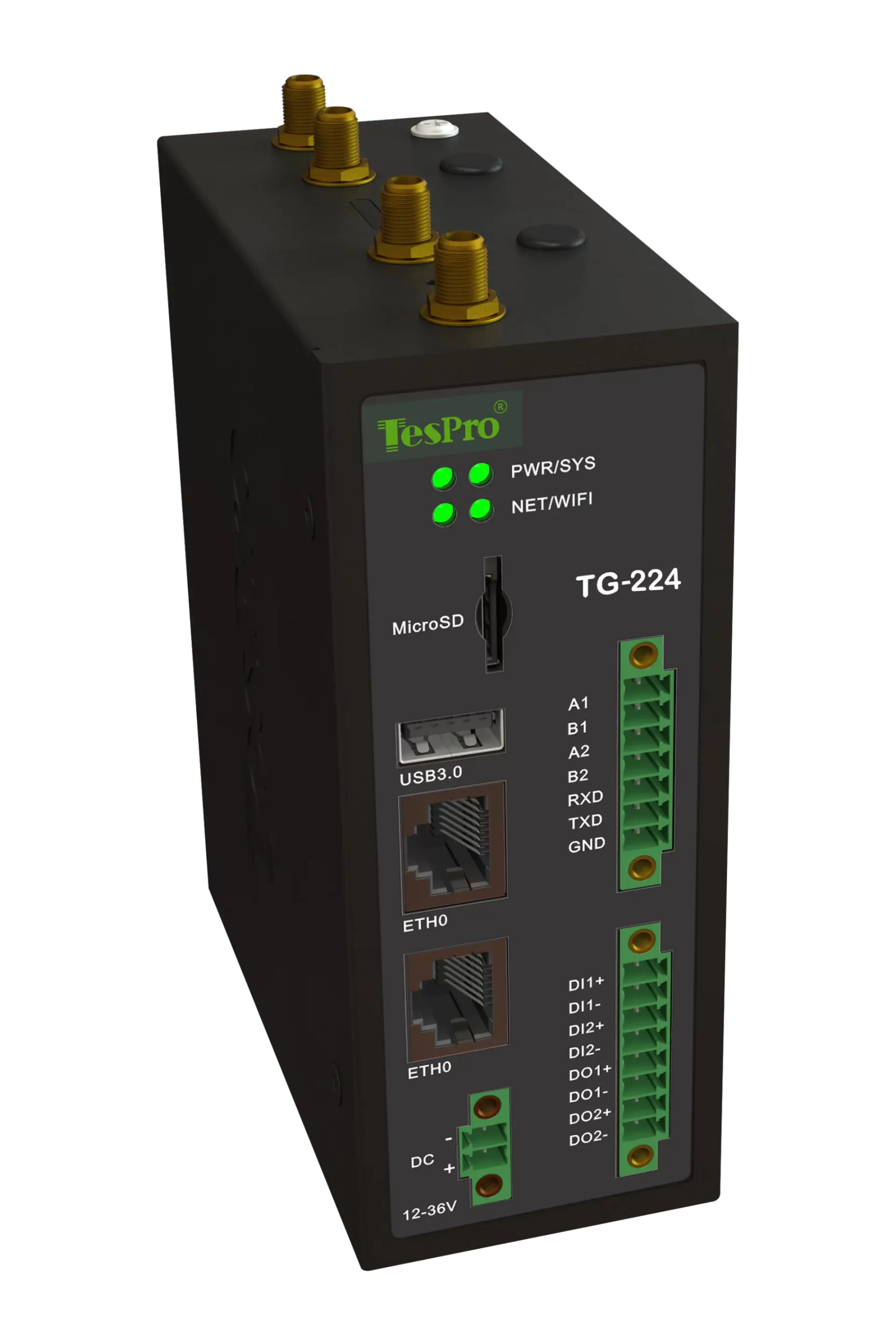

TG-224 Intelligent Edge Computing Gateway is an industrial-grade gateway device launched by Tespro. It features high bandwidth, low latency and high reliability, supporting 2G, 3G, 4G and 5G networks to provide wireless network connectivity for IoT devices. Equipped with rich upstream and downstream interfaces, the TG-224 includes 2 ports of 100M/1000M Ethernet, 2 RS485 interfaces, 1 RS232 serial port, and 4 channels of GPIO input and output, meeting the device connection needs of different IoT scenarios.The operating system of the TG-224 Gateway is developed based on OpenWrt/LEDE, supporting programming languages such as C/C++, Lua, Go and Python. Users can independently develop relevant applications on the system.
Multi - Protocol Compatibility
It supports standard protocols such as Modbus, RTU/TCP, MQTT, OPC, HTTP, JSON custom protocol, Environmental Protection 212 Protocol, Ministry of Transport Standard 808, various instrument protocols, and Ministry of Housing and Urban - Rural Development Energy Consumption Protocol, as well as third - party upper - computer communication protocols, etc.
Structural Design
It adopts wide - temperature key chips with low power consumption and a fanless design. Combined with the heat dissipation of the aluminum alloy shell with good heat dissipation performance, it ensures the long - term stable operation of the gateway.
Edge Computing Function
The gateway has built-in computing and logical business capabilities, supporting offline governance. It complements cloud-edge collaboration and edge computing to provide device data for the cloud platform.
Application Scenarios
It is widely used in more than 100 IoT industry application scenarios, such as smart factories, industrial Internet, smart cities, smart parks, smart agriculture and smart environments.
Tech Specs
Metering Equipment Technical Data
| Category | Parameter Name | Parameter Description |
| Basic Information | Power Supply | DC: 12-36VDC |
| Indicator Lights | Power/Network/Communication | |
| Region/Carrier | Global | |
| Reference Dimensions | 125mm108mm50mm | |
| Frequency Band Information | LTE-FDD | B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
| LTE-TDD | B38/39/40/41 | |
| WCDMA | B1/2/4/5/6/8/19 | |
| GSM/EDGE | B2/B3/5/8 | |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS (Optional) | |
| Data Information | LTE-FDD | Maximum 10 Mbps (dl) / 5 Mbps (ul) |
| LTE-TDD | Maximum 8.96 Mbps (dl) / 3.1 Mbps (ul) | |
| WCDMA | Maximum 384 kbps (dl) / Maximum 384 kbps (ul) | |
| EDGE | Maximum 296 kbps (dl) / Maximum 236.8 kbps (ul) | |
| GPRS | Maximum 107 kbps (dl) / Maximum 85.6 kbps (ul) | |
| Output Power | LTE-FDD/TDD | Class 3 (23 dBm ±2 dB) |
| WCDMA | Class 3 (24 dBm +1/-3 dB) | |
| GSM850 | Class 4 (33 dBm ±2 dB) | |
| Serial Port Parameters | Number of Serial Ports | 1*RS232 Port, 2*RS485 Port |
| Serial Port Pins | RS232-Terminal (V/TX/RX/GND), RS232-DB9 (2-RX/3-TX/5-GND); RS485-Terminal (A/B/G) | |
| Baud Rate | 300-115200 bps | |
| WIFI Antennas | 2*Bluetooth Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| 4G Antennas | 2*4G Antennas, SMA Male Connector (Outer Thread, Inner Hole) | |
| Buttons | Reset | |
| 2P Socket | Power Socket | |
| 7P Socket | 2*RS485, 1*RS232 | |
| 8P Socket | 2*DI,2*DO | |
| TF Card | Micro SD Card | |
| USB | USB3.0 | |
| Network Interface | 4G LTE+4*LAN 100Mbps | |
| Functions | Collection Methods | Real-time Collection/Reporting, Interval Collection/Timed Reporting, Customized |
| Electric Meter Protocols | DL/T 645-2007, IEC 62056-21,IEC 1107, IEC 61850,DLMS | |
| Industrial Protocols | MODBUS RTU,MODBUS TCP,BACnet,M-bus,OPC UA | |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPS, ARP, SSH2, DDNS, etc. | |
| Temperature & Humidity Range | Operating Temp & Humidity | -40~ +75 °C;10%～95% RH |
| Storage Temperature | -20 ~ +80 °C | |
| Reliability | Safety Protection Functions | Reverse Polarity Protection Overvoltage & Overcurrent Protection Lightning Protection Surge Protection |
