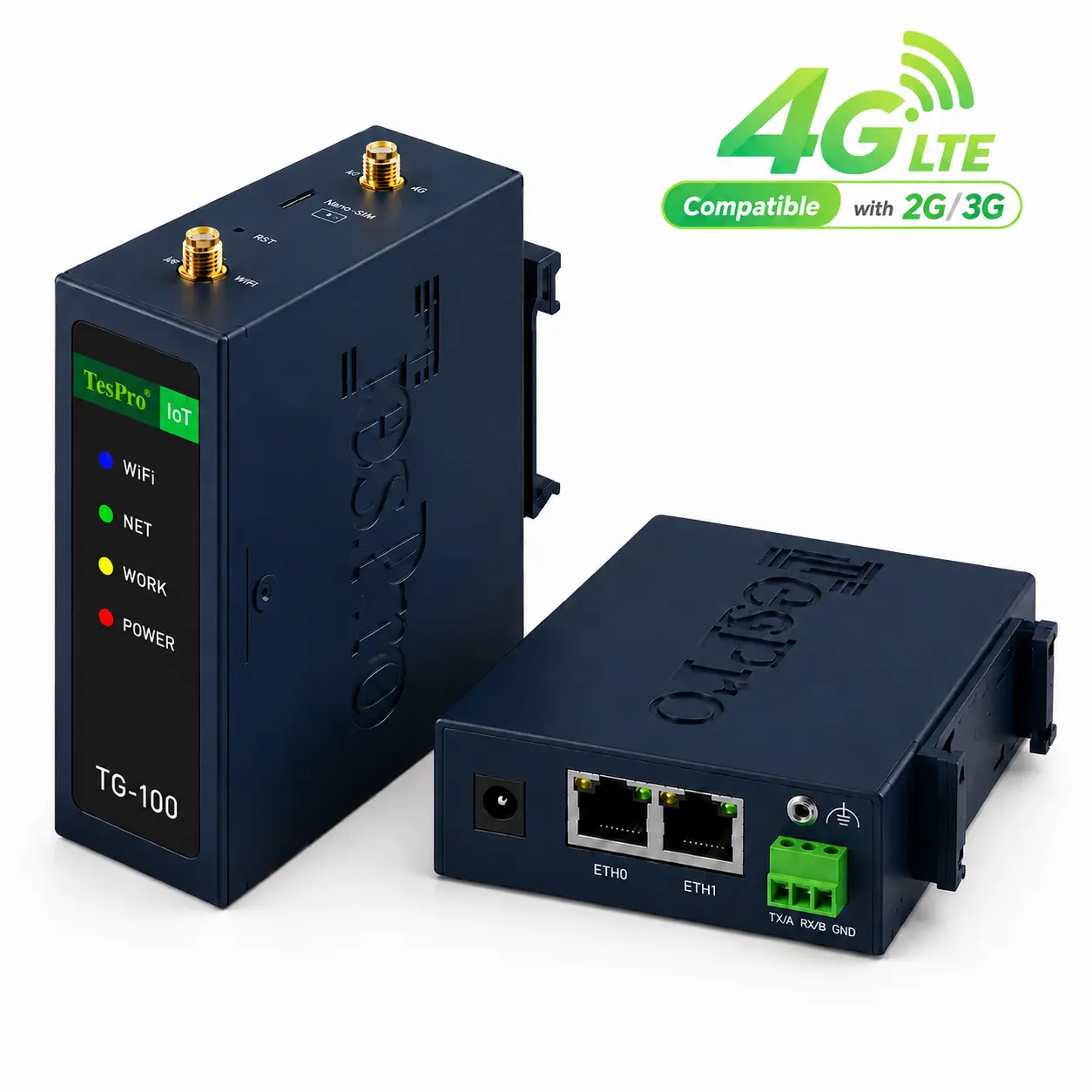

Industrial Gateway
Product ID: TG-100
Tespro TG-100 is an industrial-grade edge gateway integrating 2G/3G/4G cellular, 100Mbps Ethernet, Wi-Fi 4（2.4GHz）, and VPN technology for secure IoT networking. Driven by TesproOS with a user-friendly Web UI, it offers serial communication, Modbus/BACnet protocol conversion, and energy monitoring capabilities for seamless integration in smart factories and industrial automation.
-
Network
2G / 3G / 4G
-
Interface
1*WAN + 1*LAN 10 / 100 Mbps
-
Wi-Fi
Wi-Fi 4（802.11b/g/n）
-
Serial port
1*RS232 / 1*RS485
Get Free Quote Now
Datasheet Download
Features
Core Advantages
4G/3G/2G & Dual SIM/eSIM
Supports extensive 2G/3G/4G cellular network access, with 4G LTE options including Cat1/Cat4/Cat6. Equipped with dual SIM and dual eSIM capabilities to enable flexible switching and link backup.
100Mbps Ethernet Interface + Wi-Fi
Equipped with a 100Mbps Ethernet port supporting WAN/LAN auto-sensing and Wi-Fi 4 (2.4 GHz) wireless access, it combines stable wired transmission with convenient wireless connectivity, meeting the needs for industrial equipment networking, data transmission, and on-site network deployment.
Single Serial Port Interface
Integrates one serial port supporting either RS232 or RS485 (selectable), facilitating connection to various industrial devices for reliable data communication.
TesproOS System & Remote O&M
Equipped with the proprietary TesproOS operating system and a visual web-based management dashboard, it enables full-lifecycle device management. It supports real-time cluster status monitoring, remote batch parameter configuration, log diagnostics, and cloud-based OTA firmware upgrades; combined with multi-layer VPN encryption, it facilitates efficient O&M without the need for on-site visits.
Rich Protocol Ecosystem
Integrates northbound cloud protocols (MQTT/OPC UA), industrial fieldbuses (Modbus/ProfiNet), and power/energy protocols (DLT645/IEC61850). Combined with OpenVPN/IPSec encryption and rapid custom protocol development, it simplifies device onboarding for plug-and-play deployment and accelerates OT-IT data convergence.
Excellent Weather Resistance
Supporting a wide operating temperature range of -40°C to +75°C and non-condensing humidity levels of 5% to 95% RH, alongside an IP30 protection rating, it reliably handles complex and harsh industrial environments—including high altitudes, high temperatures, and high pressures—to ensure stable equipment operation.
Tech Specs
Industrial Gateway Specifications Table
Hardware Specifications
| Category | TG-100 |
| HardwareSystem | |
| CPU | Dual-core, four-thread processor, 880 MHz |
| RAM | 128 MB, DDR3 |
| Flash | 32 MB |
| Network Interfaces | |
| Ethernet Ports | 2 x 10 / 100Mbps |
| Cellular Network | 4G LTE: Cat1 / Cat4 / Cat6 |
| WAN | 1 x WAN 10 / 100Mbps |
| LAN | 1 x LAN 10 / 100Mbps |
| SIM Slot | Dual SIM / Dual eSIM / 1× SIM + 1× eSIM |
| Antenna | SMA male (external thread, inner hole); Antenna Ports: 2 pcs |
| Physical Interfaces | |
| Grounding Terminal | 1 × Grounding Screw |
| Status Indicators | 4 pcs |
| Reset Button | 1 pc |
| Industrial Interfaces | |
| Serial Ports | 1 x RS485 / 1 x RS232, 3kV high-voltage isolation |
| Wi-Fi Wireless Network / WLAN | |
| Wi-Fi Frequency | 2.4GHz |
| Protocol Standards | Wi-Fi 4: 802.11b/g/n |
| Max. Transmission Rate | N300 |
| Data Rate | 802.11b/g/n: Up to 300Mbps |
| Transmit Power | 802.11b: 16dBm ±2dBm (11Mbps); 802.11g: 16dBm ±2dBm (54Mbps); 802.11n@2.4GHz: 16dBm ±2dBm (HT20 MCS7); 802.11n@2.4GHz: 16dBm ±2dBm (HT40 MCS7) |
| Transmission Distance | Line-of-sight ≤ 100 meters (actual distance depends on the on-site environment) |
| Power Supply | |
| Power Interface | DC power interface: 1 (DC2.1) |
| Input Voltage Range | DC power supply: 12–36V; supports reverse polarity protection |
| PoE (Optional) | Supports PoE power supply; compatible with IEEE 802.3af / IEEE 802.3at (PoE+) standards |
| Standby Power | 120mA–200mA @12V |
| Operating Power | 150mA–320mA @12V |
| Peak Power | 320mA @12V |
| Environmental Conditions | |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Temperature | -40°C to +80°C |
| Mechanical Specifications | |
| Product Dimensions | 150 × 115 × 35 mm (including antenna connectors) |
| Protection Rating | IP30 |
| Housing | Metal housing |
| Mounting Method | DIN-rail / Wall-mount |
| Cooling Method | Fanless cooling |
| Product Weight | 450 g |
| Reliability | |
| Shock | IEC60068-2-27 |
| Vibration | IEC60068-2-6 |
| Drop | IEC60068-2-32 |
| Certifications and Standards | |
| Regulatory Certification | CE, RoHS |
| EMC Standards | EN 55032; EN 55035; EN IEC 61000-6-3:2021; EN IEC 61000-6-1:2019; EN 301489-1; EN 301489-17; EN 301 489-52 |
| RF Standards | EN300328; EN301893; EN301511; EN301908-1/-2/-13 |
| SAR+Safety | EN50665; EN IEC62368-1 |
| Cyber | EN18031-1; EN18031-2 |
| ESD (Electrostatic Discharge) | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| Burst (EFT) | EN 61000-4-4:2012 |
| Surge | EN 61000-4-5:2014 + A1:2017 (Ethernet ports) |
| Conducted Immunity | EN 61000-4-6:2014 |
| Oscillatory Waves Immunity | EN61000-4-12, level 3 |
| Magnetic Field Immunity | EN61000-4-8, Horizontal/Vertical 400A/m (>level 2) |
Software Specifications
| Category | TG-100 |
| Industrial Protocols and Data Capabilities | |
| Industrial Protocols | Includes Modbus RTU, Modbus TCP, BACnet, Mbus, OPC UA, and various other protocols |
| Modbus | Modbus RTU, Modbus TCP |
| Industrial Device Protocols | ProfiNet, EtherCat, EtherNet (optional) |
| BACnet | BACnet |
| OPC UA | OPC UA |
| Electricity Meter Protocols | DLT 645-2007, IEC 1107, IEC 61850, IEC 62056-21, DLMS |
| DN3 | Supported modes: Station, Outstation; Connection: TCP |
| DLMS/COSEM | DLMS |
| Modbus Custom Registers | Modbus TCP custom register module requests, capable of reading/writing files within the router, extending Modbus TCP client functionality |
| Supported Data Formats | INT/UINT (8/16/32-bit), 32-bit Float, HEX, ASCII; supports MSB/LSB and byte order conversion (ABCD/DCBA/CDAB/BADC) |
| DTU Function | Supports TCP/UDP transparent transmission; supports Modbus RTU to Modbus TCP conversion; supports DCTCP/DCUDP modes |
| Data to Server | HTTP(S)/MQTT/Azure MQTT; multi-source data reporting; min 1s interval; Lua scripting |
| Modbus / MQTT Gateway | Allows sending commands to a Modbus Server via an MQTT Broker and receiving data |
| API / Web API | Supports network Web API; API endpoints for retrieving or changing data |
| Networking Capabilities | |
| Network Access | 2G/3G/4G cellular network (or VPDN private network) |
| Access Authentication | Supports CHAP/PAP authentication |
| LAN Protocols | ARP, Ethernet |
| WAN Protocols | PPP, PPPoE, DHCP; TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE |
| Network Protocols | UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT |
| Routing | Static routing, OSPF dynamic routing |
| NAT | DMZ, NAT, NAT-T, NAT64 (listed under Firewall) |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases; supports wildcard MAC addresses |
| Network Backup / Failover | Wi-Fi WAN, VRRP, and wired connection options; all can be used as automatic failover solutions |
| QoS | Traffic priority queuing based on source/destination, service, protocol, or port; WMM, 802.11 |
| IP Applications | Supports Ping, Traceroute, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| DNS/DDNS | Supports DoH (DNS over HTTPS); multiple DDNS service provider configurations and manual customizatio |
| Wi‑Fi | |
| Wireless Modes | Wi‑Fi 4: 802.11b/g/n; supports Access Point (AP) and Station (STA) modes |
| Wi‑Fi Security | WPA2‑Enterprise/PSK, WPA‑EAP/PSK, WPA3‑SAE/EAP, OWE; AES‑CCMP, TKIP, client separation, EAP‑TLS, 802.11w PMF, etc |
| Maximum Wi‑Fi Clients | Wi‑Fi 4: up to 30 simultaneous connections |
| Hotspot Relay | Forwards the Wi‑Fi hotspot login page to subsequent connected devices (captive portal relay) |
| SSID / ESSID | SSID stealth mode; MAC‑address‑based access control |
| Operating Modes | Supports AP, Client, and WDS (Wireless Distribution System) modes |
| Security Features | Open system, Shared key, WPA/WPA2 authentication; WEP/TKIP/AES encryption |
| Network Security & VPN | |
| Network Protection Security | Port forwarding / traffic rules / custom TTL; WebUI/CLI firewall configuration; DMZ, NAT/NAT‑T/NAT64 |
| Data Protection Security | Supports VPN functions including PPTP, L2TP, GRE, IPSEC VPN, DMVPN, OPENVPN, WireGuard, etc.; supports digital certificate CA |
| Authentication | Pre-shared keys, X.509 certs, TACACS+, RADIUS (built-in/external), IP/time/login blocking, random password generator |
| Attack Protection | DDoS protection (SYN flood, SSH, HTTP/HTTPS); Port scanning protection (SYN-FIN, SYN-RST, X-mas, NULL, FIN) |
| VLAN | Port‑based and Tag‑based VLAN isolation |
| Access Control | Flexible access control for SSH, Web UI, CLI, and Telnet |
| Web Filter | Blacklist for unwanted websites; whitelist for allowed websites only |
| Certificate Management | Certificate generation tools; can create CA, server, client, Let's Encrypt, and SCEP certificates |
| OpenVPN | Supports multiple clients and one server simultaneously; supports 27 encryption methods |
| IPsec | XFRM, IKEv1, IKEv2; 14 encryption methods for IPsec: 3DES, DES, AES128, AES192, AES256, AES128/192/256 GCM8/12/16 |
| WireGuard | Supports WireGuard VPN client and server |
| GRE | Supports GRE tunnels, GRE over IPsec tunnels |
| PPTP / L2TP | Client and server instances can run simultaneously; supports L2TPv3, L2TP over IPsec |
| DMVPN | Scalable IPsec VPN; supports Phase 2, Phase 3, and Dual Hub |
| SSTP | Supports SSTP client instance |
| ZeroTier | Supports ZeroTier VPN client |
| Stunnel | Adds TLS encryption to existing clients and servers via proxy |
| Tinc | Encryption, authentication, and compression within tunnels; supports client and server modes |
| EoIP | Ethernet over IP tunnel based on GRE RFC 1701 |
| Management & Platform | |
| Configuration Methods | Web UI, CLI, SSH, JSON‑RPC, TesproOS, etc |
| Cloud & IoT Platform | Supports Google, Huawei, Amazon, Microsoft Azure, iStarOS, Azure IoT Hub, other third-party cloud platforms, and custom clouds |
| FOTA | Firmware updates from server with automatic notification |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| MQTT | MQTT Broker, MQTT Publisher |
| JSON‑RPC | HTTP/HTTPS‑based management API |
| SSH | SSH (v1, v2) |
| Upgrade Methods | FOTA; Web UI |
| Logging Functions | Event log, system log, kernel log |
| Alert Functions | Email message status alerts |
| On-Demand Activation | On‑demand dialing, data activation, SMS activation |
| Receives email message status alerts from various services | |
| Software System | |
| Operating System | TesproOS (Linux) |
| Supported Languages | Busybox shell, Lua, C, C++, Python |
| Development Tools | SDK package including build environment |
| Firmware Customization | Supports custom branded firmware and web page applications (colours, logos, etc.) |
| Package Management | Supports installation of additional software packages |
| Firmware & Configuration | |
| Web UI Upgrade | Update firmware from file, check for firmware on server, configuration file, configuration backup |
| FOTA Upgrade | Update firmware |
| Cloud Bulk Upgrade | Supports updating firmware/configurations of multiple devices at once via TesproOS system |
| Config-Preserved Upgrade | Update firmware without losing current configuration |
| Factory Reset | Full factory reset, restoring all system settings including IP address, PIN code, and user data |
| Environment & Reliability | |
| Hot Backup / VRRP | VRRP (listed under Network Backup) |
| Link Online Detection | Sends heartbeat packets for detection; automatically reconnects upon disconnection |
| Dual SIM Link Switching | Supports dual SIM or dual eSIM link switching |
| Built‑in Watchdog | Device self‑check technology; automatic self‑recovery from runtime faults |
Show All
Show Less
Product Details

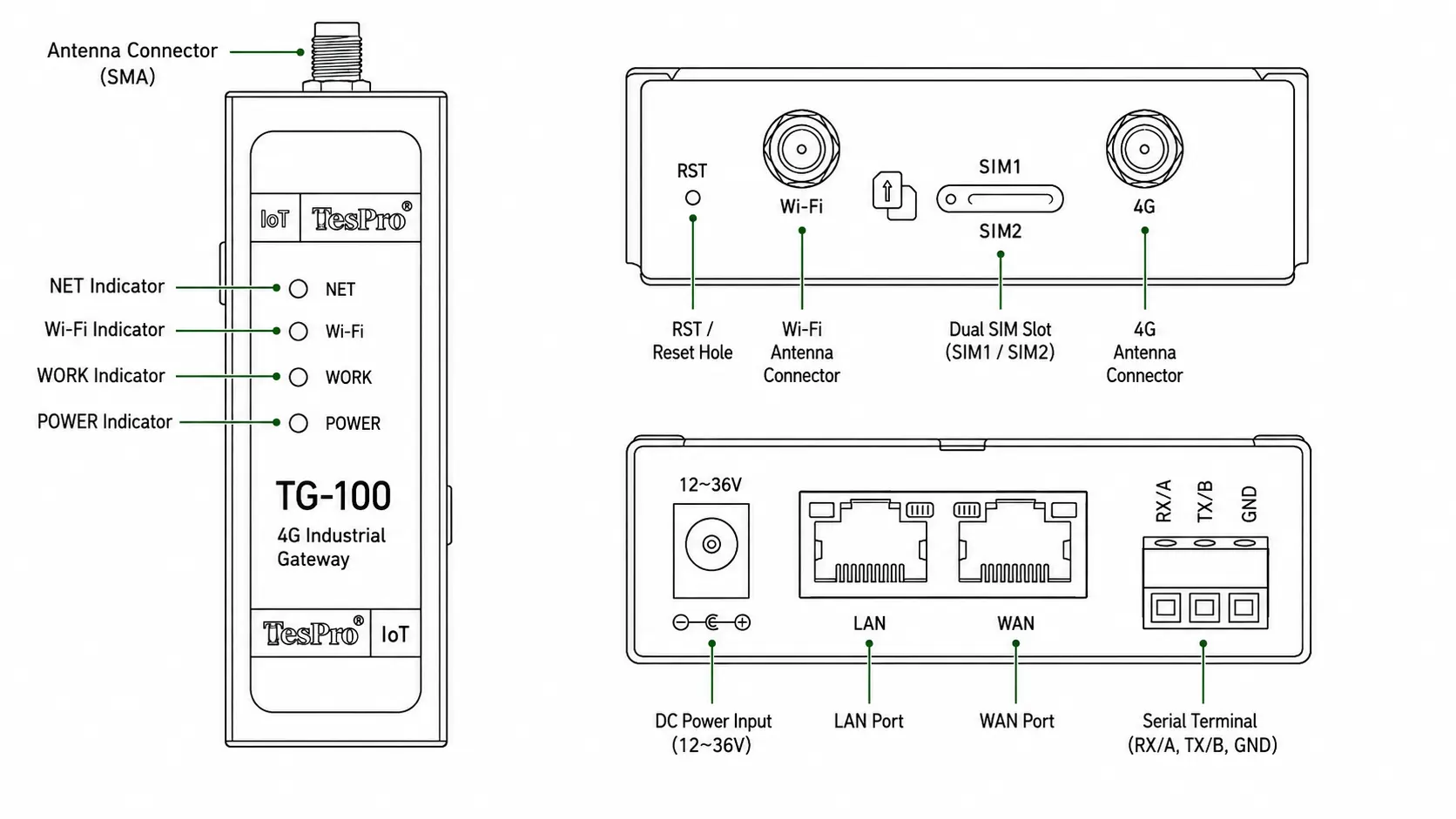

Interface Diagram

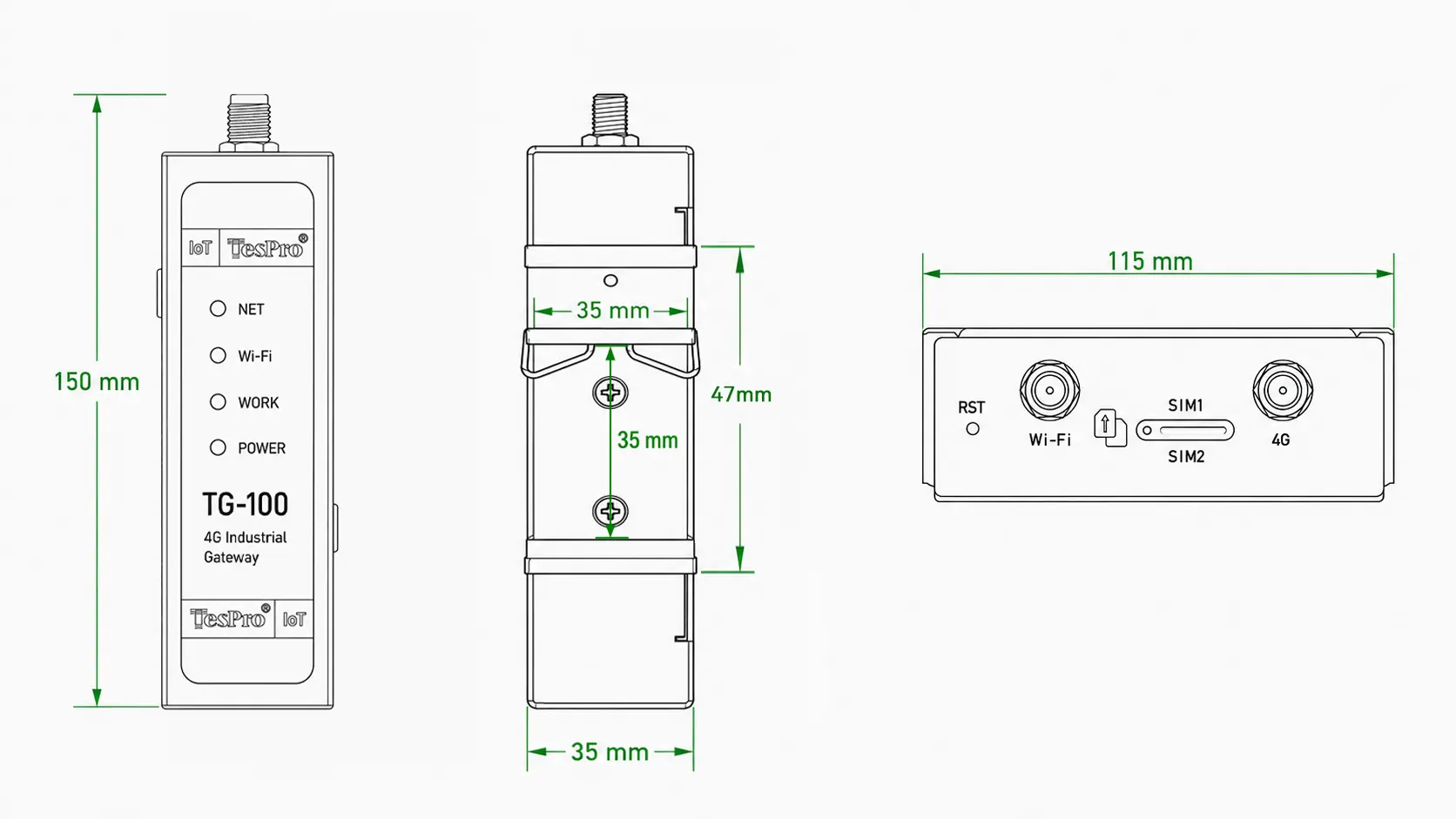

Dimensions Diagram

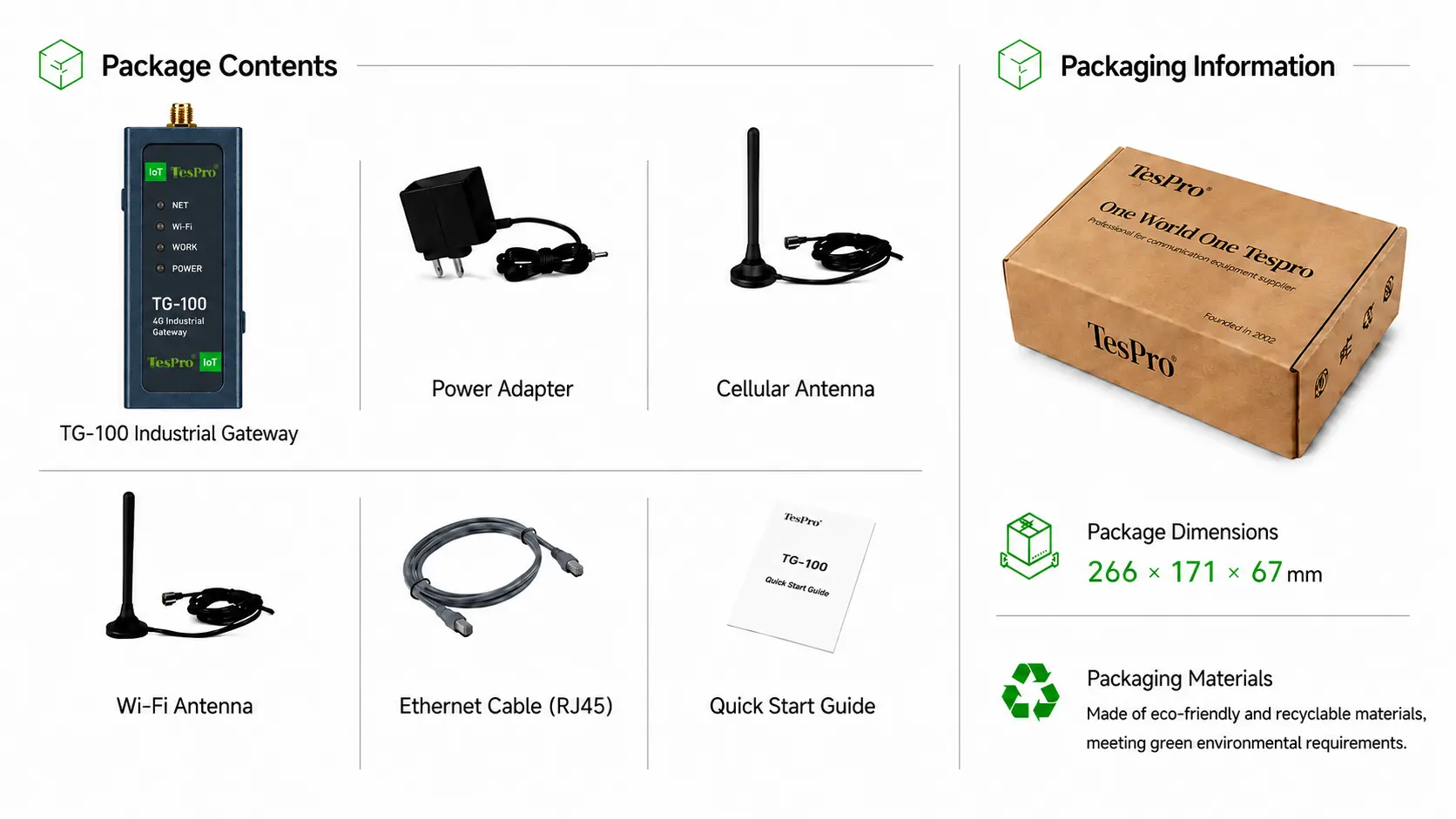

Accessories Diagram
Explore our Solutions
Industrial Gateway & Protocol Conversion Solutions
Delivering seamless Modbus/BACnet integration, real-time data acquisition, and secure remote management for industrial automation and smart energy projects
Download Materials
Frequently Asked Questions
To help you better understand our products' performance, compatibility, and usage, we’ve compiled answers to commonly asked questions. If your inquiry isn’t listed below, feel free to contact us directly for further assistance.
Contact Us
-
Can the TG-100 collect data from different types of field devices?
-
Yes. The TG-100 can connect to meters, PLCs, sensors, controllers, and other field devices through RS485, RS232, or CAN. It supports multiple industrial and metering protocols, allowing different devices to be integrated into one data acquisition system.
-
Can I choose RS485, RS232, or CAN according to my project?
-
Yes. The TG-100 supports flexible serial interface configurations, with RS485, RS232, or CAN available according to project requirements. The serial baud rate can be configured from 300 to 115200 bps.
-
How does the TG-100 separate local equipment from the upstream network?
-
The TG-100 provides one WAN port and one LAN port. The LAN port can connect local PLCs, HMIs, or other field devices, while the WAN port or cellular connection handles communication with cloud platforms or remote servers, helping separate field-side and uplink traffic.
-
Does the TG-100 support different data collection schedules?
-
Yes. The TG-100 supports real-time collection and reporting, interval-based collection, timed reporting, and customized collection methods. This allows the data acquisition strategy to be adjusted according to different applications.
-
Can the TG-100 convert field data and upload it directly to a cloud platform?
-
Yes. The TG-100 supports protocols such as Modbus, BACnet/IP, and BACnet/MSTP, together with TCP Client, UDP Client, MQTT Client, and transparent transmission modes. It can collect and process field data before forwarding it to cloud platforms or backend systems.
-
Does the TG-100 offer additional interfaces for local storage and external signals?
-
Yes. In addition to Ethernet and serial communication interfaces, the TG-100 provides 2 DI, 2 DO, USB 3.0, and a Micro SD card interface. Optional GNSS is also available for applications that require positioning information.
