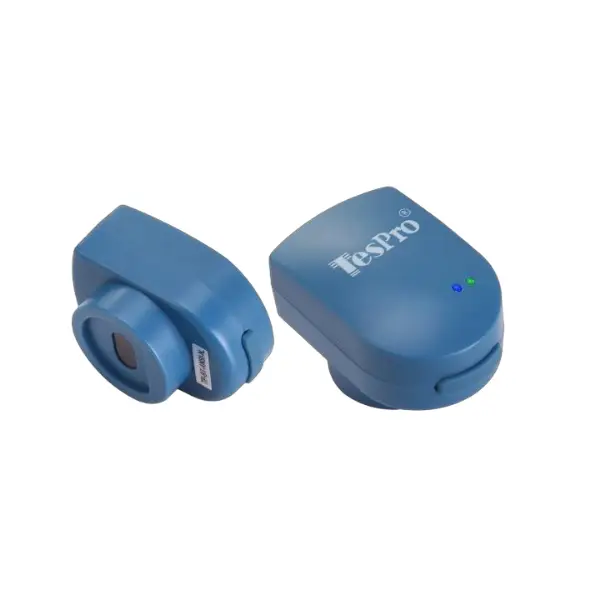

Bluetooth Optical Probe
Product ID: TP-BT
TP-BT is the latest series of Tespro China optical family, which is compatible with Bluetooth communications with Mobile Phone, PDA, PC and other devices. TP-BT has special capabilities that will use MCU, TP-BT has been made in a manner that a single BT probe could be utilized to be two.
-
Baud rate
300-115200bps
-
Bluetooth
Bluetooth 4.0 SPP+BLE
-
Time
~24 Hours Working、30 Days Standby
-
Charging
3 Hours-MiniUSB (Not Supported PD Fast Charge)
Get Free Quote Now
Datasheet Download
TP-BT Bluetooth Optical Probe Video
TP-BT Bluetooth Optical Probe video shows the video viewing of wireless meter reading, high speed data transfer, pairing of different devices, LED display, and application in practice by technicians working in the smart metering sites.
Features
Product Introduction
TP-BT is the latest trend of Tespro China optical family that will contain the Bluetooth communications with the Mobile Phone, PDA, PC and other devices. TP-BT features are unique and designed where it has MCU, TP-BT is designed in such a manner that one BT probe could be utilized as two. It is used as Bluetooth optical probe and ordinary Tespro USB connection optical probe.
Strong Compatibility
It has strong compatibility, fully compliant with different kinds of protocols, supports all kinds of devices, and is compatible with all brands of and types of meters.
Long Communication Endurance
It is characterised by long working capacity of communication, which is equipped with long life capacity of 3.7V / 1000 mAh rechargeable lithium battery and a meter reading of 1000 meters without recharge.
Fast Charging
The meter reading Bluetooth optical probe has high compatibility, long life cycle and quick charge ability, which gives you an opportunity to utilize the probe at any given moment or place.
Excellent Performance in Harsh Environment
It provides very good services in severe conditions. The environment does not require any worrying since it operates efficiently. It will include the highest quality of - level enclosure material, silicone protection, a complete package of accessories, and a safety strap holder to avoid accidents during falls.
Tech Specs
Metering Equipment Technical Data
| Category | Items | Features |
| Communication | Communication Interface | Bluetooth 4.0 SPP+BLE |
| Supported Standard | IEC 62056-21 / ANSI / ANSI-Type2 | |
| Computer Communication Port | USB 2.0 / MiniUSB / USB-OTG | |
| Maximum Data Rate | 57600 in normal and max.115200 available | |
| USB Connection Optical Probe | Supported(Add Data Cable) | |
| Transparent Communication Mode | IEC 62056-21 Mode C / Mode E / User Mode ANSI C12.18 / ANSI C12.18-2006 type2 |
|
| Smart Communication Mode | There is (IEC 62056-21 Mode C / Mode E) | |
| Maximum Frame Length | SPP-1024 / BLE 20 bytes | |
| Firmware And Configuration Update | Yes (with USB or Bluetooth ) | |
| Power & Battery | Battery Feature | 3,7 V / 800 mAh |
| Battery Charging Time | 3 Hours-MiniUSB (Not Supported PD Fast Charge) | |
| Duration of communication | ~24 Hours | |
| Standby Time | ~ 30 Days | |
| Hardware & Controls | Sensor Light Wave Length | ~ 900 nm. |
| Number Of Keys | 1 Keys (Power) | |
| LED Indicators | 3 LEDs (Power / Charge / Communication ) | |
| Magnet Holding Power | N40 / N52 (Optional ) | |
| Mechanical & Enclosure | Diameter & Height | 31,5 mm Diameter / 33,5 mm Height |
| Weight | 65 gr | |
| Enclosure Material | ABS + PC | |
| Silicone Protection | Yes ( For option ) | |
| Environmental | Working Environment | -40℃ …… +70℃ |
| Physical Specifications | Protection Class | IP 54 |
| Accessory | Safety Strap | Yes ( For option ) |

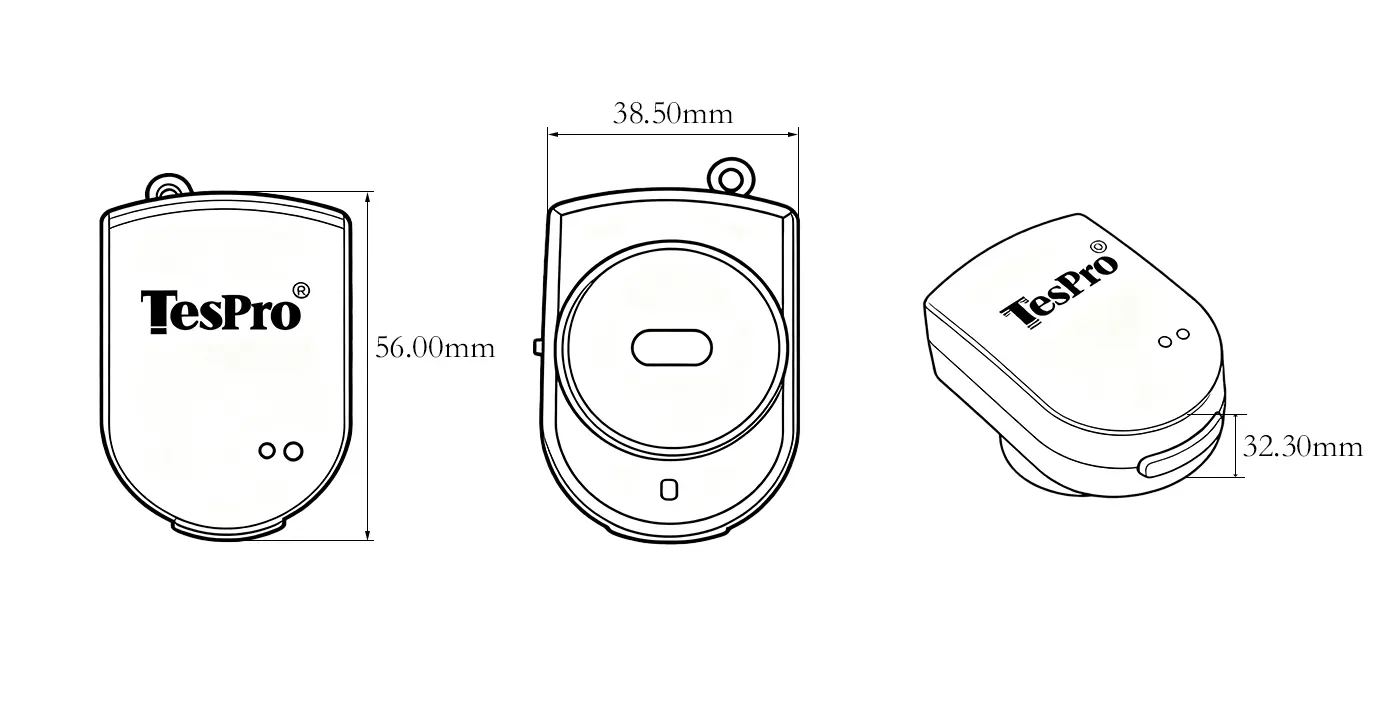

Product Dimensions
Explore our Solutions
Reliable Optical Communication for Smart Metering
ABA systems of modern AMI demand consistent and reliable metrical data capturing. Reading of meters manually was tedious and subject to mistakes.
The optical probes of Tespro, such as TP-BT and USB series, allowed automatic access to data through optical ports, and supported many types of meters and protocols. Bluetooth and USB models were flexible both in the field and desktop.
Case
Product Case
June 10, 2025 – Poland – A leading Polish energy service provider has procured 148 TP-BT Bluetooth optical probes directly from our facility. These devices will be deployed nationwide for smart meter data collection and on-site verification across urban and rural utility networks, specifically designed to capture electricity, water, and gas meter readings.
This "operations game-changer" is reshaping traditional field workflows by replacing outdated manual logging with automated wireless data collection.Technicians no longer need to haul heavy equipment or juggle paper forms for meter reading: all data is digitally captured via Bluetooth and seamlessly synced to analysis software.
This not only eliminates transcription errors entirely but also elevates measurement accuracy to unprecedented levels, turning cumbersome on-site tasks into streamlined, hassle-free operations.
Field data shows remarkable efficiency gains: deployment is now 30% faster, meter reading errors have been cut by 35%, and maintenance expenses dropped 22%.The client specifically praised the system's plug-and-play simplicity and consistent performance in daily use, confirming they will standardize these probes for all upcoming field projects.
