Long-term optical-probe reliability depends on communication compatibility and on magnetic positioning, optical alignment, enclosure, cable flexing, strain relief and connectors. A weak magnet may shift, while an excessively strong one may hinder operation or interact with the meter design. Test attachment, rotation, pulling and repeated insertion on the target meter.
Key Takeaways
• The goal of magnet strength is stable alignment, not maximum force.
• Cable failures often occur at the probe tail and connector strain points.
• Laboratory durability tests should reproduce the real operating method.
Evaluate magnet and optical position together
After attachment, the transmit and receive windows should remain aligned and resist minor pull or rotation. Different IEC or ANSI geometries require different mechanical designs.
Cable and strain relief determine life
Flexibility, shielding, jacket, bend radius and tail strain relief matter in frequent use. Excessive cable length can also increase tangling and damage.
Match connectors to the environment
USB, Type-C, RS232 and other interfaces differ in insertion cycles, locking, orientation and host protection. Mobile field work and fixed benches may require different choices.
How Tespro Fits

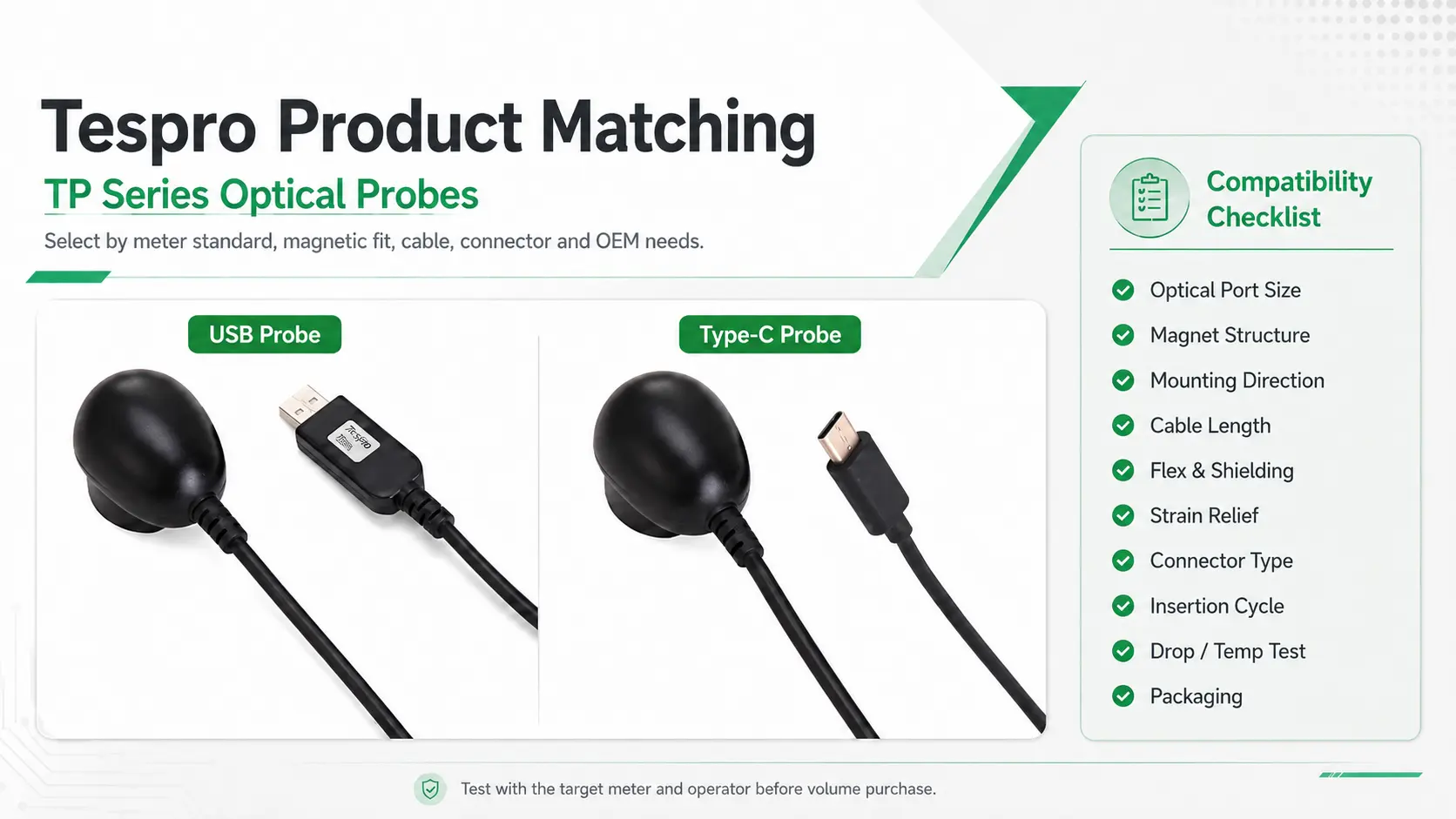

Tespro offers multiple optical and calibration-probe configurations that can be evaluated by meter standard, magnetic design, cable, connector and OEM requirements. Before volume purchase, test attachment, flexing and insertion with the target meter and operators.
Compatibility and Selection Checklist
✓ Meter-port size, magnetic ring and surface
✓ Attachment direction, rotation and pull
✓ Cable length, flexibility, shielding and bending
✓ Tail strain relief and enclosure material
✓ Connector type and insertion frequency
✓ Drop, temperature, repeated use and packaging
Frequently Asked Questions
Q: Does a stronger magnet guarantee communication?
A: No. Optical alignment, orientation, protocol and software still determine communication.
Q: Is a thicker cable always more durable?
A: No. A stiff cable can increase handling stress. Flexibility, shielding and strength must be balanced.
Q: Is connector insertion testing enough?
A: No. Also test attachment, pulling, bending, rotation, temperature and the real workflow.
