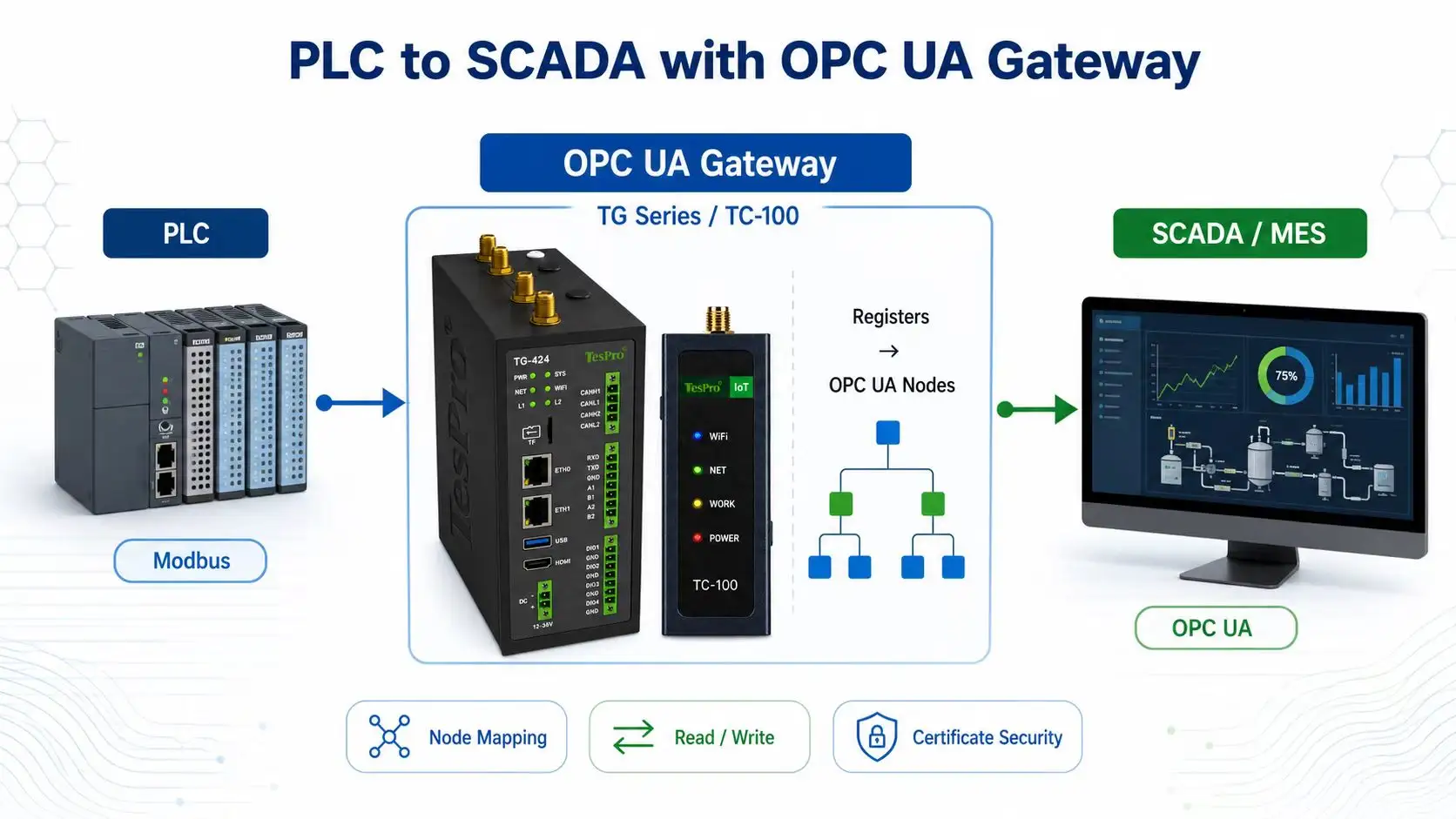

An OPC UA gateway reads Modbus, PLC or other field protocols and maps registers and variables into OPC UA nodes with data type, units, quality, timestamps and access control. Selection must also confirm client count, subscription interval, certificates, security policy, write permissions and exception handling.
Key Takeaways
• OPC UA is more than a protocol rename; it includes information modeling and secure sessions.
• Node naming and data types should match how SCADA or MES consumes the data.
• Write functions require permissions, scope and failure handling.
Build the node model from the register map
Define NodeId, BrowseName, data type, unit, scaling, quality and timestamp source. Avoid exposing raw addresses as an unmaintainable node structure.
Align security before integration
Client and server must agree on endpoint, certificate trust, security policy, user authentication, anonymous access and port. Certificate renewal also needs a lifecycle plan.
Validate subscriptions, not only point count
Client count, sampling, publishing interval, deadband, writes and network delay determine load. Test with the target SCADA.
How Tespro Fits
Tespro TG Series gateways can be evaluated for multi-protocol acquisition, data modeling and OPC UA publishing. TC-100 can be evaluated for focused bridging among confirmed BACnet, Modbus and OPC UA combinations. Select by point count, clients, buffering, edge logic and interface complexity.
Compatibility and Selection Checklist
✓ PLC/device protocol and register map
✓ Node naming, types, units and timestamps
✓ Client count and subscription interval
✓ Certificates, security policy and authentication
✓ Read/write permissions and exceptions
✓ Performance, buffering and outage behavior
Frequently Asked Questions
Q: Will an OPC UA gateway generate every node automatically?
A: Templates may help, but a complete register map, data types and naming rules are still required.
Q: Can OPC UA security be disabled for easier testing?
A: A laboratory may allow temporary testing under policy, but production should use suitable certificates and access control.
Q: Should the project use TC-100 or a TG gateway?
A: Use TC-100 for focused protocol bridging; use the TG Series for multiple devices, buffering, rules and multiple platforms.
