The main challenge in building automation is not cabling but the difference among BACnet objects, Modbus registers and platform tags. A gateway or protocol converter must define source and target protocols, addresses, data types, units, scaling, read/write direction and refresh rate, then validate with real devices.
Key Takeaways
• Matching protocol names do not guarantee matching objects or tags.
• Monitoring and write control have different safety requirements.
• Simple protocol bridging and complex edge processing require different product types.
Define the business boundary first
Is the project only reading HVAC and meter data, or also writing setpoints, coordinating alarms or controlling across systems? Writes require permissions, timeout, failure state and manual override.
Create a maintainable point map
The map should include name, object/register, data type, unit, scaling, read/write, refresh rate, quality and description. Naming should match the BMS or energy platform.
Choose a converter or an edge gateway

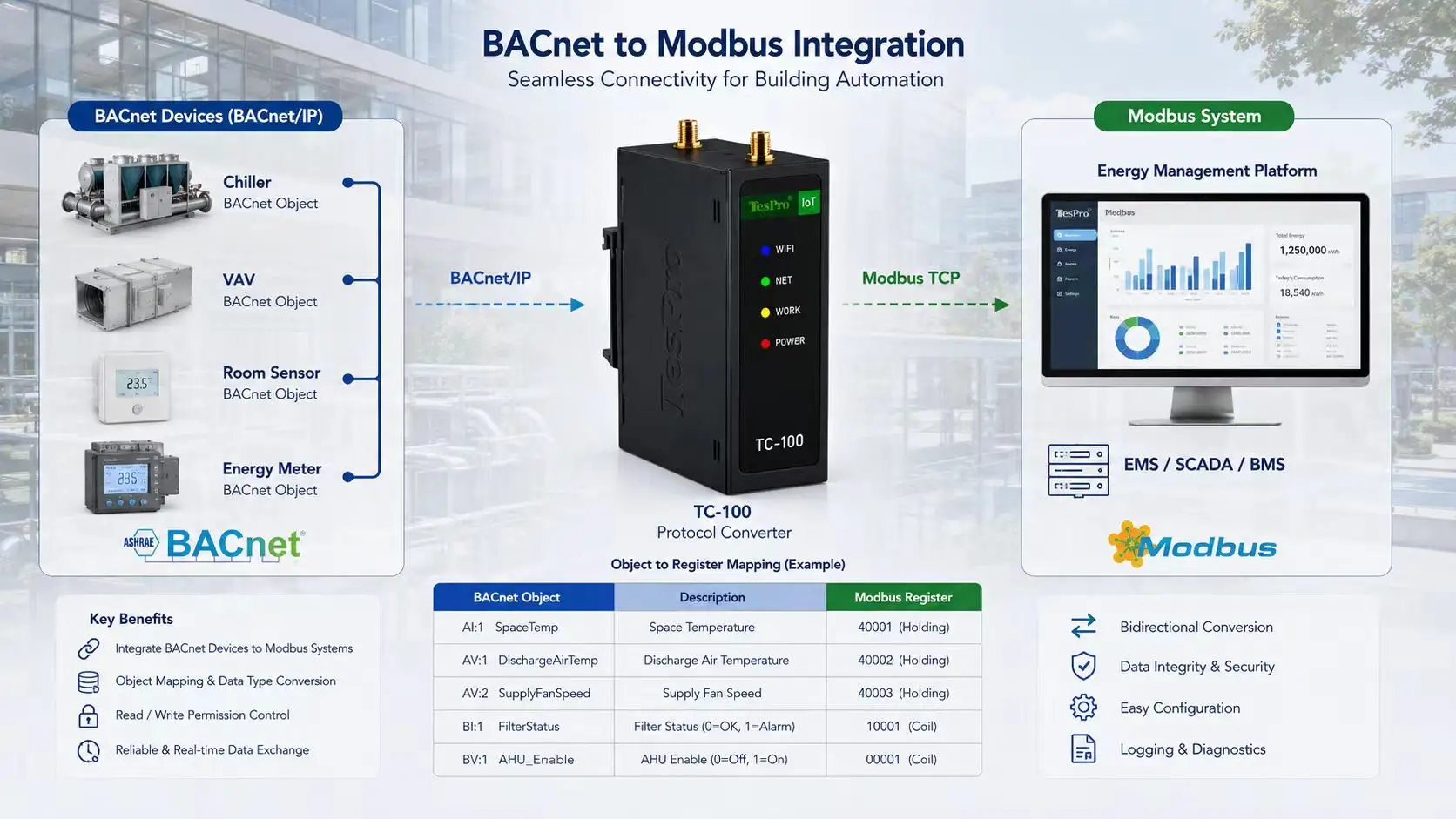

TC-100 can fit focused bridging among confirmed BACnet, Modbus and OPC UA combinations. The TG Series is more suitable for multi-device acquisition, buffering, rules, multiple platforms and edge applications.
How Tespro Fits
Tespro TC-100 can be evaluated for focused interoperability among confirmed BACnet, Modbus and OPC UA systems, while TG Series gateways can handle more complex acquisition, data modeling, local buffering and platform connections. Select by protocol direction, interfaces, point count and write-control requirements.
Compatibility and Selection Checklist
✓ BACnet/IP or MS/TP and object list
✓ Modbus RTU/TCP register map
✓ Target BMS, SCADA or energy platform
✓ Data types, units, scaling and refresh
✓ Read-only, write and safety interlocks
✓ Sample devices, packets and acceptance cases
Frequently Asked Questions
Q: Can an industrial gateway replace a BMS?
A: No. The gateway provides connectivity and conversion, while the BMS provides visualization, alarms, history, workflows and control management.
Q: Does BACnet-to-Modbus conversion add delay?
A: Yes. Polling, parsing, mapping and network transport add latency and should be evaluated against control requirements.
Q: Can conversion be completed without a point map?
A: It is high risk. Object or register information, communication settings and real-device tests are normally required.
